Запчасти Case IH 7240 (9-144) - MIRROR AND MONITOR MOUNTING KITS (09) - CHASSIS/ATTACHMENTS

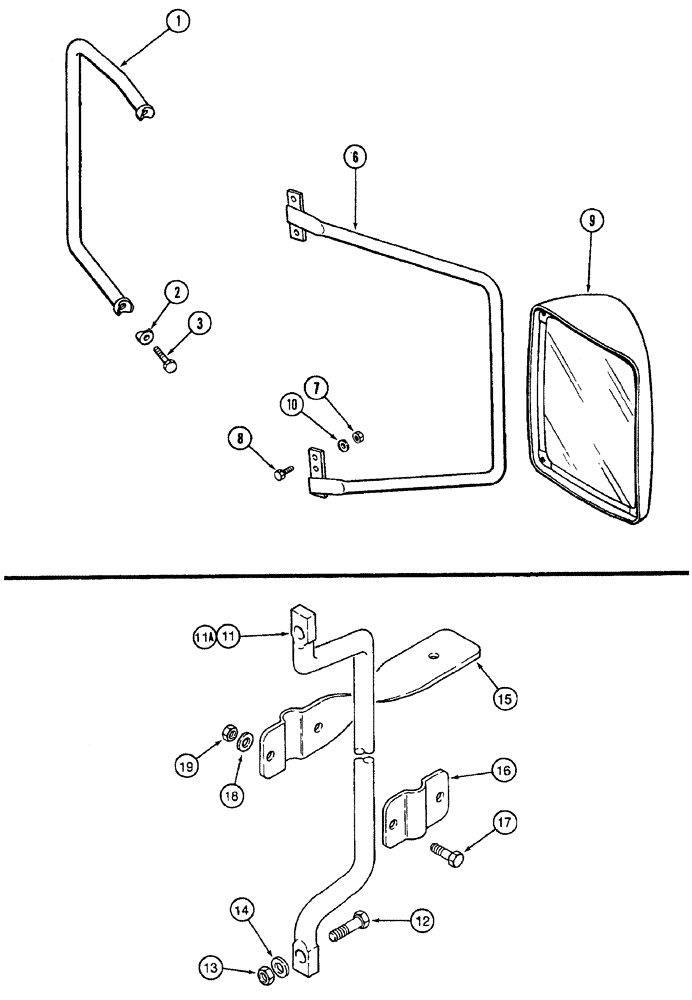

Схема запчастей Case IH 7240 - (9-144) - MIRROR AND MONITOR MOUNTING KITS (09) - CHASSIS/ATTACHMENTS
11a
16
8
9
13
10
2
11
15
12
7
1
3
14
19
18
6
17

Артикул

Название

Примечание

Количество

184588A1

MIRROR

KIT - rear view, replaces A67886 mirror kit

1шт.

1

97158C1

SUPPORT

BRACKET - mirror, left

1шт.

2

97161C1

WASHER

special, left

2шт.

3

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

2шт.

6

1348546C1

SUPPORT

BRACKET - mirror, right

1шт.

7

832-10406

NUT,M6 x 1, Cl 8

4шт.

8

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

Replaces 20 mm long bolt used in A67886 mirror kit

4шт.

9

135371A1

MIRROR

rear view, replaces 97165C1 mirror

2шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

If Used

4шт.

104470A1

PACKAGE

MOUNTING KIT - monitor bar, two bracket, order from Machinery Price List

1шт.

11

103212A1

BAR

monitor mounting, 356 mm (14-1/64 inch) long

1шт.

12

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

13

825-1410

NUT,M10, Cl 8

2шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

15

103213A1

HOLDER

BRACKET - mounting, monitor

2шт.

16

103226A1

CLAMP

mounting bracket

2шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

104471A1

PACKAGE

MOUNTING KIT - monitor bar, three bracket, order from Machinery Price List

1шт.

11

104466A1

BAR

monitor mounting, 556 mm (21-7/8 inch) long

1шт.

12

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

13

825-1410

NUT,M10, Cl 8

2шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

15

103213A1

HOLDER

BRACKET - mounting, monitor

3шт.

16

103226A1

CLAMP

mounting bracket

3шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

Выбрано товаров: 29
