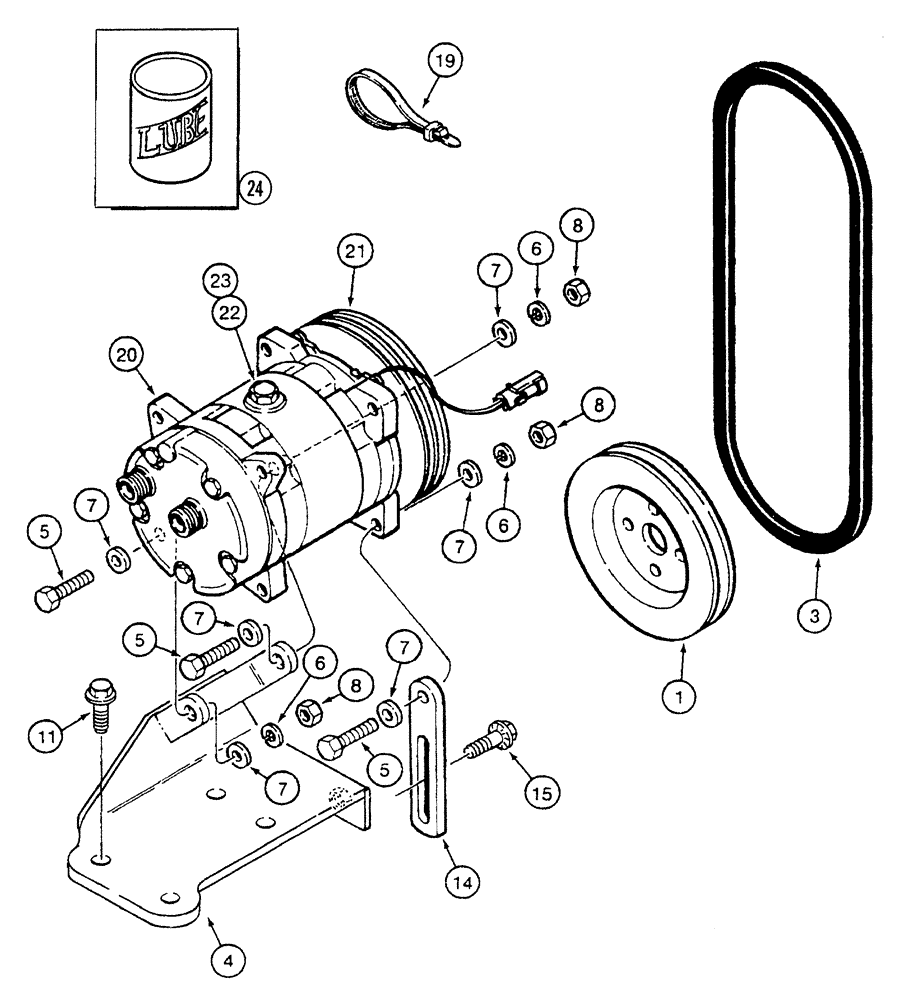

Запчасти Case IH 7240 (9-142) - AIR CONDITIONING, COMPRESSOR MOUNTING AND DRIVE, TRACTOR PIN JJA0064978 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

A189155

PULLEY

compressor drive

1шт.

3

131403C1

V-BELT,0.50" W x 38.50" L

Drive, Compressor

1шт.

4

237872A1

BRACKET

mounting, compressor, replaces 177264A1 bracket

1шт.

5

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

6

892-11010

LOCK WASHER,M10

3шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

8

825-1410

NUT,M10, Cl 8

3шт.

11

905-10025

BOLT,Hex Flg, M10 x 25mm

5шт.

14

84716C1

SUPPORT

STRAP - adjusting

1шт.

15

905-10025

BOLT,Hex Flg, M10 x 25mm

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

2шт.

1999755C2

COMPRESSOR

ASSEMBLY - air conditioning

1шт.

86993462R

REMAN-COMPRESSOR

7230, 7240, 7250 all TRACTOR PIN JJA0064978 AND AFTER (10/93-12/96); Reman For New P/N 1999755C2

1шт.

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

20

NSS

NOT SOLD SEPARAT

COMPRESSOR - air conditioning

1шт.

21

135324A1

CLUTCH

ASSEMBLY - compressor

1шт.

22

A49667

PLUG

hex, oil filler

1шт.

23

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

1шт.

24

139673A1

OIL

lube, a.c. compressor, 250 cc, used with HFC 134A refrigerant

1шт.

25

139696A1

OIL

lube, a.c. compressor, six pack, 250 cc, used with HFC 134A refrigerant, not shown

1шт.
