Запчасти Case IH 7240 (9-124) - CAB FLOOR MATS (09) - CHASSIS/ATTACHMENTS

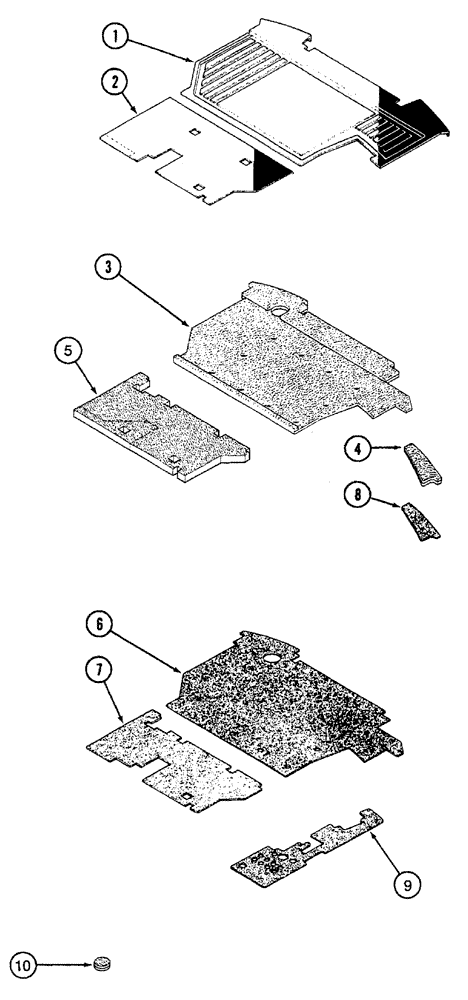

Схема запчастей Case IH 7240 - (9-124) - CAB FLOOR MATS (09) - CHASSIS/ATTACHMENTS
8
4
3
6
10
7
5
2
1
9

Артикул

Название

Примечание

Количество

1

1340289C1

FLOOR MAT

front, foot throttle holes must be manually cut out

1шт.

2

104596A1

FLOOR MAT

rear

1шт.

3

97118C2

PAD

floor mat, front

1шт.

4

97122C1

PAD

floor mat, front corner

1шт.

5

104597A1

FLOOR MAT

PAD - rear

1шт.

6

1971248C1

LARGE PLATE

PLATE, LARGE BARRIER - noise, front

1шт.

7

104599A1

NOISE PROTECTION

BARRIER - noise, rear

1шт.

8

1971249C1

LARGE PLATE

PLATE, LARGE BARRIER - noise, front corner

1шт.

9

104600A1

LARGE PLATE

PLATE, LARGE BARRIER - noise, right console

1шт.

10

1977905C2

PAD

front mount cover

2шт.

Выбрано товаров: 10
