Запчасти Case IH 7240 (9-122) - CAB, WINDSHIELD, DOOR AND LEFT REAR WINDOW (09) - CHASSIS/ATTACHMENTS

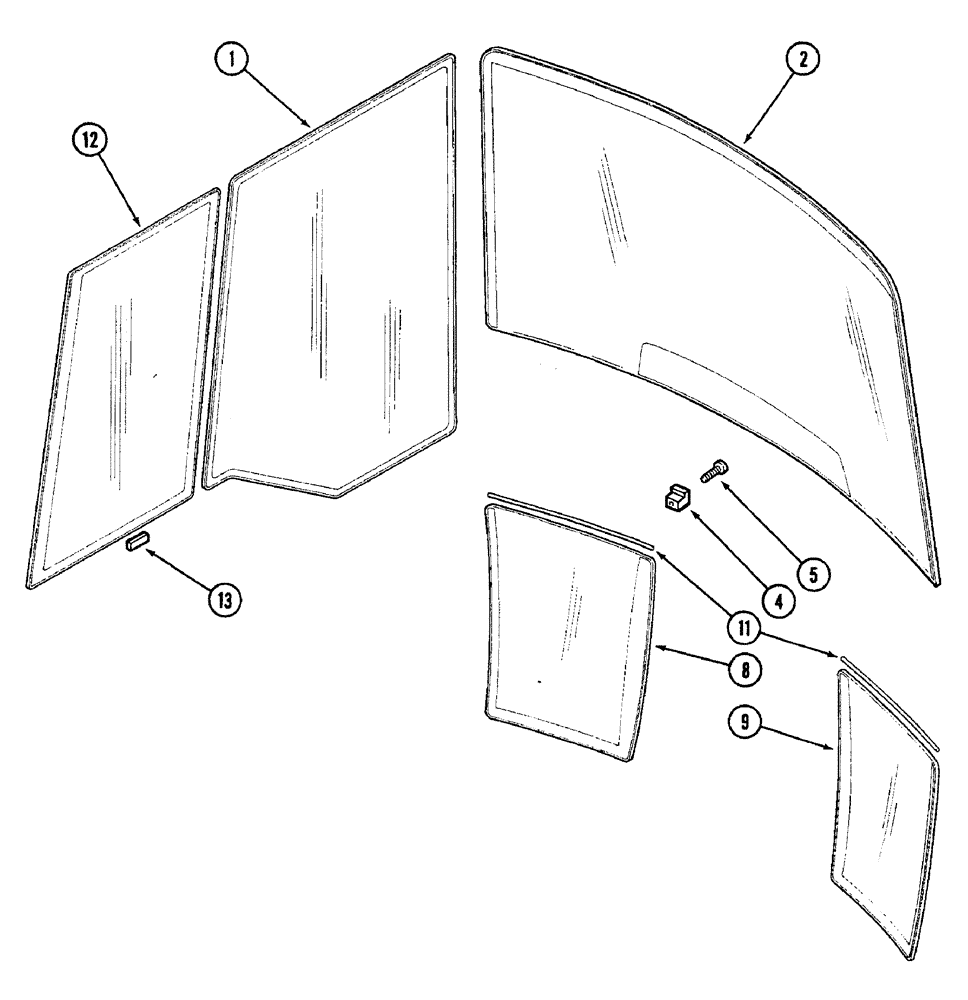

Схема запчастей Case IH 7240 - (9-122) - CAB, WINDSHIELD, DOOR AND LEFT REAR WINDOW (09) - CHASSIS/ATTACHMENTS
12
13
11
5
1
2
9
4
8

Артикул

Название

Примечание

Количество

1

1340194C1

GLASS

window, door

1шт.

2

1340195C2

GLASS

windshield, upper

1шт.

4

96902C1

SPACER

windshield, upper

2шт.

5

262-15516

SELF-TAP SCREW,Hex Pan Hd, #10 x 1"

2шт.

8

1340196C1

GLASS

lower, windshield, left

1шт.

9

1340197C1

GLASS

lower, windshield, right

1шт.

11

1981771C2

SEAL,380mm L

windshield

2шт.

12

1340200C1

GLASS,CAB

window, left rear side

1шт.

13

97268C1

SPACER

bonded glass, adhesive back, door window

4шт.

14

B94328

FLUID

SEALANT - tube, 89 ml (3 oz), not shown

1шт.

Выбрано товаров: 10
