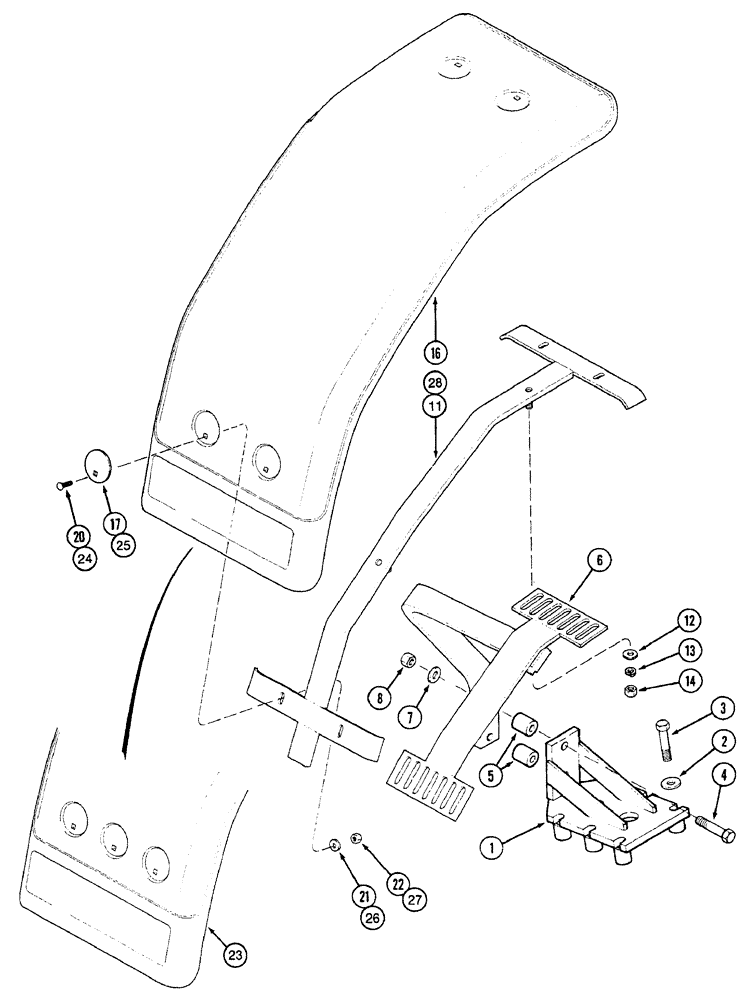

Запчасти Case IH 7240 (9-044) - FRONT FENDERS, MFD TRACTOR (09) - CHASSIS/ATTACHMENTS

1340682C1

FENDER

ATTACHMENT KIT - MFD front fenders, order from Machinery Price List, includes items 1-22

1шт.

1

1 340591 C1

BRACKET - fender mounting

2шт.

2

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch

8шт.

3

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

8шт.

4

814-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 8.8

4шт.

5

1340558C1

SPACER

fender brace

4шт.

6

1340675C1

SUPPORT

BRACE - fender support, right (Shown)

1шт.

6

1340676C1

SUPPORT

BRACE - fender support, left

1шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

8

832-10416

NUT,M16 x 2, Cl 8

4шт.

11

1 340671 C1

SUPPORT - fender, inner

2шт.

12

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

4шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

14

425-108

NUT,1/2" - 13, Gr 5

4шт.

16

1340664C1

FENDER

front wheel, MFD tractor

2шт.

17

1340559C2

SQ HOLE WASHER,8.71mm ID x 63.5mm OD x 4.76mm Thk

square hole, 2-1/2 inch

8шт.

20

1340640C1

BOLT

carriage, 5/16 NC x 1-1/4 inch

8шт.

21

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

8шт.

22

425-105

NUT,5/16"-18, G5

8шт.

139912A1

PACKAGE

ATTACHMENT KIT - MFD wide front fenders, order from Machinery Price List, includes items 1-8 and 12-14

1шт.

23

122212A1

FENDER

front wheel, MFD tractor with wide tires (184-26R2 or 184-28R1)

2шт.

24

1340640C1

BOLT

carriage, 5/16 NC x 1-1/4 inch, wide

12шт.

25

1340559C2

SQ HOLE WASHER,8.71mm ID x 63.5mm OD x 4.76mm Thk

square hole, 2-1/2 inch, wide

12шт.

26

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

12шт.

27

425-105

NUT,5/16"-18, G5

Wide

12шт.

28

136309A1

SUPPORT

fender, inner, wide, not shown

2шт.
