Запчасти Case IH 7240 (8-010) - PTO VALVE ASSEMBLY, PRIOR TO TRACTOR PIN JJA0064978 (08) - HYDRAULICS

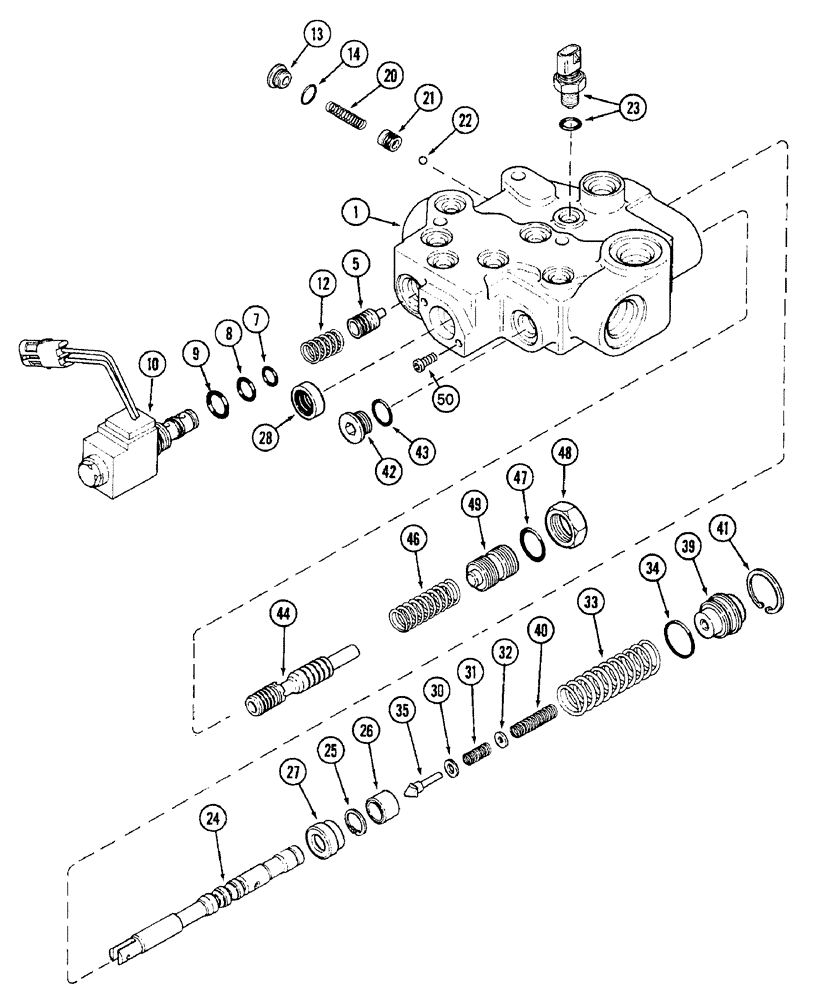

Схема запчастей Case IH 7240 - (8-010) - PTO VALVE ASSEMBLY, PRIOR TO TRACTOR PIN JJA0064978 (08) - HYDRAULICS
31
32
50
12
41
48
13
21
30
5
20
35
46
42
34
10
40
33
14
44
26
27
9
49
47
25
28
8
43
7
22
1
23
39
24

Артикул

Название

Примечание

Количество

1986567C2

VALVE

ASSEMBLY - PTO

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, PTO

1шт.

5

1341958C2

SPOOL

POPPET - valve check

1шт.

1986618C1

SOLENOID

ASSEMBLY - solenoid, 3-way, differential lock

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

9

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

10

NSS

NOT SOLD SEPARAT

SOLENOID - differential lock

1шт.

12

1341960C1

SPRING

check valve

1шт.

13

9625178

PLUG,9/16" - 18 ORB

1шт.

20

1341952C1

SPRING

detent

1шт.

21

1341948C3

GUIDE

detent, without balance groove

1шт.

22

211-1008

BALL,1/4" Dia

chrome alloy steel, 1/4 inch, grade 24

1шт.

23

1964698C3

SWITCH

PTO neutral

1шт.

1343754C1

SPOOL

ASSEMBLY - PTO valve

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - PTO

1шт.

25

100-1862

SNAP RING,#62, Ext

Spool (Replaces A60273)

1шт.

26

1957864C2

STOP

spool, shoulder

1шт.

27

G108813

STOP

STOP - spool

1шт.

28

G105700

OIL SEAL

oil

1шт.

30

G108811

WASHER,8mm ID x 14.27mm OD x 1.65mm Thk

poppet

1шт.

31

G108818

SPRING

secondary, modulator

1шт.

32

G108810

WASHER

poppet, prior to transmission serial number AJB0068288, shown

1шт.

32

140211A1

WASHER

poppet, transmission serial number AJB0068288 and after

1шт.

33

G110014

VALVE SPRING

centering

1шт.

34

238-5024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 5, 75 Duro

1-1/8 ID x 1/16 inch wide

1шт.

35

G108809

VALVE POPPET

1шт.

39

G108808

CAP

end

1шт.

40

G108816

SPRING

primary, modulator

1шт.

41

100-21137

SNAP RING,1.375", Int, #137

1шт.

42

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

43

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

44

1986880C1

SPOOL

regulator

1шт.

46

1341961C2

SPRING

regulator

1шт.

47

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

48

218-1280

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

49

1341962C1

PLUG

adjusting

1шт.

50

879-10625

SET SCREW,Hex Skt, M6 x 20mm, Cup Pt

set, hex socket, 6 x 25 mm

2шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 39
