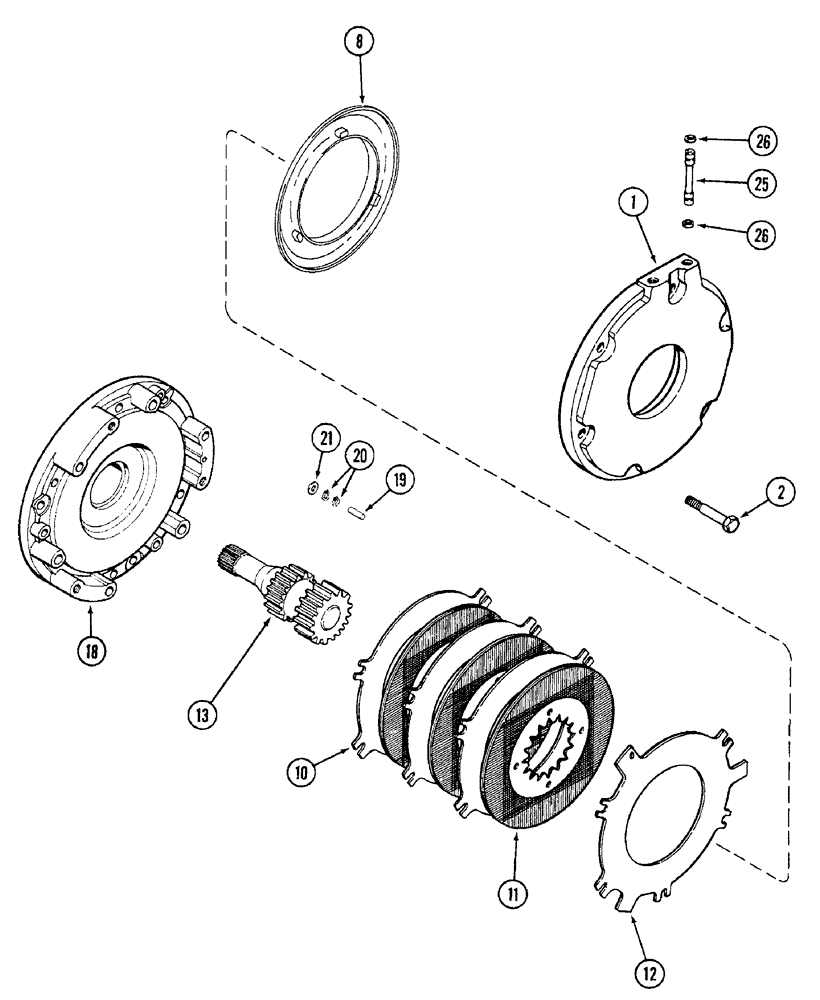

Запчасти Case IH 7240 (7-006) - DIFFERENTIAL BRAKES (07) - BRAKES

1

1342723C2

COVER

brake

2шт.

2

813-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 8.8

BOLT - hex, 16 - 2.0 x 110 mm (right cover)

6шт.

2

814-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

(Left cover)

6шт.

8

1997422C1

PISTON

lock, brake

2шт.

1264581C1

PACKAGE

KIT - plate, brake, no longer available, order components

1шт.

10

120486C1

BRAKE PLATE,192mm ID x 350mm OD x 2.74mm Thk

separator

8шт.

11

120488C2

BRAKE PLATE

friction

8шт.

12

139189C1

PLATE

return, adjuster

2шт.

13

REF

INSTRUCTION

SHAFT - sun gear final drive (See Page 6-65 or 6-67)

2шт.

18

REF

INSTRUCTION

RETAINER - differential (See Page 6-49)

2шт.

1349198C1

ADJUSTER

ASSEMBLY - brake

6шт.

19

37-1828

DOWEL,1/2" x 1 3/4"

PIN - brake adjuster

1шт.

20

100-1450

SNAP RING,#50, Ext

2шт.

21

1342928C1

BELLEVILLE WASHER

thrust

12шт.

25

120514C2

TUBE,7.47 mm ID, 11.85 mm OD

inlet, brake oil

4шт.

26

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

8шт.
