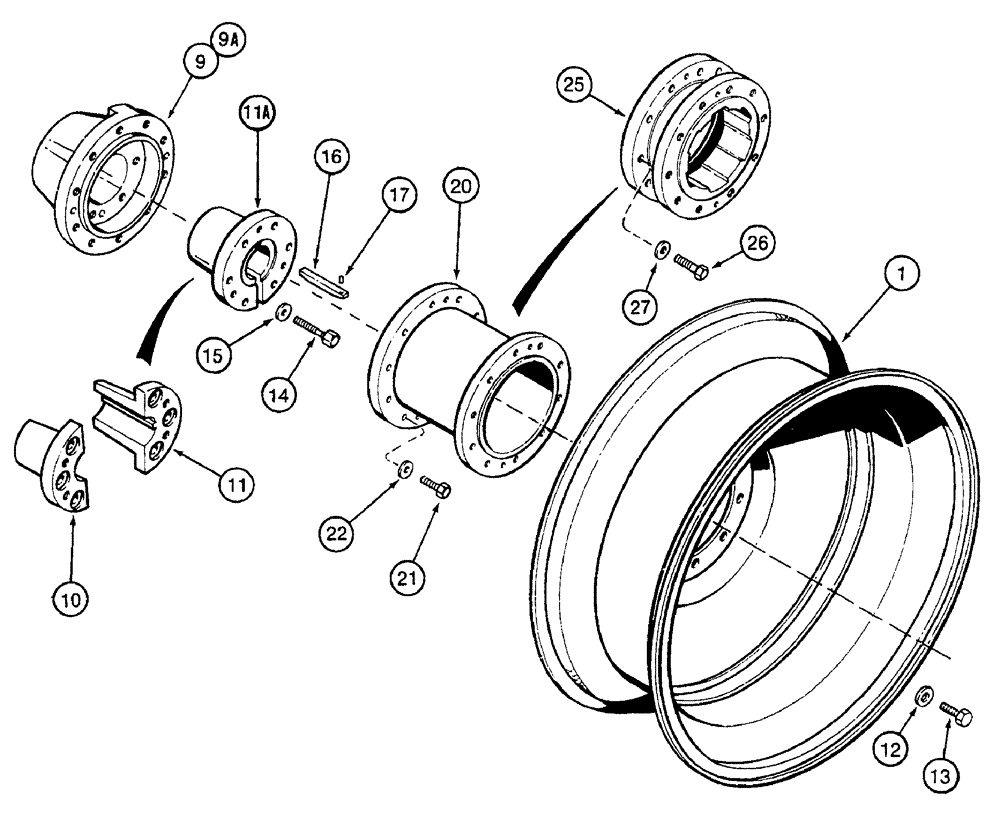

Запчасти Case IH 7240 (6-096) - STEEL DUAL WHEELS, 38, 42 AND 46 INCH RIMS (06) - POWER TRAIN

A67729

WHEEL ASSY.

ATTACHMENT - dual, order from Machinery Price List

1шт.

1

1334330C1

WHEEL

rim, rear, steel (For 18.4-38 tire)

2шт.

A67731

WHEEL ASSY.

ATTACHMENT - dual, order from Machinery Price List

1шт.

1

1334331C1

RIM

WHEEL rear, steel (For 20.8-38 tire)

2шт.

A67791

WHEEL ASSY.

ATTACHMENT - dual, order from Machinery Price List

1шт.

1

1334332C1

RIM

WHEEL rear, steel (For 18.4-42 tire)

2шт.

A67934

RIM

WHEEL ATTACHMENT - dual, order from Machinery Price List

1шт.

1

1334333C1

RIM

WHEEL rear, steel (For 20.8-42 tire)

2шт.

A67947

WHEEL ASSY.

ATTACHMENT - dual order from Machinery Price List

1шт.

1

1348319C1

WHEEL ASSY.

rim, rear, steel (For 18.4-46 tire)

2шт.

1340519C3

WHEEL ASSY.

ATTACHMENT - dual, order from Machinery Price List

1шт.

1

123408A2

RIM

WHEEL rear, steel (For 14.9-46 tire)

2шт.

A67687

HUB

ATTACHMENT - wheel, 10 bolt, order from Machinery Price List

1шт.

9

A180916

HUB

wheel, used with split bushings, items 10 and 11, if used

2шт.

9a

1348204C1

HUB

wheel, used with one-piece bushing, item 11A, no longer available, order A145322 if an 8 bolt hub is needed; order A180916 if an 10 bolt hub is needed, if used

2шт.

10

1334526C2

BUSHING

wheel, two piece, plain half, 4 inch ID, if used

2шт.

11

1334525C2

BUSHING

wheel, two piece, keyed half, 4 inch ID, keyed, if used

2шт.

11a

223769A1

HUB

axle, rear, 102 mm (4 inch), one-piece, replaces 1289233C1 bushing, if used

2шт.

12

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

20шт.

13

426-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

BOLT - hex, 7/8 NC x 2 inch, grade 8

20шт.

14

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, special, 3/4 NC x 4-1/2 inch, replaces A60095 bolt

12шт.

15

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

12шт.

16

A63219

KEY

axle, 3/4 x 6 inch

2шт.

17

38-11608

LOCK PIN,1/4" x 1/2", Slotted

2шт.

A67939

COUPLING

SPACER KIT - dual wheel, 13 inch, order from Machinery Price List (Used with 120 inch axles only)

1шт.

20

1342141C1

SPACER

dual wheel, 13 inch

2шт.

21

426-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8

20шт.

22

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

20шт.

A187233

HUB

SPACER KIT - dual wheel, 5 inch, order from Machinery Price List

1шт.

25

1342168C1

HUB

SPACER - dual wheel, 5 inch, rear

2шт.

26

426-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

BOLT - hex, 7/8 NC x 2-1/2 inch, grade 8

20шт.

27

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

20шт.
