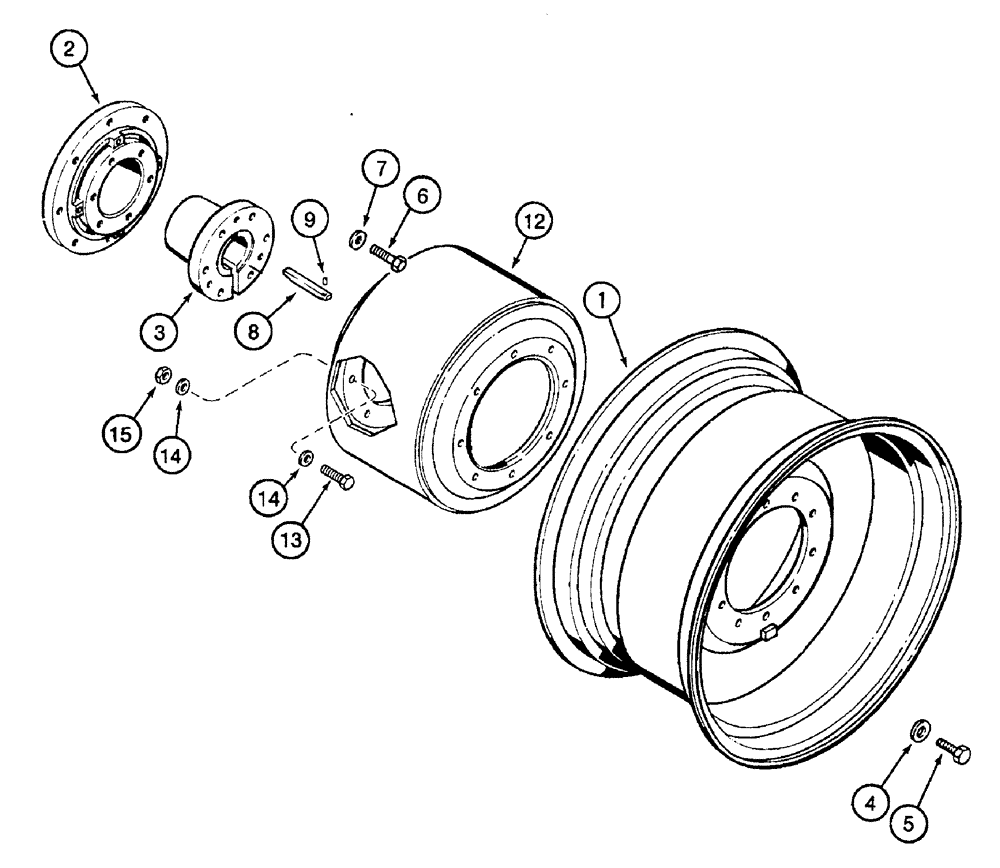

Запчасти Case IH 7240 (6-094) - STEEL DUAL WHEELS FOR 120 INCH AXLES, 32 AND 34 INCH RIMS (06) - POWER TRAIN

107492A1

WHEEL ASSY.

ATTACHMENT - dual, order from Machinery Price List

1шт.

1

1968161C1

RIM

WHEEL rear, steel (For 24.5-32 tire)

2шт.

107414A1

WHEEL ATTACHMENT - dual, order from Machinery Price List

1шт.

1

102890A1

WHEEL

rim, rear, steel (For 23.1-34 tire) 8 bolt rim, if used, not shown

2шт.

A67686

HUB

ATTACHMENT - wheel, 8 bolt, order from Machinery Price List

1шт.

2

A145322

HUB

wheel

2шт.

3

223769A1

HUB

axle, rear, 102 mm (4 inch), replaces 1289233C1 bushing

2шт.

4

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

32шт.

5

1348513C1

BOLT

BOLT - hex, 3/4 NC x 2-1/4 inch, grade 8

16шт.

6

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, special, 3/4 NC x 4-1/2 inch, replaces A60095 bolt

12шт.

7

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

12шт.

8

A63219

KEY

axle, 3/4 x 6 inch

2шт.

9

38-11608

LOCK PIN,1/4" x 1/2", Slotted

2шт.

429-1012

NUT,3/4"-10, G8

hex, NC

16шт.

A67430

PACKAGE

SPACER KIT - dual wheel, 16 inch, 8 bolt, order from Machinery Price List

1шт.

12

A149059

BUSHING

SPACER - dual wheel, 8 bolt, 16 inch

2шт.

13

1348513C1

BOLT

BOLT - hex, 3/4 NC x 2-1/4 inch, grade 8

16шт.

14

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

32шт.

15

429-1012

NUT,3/4"-10, G8

hex, NC

16шт.
