Запчасти Case IH 7240 (6-088) - STEEL REAR WHEELS, 32 AND 34 INCH RIMS (06) - POWER TRAIN

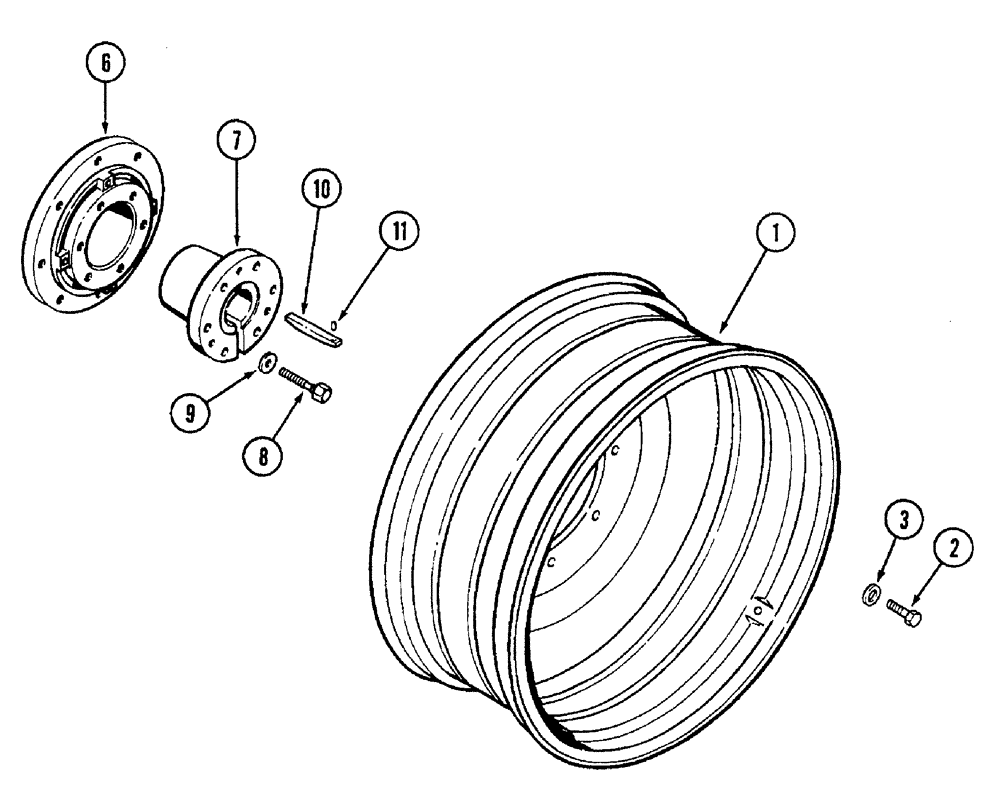

Схема запчастей Case IH 7240 - (6-088) - STEEL REAR WHEELS, 32 AND 34 INCH RIMS (06) - POWER TRAIN
10
8
11
1
9
2
3
6
7

Артикул

Название

Примечание

Количество

1

1968161C1

RIM

WHEEL rear, steel (For 24.5-32 tire) (3-3/16 inch offset)

2шт.

1

A145462

RIM

WHEEL rear, steel (For 30.5-32 tire) (2-3/8 inch offset)

2шт.

1

102890A1

WHEEL

rim, rear, steel (For 23.1-34 tire) (4-1/8 inch offset)

2шт.

1

135570A1

WHEEL

rim, rear, steel, low profile, for 38 inch tire (7230 tractor)

2шт.

2

1348513C1

BOLT

BOLT - hex, 3/4 NC x 2-1/4 inch, grade 8

16шт.

3

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, 13/16 x 1-1/2 x 7/32 inch, hardened

16шт.

4

A20058

VALVE STEM

Not shown

2шт.

A67685

PACKAGE

HUB ATTACHMENT - wheel, 8 bolt, order from Machinery Price List

1шт.

6

A145322

HUB

wheel, tapered

2шт.

7

1289233C1

HUB

BUSHING - wheel, 4 inch ID

2шт.

8

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - hex, special, 3/4 NC x 4-1/2 inch, replaces A60095 bolt

12шт.

9

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

12шт.

10

A63219

KEY

axle, 3/4 x 6 inch

2шт.

11

38-11608

LOCK PIN,1/4" x 1/2", Slotted

2шт.

Выбрано товаров: 14
