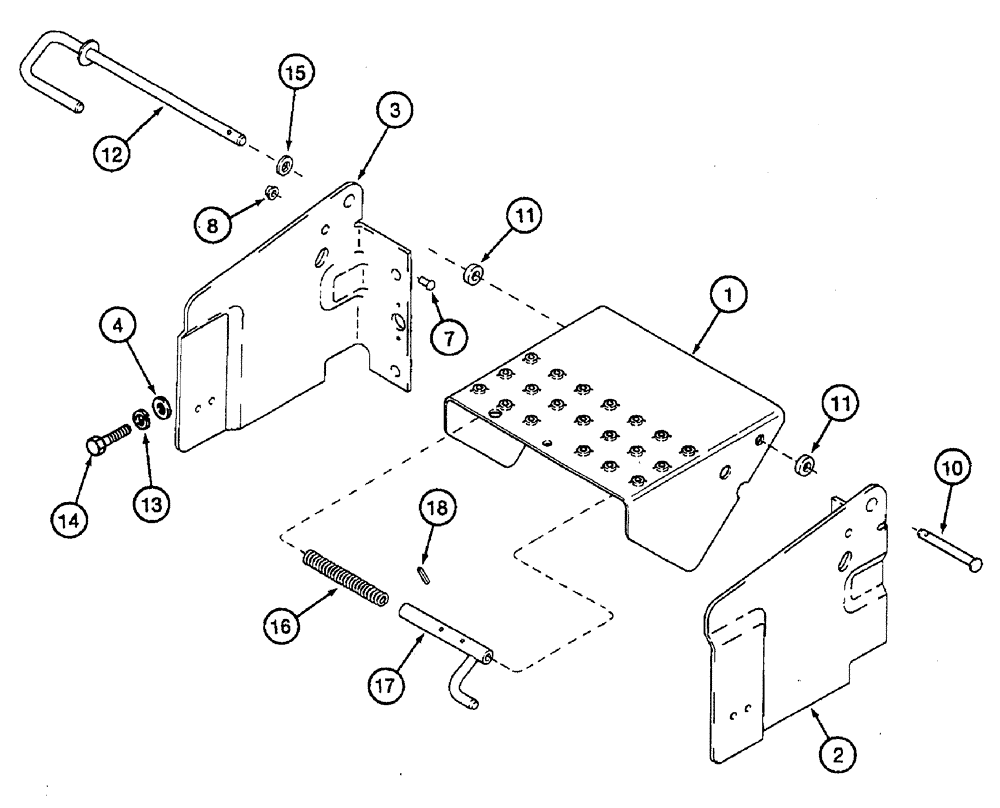

Запчасти Case IH 7240 (6-076) - PTO SHIELD (06) - POWER TRAIN

1

1978558C3

GUARD

SHIELD - PTO, PTO (Also order 1960744C2 decal on Figure 9-150), replaces 1978558C2 shield

1шт.

2

1978557C2

SUPPORT

BRACKET - PTO shield, left

1шт.

3

1978556C2

SUPPORT

BRACKET - PTO shield, right

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

7

445-58

RIVET,But Hd, 5/16" x 1/2"

round head, 5/16 x 1/2 inch

1шт.

8

131-868

PUSH-ON NUT,5/16", Sq, Push-on

push-on type, 1/4 inch

1шт.

10

439-1864

HEADED PIN,12.7mm OD x 101.6mm L

headed, 1/2 x 4 inch, grade 2

1шт.

11

1340500C1

SPACER

bracket, upper

2шт.

12

1340501C1

STEM

ROD - pivot, shield

1шт.

13

892-11010

LOCK WASHER,M10

4шт.

14

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

15

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

16

399635R1

VALVE SPRING

tension, pivot rod

1шт.

17

1340505C1

SLEEVE ASSY

pivot

1шт.

18

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

3/16" x 7/8", Slotted

2шт.
