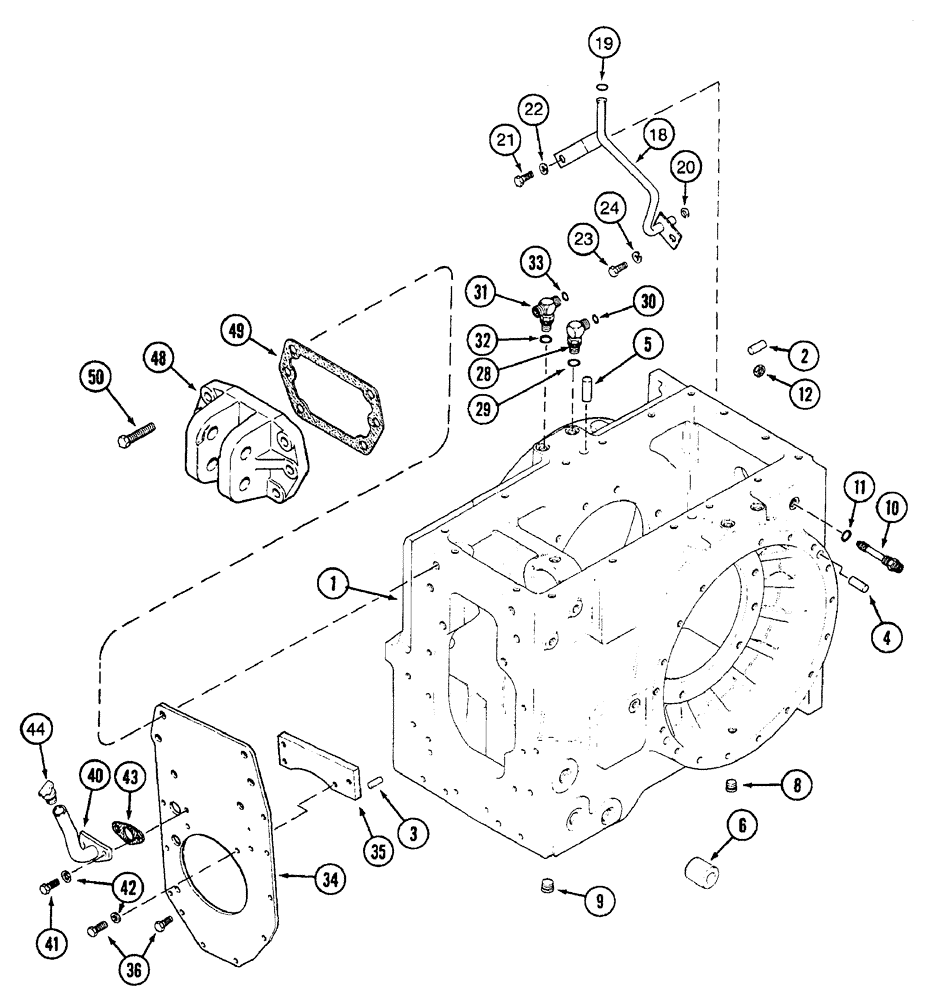

Запчасти Case IH 7240 (6-070) - REAR AXLE HOUSING (06) - POWER TRAIN

1

1347908C2

HOUSING

ASSEMBLY - axle, rear (Shown), prior to transmission serial number AJB0076737

1шт.

1a

220300A1

HOUSING

ASSEMBLY - axle, rear, transmission serial number AJB0076737 and after

1шт.

2

837-16035

DOWEL,M16 x 35

PIN - 16 x 35 mm, hardened

1шт.

3

837-12025

DOWEL,M12 x 25

Hardened

1шт.

4

837-16040

DOWEL,M16 x 40

Hardened

4шт.

5

19994R1

DOWEL,3/4" x 2"

dowel, 3/4 x 2 inch, 1347908C2 housing

2шт.

5

37-11232

DOWEL,3/4" x 2"

dowel, 3/4 x 2 inch, hardened, 220300A1 housing

2шт.

6

1347905C1

BUSHING

bracket anchor

2шт.

8

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

Headless, 1347908C2 housing

2шт.

8

192791A1

PLUG

hex socket, 1/2 inch PT, 220300A1 housing

2шт.

9

217-442

PLUG,3/4" - 14

hex socket headless, 3/4 inch PT, 1347908C2 housing

1шт.

9

192792A1

PLUG

square countersunk, 3/4-14 inch thread, 220300A1 housing

1шт.

10

93200C1

UNION

ADAPTER - bulkhead, 11/16-16 face seal x 9/16-18 inch flare

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

218-1254

LOCK NUT,Blkhd, 9/16"-18

Hex

1шт.

18

1349158C1

TUBE,195, 138 mm Length

lubrication, bevel gear

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

239-5112

O-RING,Rect, .5" ID x .688" OD, Cl 5

1шт.

21

613-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 10 - 1.5 x 20 mm

1шт.

22

892-11010

LOCK WASHER,M10

1шт.

23

613-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

24

892-11012

LOCK WASHER,M12

1шт.

28

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

3шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

30

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end

1шт.

31

201-402

TEE,13/16"-18 x 3/4"-16 Br, ORFS

3/4-16 adj O-ring branch x 13/16-16 inch face x face

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

33

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end

2шт.

34

1997476C1

LARGE PLATE

PLATE, LARGE adapter, PTO

1шт.

35

1981233C2

BAR

BRACKET - adapter, PTO

1шт.

36

613-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

BOLT, , Replaces 931703R1 bolt Hex, M12 x 30, 8.8, Full Thd

2шт.

40

103141A1

TUBE,120 mm Length

TUBE - oil fill

1шт.

41

613-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 12 - 1.75 x 35 mm

2шт.

42

108522C1

WASHER

copper seal, 1/2 x 23/32 x 1/16 inch, no longer used in this application, order item 49 gasket eliminator

2шт.

43

139395C1

GASKET,0.79mm Thk

tube, dipstick guide

1шт.

44

831821C1

PLUG

CAP - fill, transmission

1шт.

48

REF

INSTRUCTION

BRACKET - link mounting (See Figure 9-4)

1шт.

49

B17501

LOCTITE

SEALANT - Gasket Maker No. 515, 6 ml tube, liquid

1шт.

50

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

6шт.
