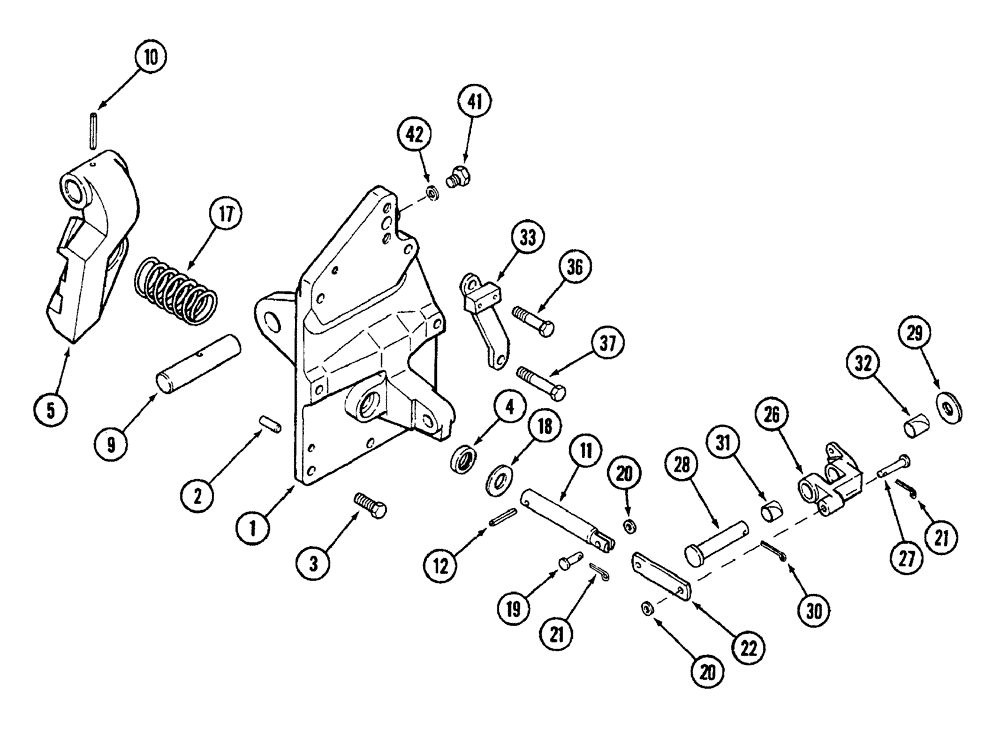

Запчасти Case IH 7240 (6-050) - TRANSMISSION, PARK LOCK (06) - POWER TRAIN

1

94809C3

COVER ASSY

lock, park

1шт.

2

837-10025

DOWEL,M10 x 25

Hardened

2шт.

3

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 10 - 1.5 x 30 mm

3шт.

3

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

4

G105118

OIL SEAL

oil

1шт.

5

94811C3

LEVER

pawl, lock, replaces 94811C2 lever

1шт.

9

148740C1

SHAFT

SHAFT - pawl, lock

1шт.

10

838-3645

PIN,M6 x 45, Coiled

6 x 45 mm, replaces 30681R1 pin

1шт.

11

94813C1

ROD

ASSEMBLY - pull, lever

1шт.

12

838-3640

PIN,M6 x 40, Coiled

Roll, Replaces 838-3636 pin

1шт.

17

1968499C1

SPRING

hold down lock

1шт.

18

495-11081

WASHER,3/4", SAE

If used

1шт.

19

527-201

CLEVIS PIN,8mm OD x 25mm L

clevis, 8 x 25 mm, replaces 30569R1 pin

1шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Replaces 933347R1 washer

2шт.

21

732-2016

COTTER PIN,M2 x 16

2шт.

22

148743C1

BAR

LINK - overcenter, lock

1шт.

26

1954042C2

DRIVE, ANGLE

BELLCRANK - overcenter

1шт.

27

729-835

CLEVIS PIN,M8 x 35

8 x 35 mm, hardened

1шт.

28

728-1680

CLEVIS PIN,M16 x 80

clevis, 16 x 80 mm, hardened

1шт.

29

495-81175

WASHER,21/32" x 1" x .120"

flat, 21/32 x 1 x 7/64 inch

1шт.

30

732-4025

COTTER PIN,M4 x 25

4 x 25 mm

1шт.

31

94795C1

STRIP

bellcrank

1шт.

32

94796C1

BUSHING

bellcrank

1шт.

33

1334342C1

BRACKET

cable

1шт.

36

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

37

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

41

76349

PLUG,9/16" - 18 ORB

1шт.

42

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
