Запчасти Case IH 7240 (6-046) - TRANSMISSION, PINION SHAFT AND GEAR (06) - POWER TRAIN

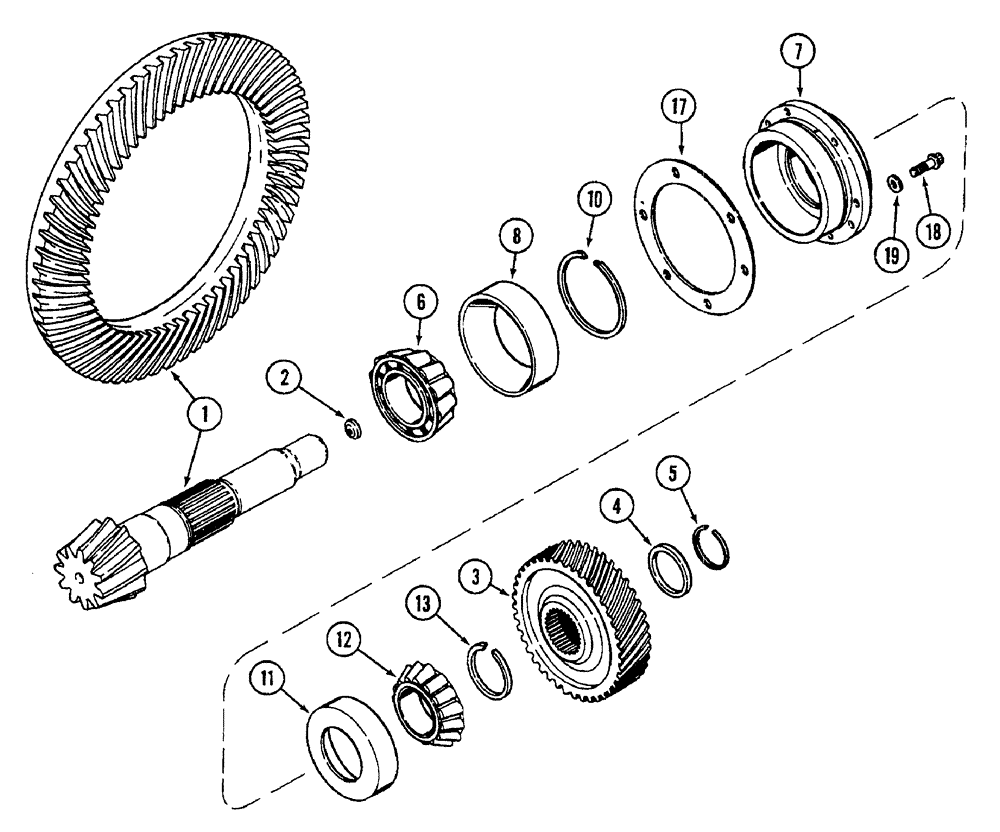

Схема запчастей Case IH 7240 - (6-046) - TRANSMISSION, PINION SHAFT AND GEAR (06) - POWER TRAIN
11
19
8
7
17
3
6
10
12
18
4
2
5
1
13

Артикул

Название

Примечание

Количество

1

94616C2

BEVEL GEAR

SET - shaft, pinion

1шт.

2

92825C1

CAP WASHER

shaft

1шт.

3

1285991C2

PINION

GEAR - driven, constant mesh (46 teeth)

1шт.

4

1286039C1

SPACER

bearing, shaft

1шт.

5

143906C1

SNAP RING

retainer, gear

1шт.

6

921684C1

BEARING ASSY,2.9528" ID x 5.7087" OD x 2.0079"

tapered roller

1шт.

7

1068264C1

BEARING HOUSING

bearing

1шт.

8

921683C1

BEARING CUP,5.7087" OD x 1.6535"

tapered roller

1шт.

10

120965C1

SNAP RING

retaining, bearing

1шт.

11

108326H

BEARING CUP,3.81" ID x 4.71" OD x 0.92"

tapered roller, front

1шт.

12

94666C1

TAPERED BEARING,73.03mm ID x 30.16mm W

tapered roller, front

1шт.

94669C1

RING

ring, pinion, kit no longer available, order components

1шт.

13

94661C1

RING,Rtng, Ext, 68.91mm ID x 3.70mm

pinion, 3.70 mm

1шт.

13

94662C1

RING,Rtng, Ext, 68.91mm ID x 3.78mm

pinion, 3.78 mm

1шт.

13

94663C1

RING,Rtng, Ext, 68.91mm ID x 3.86mm

pinion, 3.86mm

1шт.

13

94664C1

RING,Rtng, Ext, 68.91mm ID x 4.02mm

pinion, 4.02 mm

1шт.

13

110042C1

RING,Rtng, Ext, 68.91mm ID x 3.94mm

pinion, 3.94 mm

1шт.

13

131432A1

RING,Rtng, Ext, 68.91mm ID x 3.62mm

pinion, 3.62 mm

1шт.

13

131433A1

RING,Rtng, Ext, 68.91mm ID x 4.10mm

pinion, 4.10 mm

1шт.

13

131434A1

RING,Rtng, Ext, 68.91mm ID x 4.18mm

pinion, 4.18 mm

1шт.

1264590C1

SHIM KIT

shim, bearing, kit no longer available, order components

1шт.

17

120977C1

SHIM,171mm ID x 228mm OD x 0.08mm Thk

Bearing

1шт.

17

120978C1

SHIM,171mm ID x 228mm OD x 0.1mm Thk

Bearing

1шт.

17

120979C1

SHIM,171mm ID x 228mm OD x 0.13mm Thk

Bearing

1шт.

17

120980C1

SHIM,171mm ID x 228mm OD x 0.3mm Thk

Bearing

1шт.

18

566-12035

12 PT SCREW,Flg, M12 x 35mm, Cl 12.9

BOLT - 12 point flanged

6шт.

19

1251958C1

WASHER,13mm ID x 25.40mm OD x 1.367mm, HTS

flat, cage screw

6шт.

Выбрано товаров: 27
