Запчасти Case IH 7240 (6-036) - TRANSMISSION CONTROL VALVE ASSEMBLY, BODY SECTION, CREEPER VALVE BODY AND LOWER PLATE (06) - POWER TRAIN

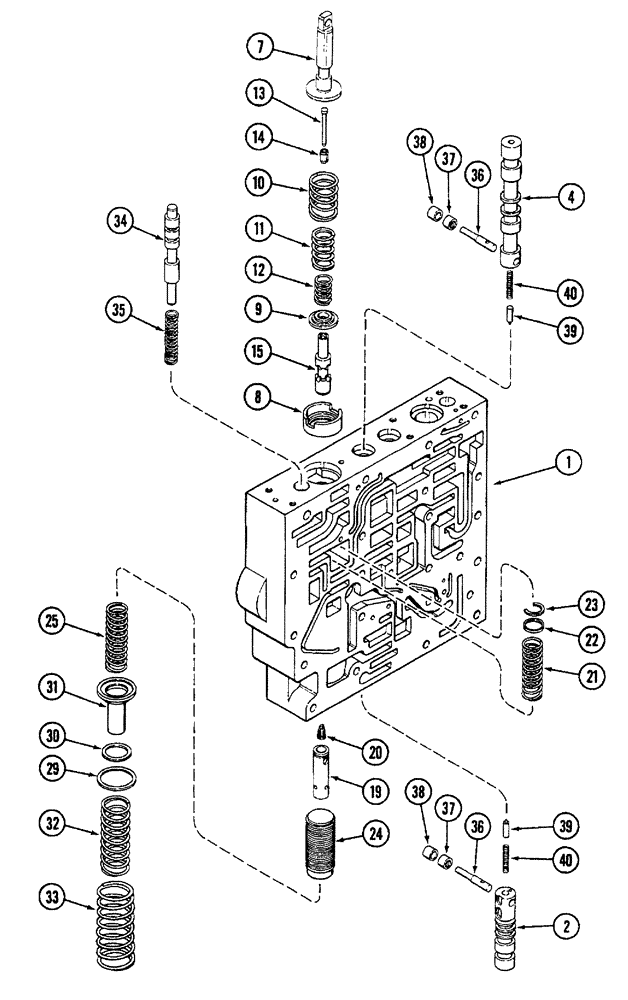

Схема запчастей Case IH 7240 - (6-036) - TRANSMISSION CONTROL VALVE ASSEMBLY, BODY SECTION, CREEPER VALVE BODY AND LOWER PLATE (06) - POWER TRAIN
39
34
40
4
19
13
14
7
37
2
29
36
38
21
8
33
12
1
36
40
32
31
11
38
37
39
15
20
9
24
22
10
23
25
35
30

Артикул

Название

Примечание

Количество

103183A1

VALVE, CONTROL

ASSEMBLY - transmission (With Creeper)

1шт.

1

REF

INSTRUCTION

BODY ASSEMBLY - valve (See Figure 6-30)

1шт.

2

93135C4

SPOOL

odd/even clutch, selector

1шт.

4

93139C5

SPOOL

high/low, selector

1шт.

109282A1

SPOOL

ASSEMBLY - control, clutch

1шт.

7

NSS

NOT SOLD SEPARAT

STEM- 109282A1 spool

1шт.

8

NSS

NOT SOLD SEPARAT

STOP - guide, control

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING - outer, control

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - inner, control

1шт.

13

NSS

NOT SOLD SEPARAT

PIN - control, clutch

1шт.

14

NSS

NOT SOLD SEPARAT

PIN - spring

1шт.

15

NSS

NOT SOLD SEPARAT

SPOOL -clutch.

1шт.

19

1286135C1

SPOOL

reducing, includes screen, no longer available, order 295768A1 spool and 295767A1 ring

1шт.

19

295768A1

SPOOL

reducing, requires 295767A1 retaining ring

1шт.

20

133519C1

SCREEN

filter

1шт.

21

1286241C1

VALVE SPRING

reducting

1шт.

22

1286189C1

INSULATING WASHER

RING - spring retainer

1шт.

23

1286184C1

RING, SNAP

RING SNAP retainer, used with 1286135C1 spool

1шт.

23

295767A1

RING, SNAP

RING SNAP retaining, used with 295768A1 spool

1шт.

24

92525C3

PISTON ASSY.

spool

1шт.

25

92530C1

SPRING

piston

1шт.

29

1286223C1

SHIM

spring, outer (use 6 or UAR)

1шт.

30

1286224C1

SHIM

spring, inner (use 6 or UAR)

1шт.

31

92534C2

GUIDE

spring, modulating

1шт.

32

1286242C1

VALVE SPRING

inner, modulating

1шт.

33

1286243C1

VALVE SPRING

outer, modulating

1шт.

34

92936C3

SPOOL

valve

1шт.

35

92976C1

VALVE SPRING

spool

1шт.

36

1286251C3

PIN

Spool, cam

2шт.

37

K620272

BEARING, NEEDLE,Needle, 6.35mm ID x 11.11mm OD x 7.92mm W

reaction

2шт.

38

1286264C1

SPACER

bearing

2шт.

39

94781C2

LOCK PIN

lock, selector

2шт.

40

94783C1

VALVE SPRING

lock pin

2шт.

Выбрано товаров: 35
