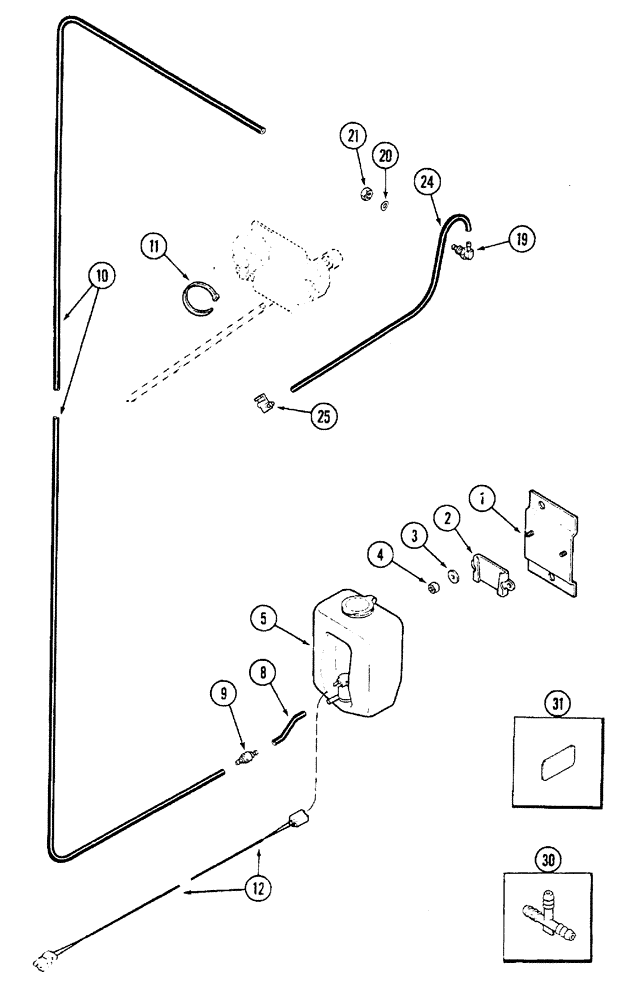

Запчасти Case IH 7240 (4-050) - WINDSHIELD WASHER (04) - ELECTRICAL SYSTEMS

1

1968022C1

SUPPORT

BRACKET - mounting, windshield washer reservoir and pump

1шт.

2

K304597

SUPPORT

BRACKET - reservoir mounting

1шт.

3

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

2шт.

4

425-104

NUT,1/4"-20, Cl 5

2шт.

5

K304596

RESERVOIR

AND PUMP ASSEMBLY - washer fluid, component parts not serviced separately

1шт.

8

1968057C1

HOSE

TUBING - washer, 4 inch (100 mm) long

1шт.

Order 1968141C1 and cut to length.

1шт.

9

K307050

VALVE

non-return

1шт.

10

1968058C1

HOSE

TUBING - washer, 141-3/4 inch (3600 mm) long

1шт.

Order 1968141C1 and cut to length.

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, harness

9шт.

12

1964673C1

HARNESS

wiring, washer pump

1шт.

19

1968053C1

ELBOW

ELBOW - 90 degree, special, mounts to 1968052C1 bracket, item 32

1шт.

20

N8361

SPRING WASHER

Belleville

1шт.

21

825-1408

NUT,M8, Cl 8

1шт.

24

1968059C1

HOSE

TUBING - washer, 19-11/16 inch (500 mm) long

1шт.

Order 1968141C1 and cut to length.

1шт.

25

1968054C1

JET

NOZZLE - windshield washer

1шт.

30

1968129C1

FITTING

TEE - nylon, barb ends (Converting for rear washer)

1шт.

31

1968130C1

CLIP

nozzle (Converting for rear washer)

2шт.

32

1968052C1

BRACKET

connector, to bulkhead, not shown

1шт.
