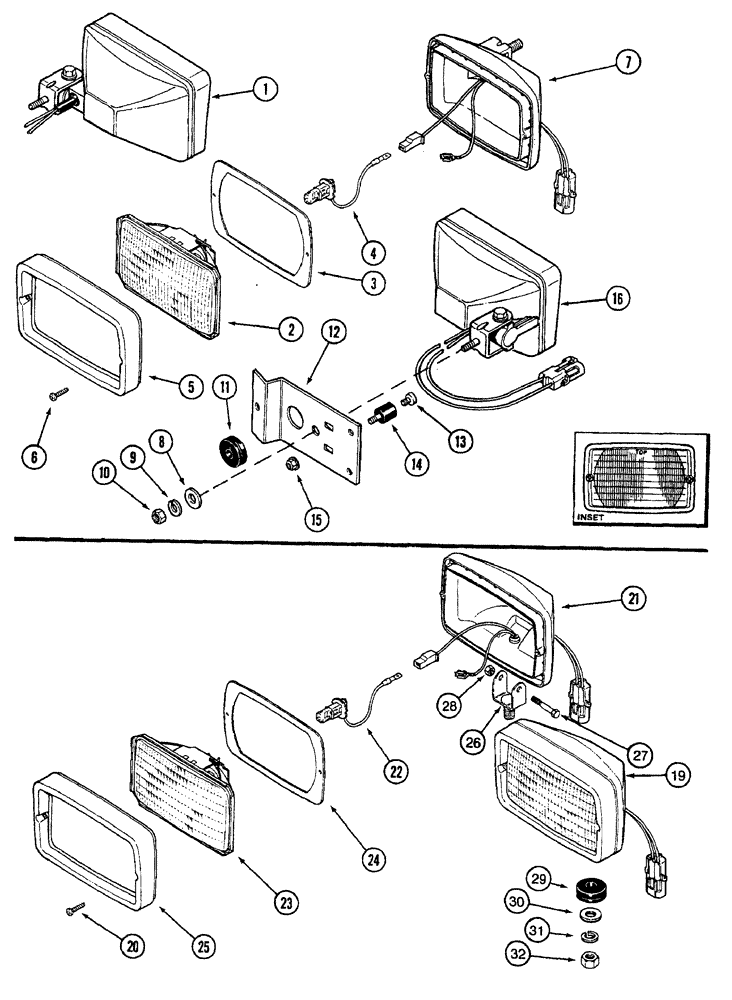

Запчасти Case IH 7230 (4-038) - LAMP ASSEMBLIES (04) - ELECTRICAL SYSTEMS

A187547

LAMP

KIT - flood, lower front, order from Machinery Price List

2шт.

1

92266C2

HEADLIGHT

LAMP ASSEMBLY - flood, left, lower

1шт.

2

1964807C1

LAMP BASE

LENS - reflector, standard glass, if used, lower front flood

1шт.

2

276498A1

LENS

reflector, lamp, tempered glass, if used, lower front flood

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET - lens, lower front flood

1шт.

4

1312210C2

BULB,Halogen H3, 12V, 55W

lamp, Halogen, replaces 1312210C1 bulb, lower front flood

1шт.

5

1964806C1

BEZEL

HOUSING - lamp, front, lower flood

1шт.

6

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

If used, Lower front flood

2шт.

6

340-1256

SCREW,Cross Pan Hd, 1/4"-20 x 3/8"

machine, pan Phillips, 1/4 NC x 3/8 inch, if used, lower front flood

2шт.

7

NSS

NOT SOLD SEPARAT

BASE - lamp, lower front flood

1шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

If Used, Lower front flood

1шт.

8

495-81140

WASHER,13/32" x 1 1/4" x .060"

If used, lower front flood

1шт.

9

892-11010

LOCK WASHER,M10

Lower front flood

1шт.

10

825-1410

NUT,M10, Cl 8

Lower front flood

1шт.

11

96901C1

GROMMET

blower motor wire, lamp wiring, lower front flood

1шт.

12

1334607C2

BRACKET

mounting, flood lamp, lower front

1шт.

13

1960750C1

SCREW,Pan HD, 1/4" - 20 x 3/8"

special, 1/4 NC x 3/8 inch, lower front flood

3шт.

14

1334650C1

SHOCK ABSORBER

MOUNT - rubber, lower front flood

3шт.

15

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

Lower front flood

3шт.

16

NSS

NOT SOLD SEPARAT

LAMP ASSEMBLY - flood, lower right, front flood

1шт.

For service order 92266C2 lamp Remove lens and turn upside down and install so top of lens is on top See inset.

1шт.

A187548

LIGHT

KIT - flood lamp, fender, order from Machinery Price List

2шт.

19

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

ASSEMBLY - flood, fender

1шт.

20

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

If used, Fender flood

2шт.

20

340-1256

SCREW,Cross Pan Hd, 1/4"-20 x 3/8"

machine, pan Phillips, 1/4 NC x 3/8 inch, if used, fender flood

2шт.

21

NSS

NOT SOLD SEPARAT

BASE - lamp, fender flood

1шт.

22

1312210C2

BULB,Halogen H3, 12V, 55W

lamp, Halogen, replaces 1312210C1 bulb, fender flood

1шт.

23

276498A1

LENS

reflector, lamp, replaces 1964807C1 lens, fender flood

1шт.

24

NSS

NOT SOLD SEPARAT

GASKET - lens, fender flood

1шт.

25

1964806C1

BEZEL

HOUSING - lamp, front, fender flood

1шт.

26

A187915

BRACKET

mounting, lamp, fender flood

1шт.

27

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

Replaces 931418R1 shoulder bolt, fender flood

1шт.

28

832-41308

NUT,M8 x 1.25, Cl 10

hex, self-locking, 8 mm - 1.25, class 10.9, fender flood

1шт.

29

96901C1

GROMMET

blower motor wire, lamp wiring, fender flood

1шт.

30

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

If Used, Fender flood

1шт.

30

495-81140

WASHER,13/32" x 1 1/4" x .060"

If used, fender flood

1шт.

31

892-11010

LOCK WASHER,M10

Fender flood

1шт.

32

825-1410

NUT,M10, Cl 8

Fender flood

1шт.
