Запчасти Case IH 7230 (4-016) - CAB HEADLINER REAR HARNESS (04) - ELECTRICAL SYSTEMS

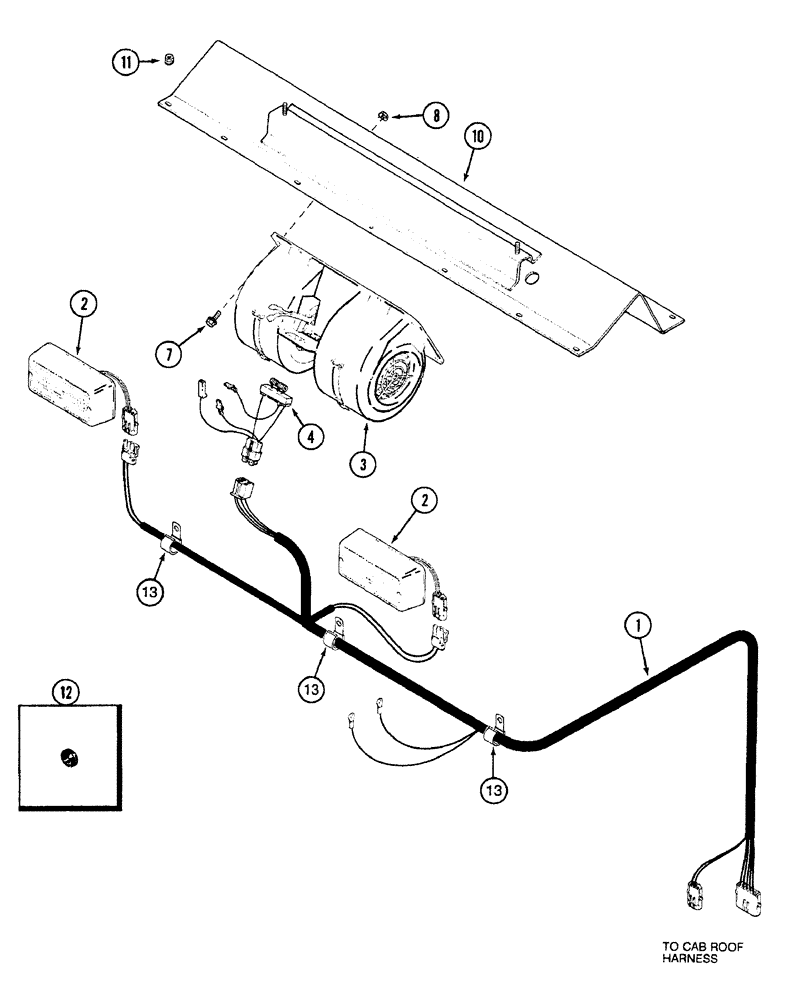

Схема запчастей Case IH 7230 - (4-016) - CAB HEADLINER REAR HARNESS (04) - ELECTRICAL SYSTEMS
13
8
4
13
13
7
2
1
2
10
12
3
11

Артикул

Название

Примечание

Количество

1

1987421C1

HARNESS

rear, headliner

1шт.

2

92185C1

LIGHT ASSY.

LAMP ASSEMBLY - warning, flasher, parts list Figure 4-36

2шт.

3

1977564C2

BLOWER

cab, component parts not serviced separately

1шт.

3

355190A1R

REMAN-BLOWER,12V

Reman for New PN 1977564C2

1шт.

3

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

1977564C2C

CORE-DISTRIBUTOR

Return Number, BLOWER - for N.A. Only

1шт.

1977564C3C

CORE-DISTRIBUTOR

Return Number, BLOWER - for N.A. Only

1шт.

4

1343938C2

RESISTOR

blower, replaces 1343938C1 resistor

1шт.

7

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

hex flange, special, 6 - 1 x 20 mm

4шт.

8

97005C1

FLANGE NUT

hex flange, self-locking, special, 6 mm - 1

4шт.

10

97032C5

SUPPORT

blower

1шт.

11

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

10шт.

12

117975

GROMMET,5/8" ID x 1 3/8" x .062", Diag Cut

rubber, for 5/8 inch diameter hole

1шт.

13

362123R1

CLIP

3шт.

Выбрано товаров: 14
