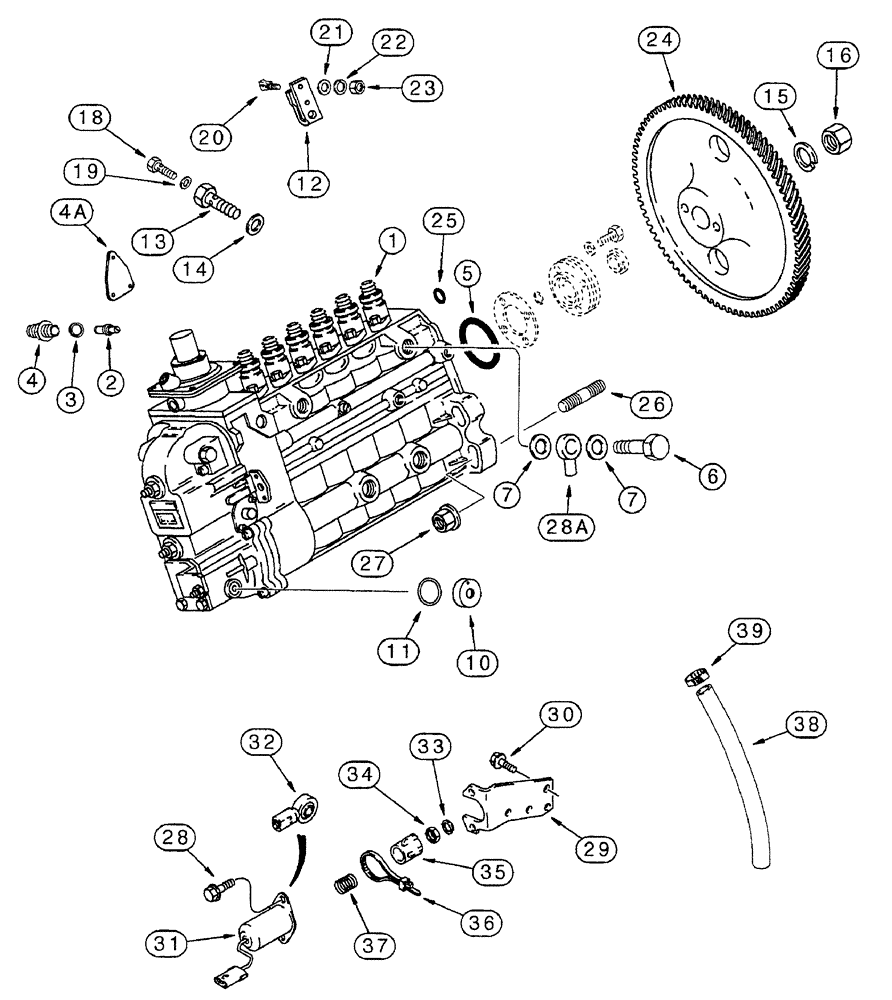

Запчасти Case IH 7230 (3-032) - FUEL INJECTION PUMP AND DRIVE, 6T-830 EMISSIONS CERTIFIED ENGINE, TRACTOR PIN JJA064978 AND AFTER (03) - FUEL SYSTEM

1

J926880

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - fuel, new

1шт.

1

JR926880

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP

1шт.

1

JC926880

CORE-INJECTION PUMP

Return No, INJECTION PUMP

1шт.

1

JC923235

CORE-INJECTION PUMP

Return Number - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

A77720

PIN

timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Plug

1шт.

4

J912888

PLUG

timing

1шт.

4a

A71110

GASKET

mounting

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

sealing

1шт.

6

J912886

VALVE

overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

8

J929322

LEVER

pump shutoff, not shown

1шт.

9

J930291

NUT

hex, 5 mm - 0.8, not shown

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

680187C1

O-RING,2.5mm Thk x 9mm ID

sealing, special

1шт.

12

1808728C1

LEVER

throttle control

1шт.

13

J913320

SCREW

vent

1шт.

14

691273C1

GASKET,14.2mm ID x 19.9mm OD x 1.5mm Thk

vent screw

1шт.

15

J912897

LOCK WASHER

lock

1шт.

16

J912896

LOCK NUT

hex, self-locking, special

1шт.

18

B41211

SCREW

vent

1шт.

19

933696R1

SEALING RING,M6 x 10 x 1

Vent screw

1шт.

20

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

22

892-11006

LOCK WASHER,M6

1шт.

23

829-1306

NUT,M6, Cl 10

1шт.

24

J912615

GEAR

fuel pump

1шт.

25

J916284

O-RING

O-RING - sealing

1шт.

26

J915036

STUD

pump mounting, gear housing to injection pump

4шт.

27

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

28

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

hex flange, special, 6 - 1 x 20 mm

2шт.

28a

J911447

CONNECTOR, ELEC

CONNECTOR banjo, fuel return

1шт.

29

J923255

SUPPORT

BRACKET - solenoid mounting

1шт.

30

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

31

J930233

SOLENOID

fuel shutoff, 12 volt

1шт.

32

A146456

BALL

JOINT - 1/4 inch NF

1шт.

33

492-11025

LOCK WASHER,1/4"

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

35

J925171

BOOT

protective, plunger

1шт.

36

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

37

J923887

SPRING

return, plunger

1шт.

38

J918176

HOSE,7.90 mm ID x 330.00 mm

Fuel Drain, Prior to Engine Serial Number 45361257

1шт.

38

J930842

FUEL HOSE,330.00 mm

Fuel Drain, Engine Serial Number 45361257 And After, Use With 235337A1

1шт.

39

A171099

HOSE CLAMP,13.2mm - 15.4mm

spring-type, hose

1шт.

40

J930683

LOCK NUT

hex, 5 mm - 0.8, solenoid ball joint to injection pump, not shown

1шт.
