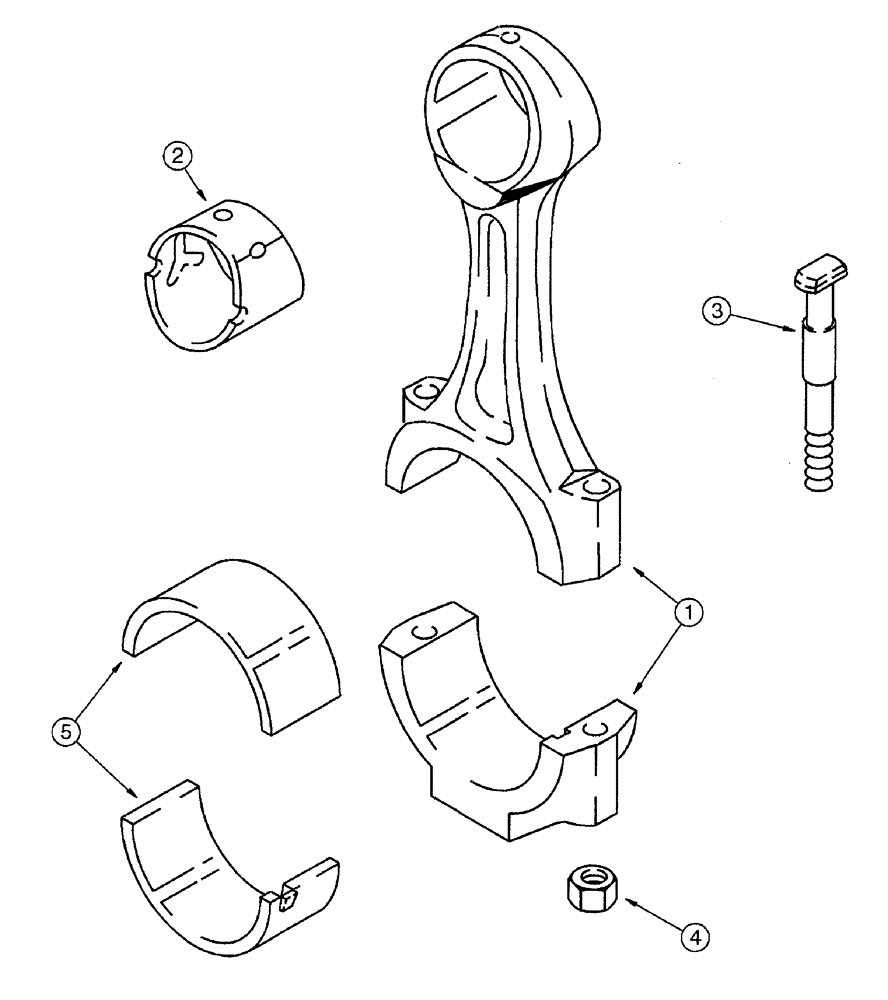

Запчасти Case IH 7230 (2-124) - CONNECTING RODS, 6T-830 AND 6TA-830 ENGINE, PRIOR TO TRACTOR PIN JJA0064978 (02) - ENGINE

JR901383

REMAN-CONNECTING ROD

ASSEMBLY - North America only, component parts shown on this Figure do not apply to the remanufactured assembly

6шт.

JC901383

CORE-ROD CONNECTING

CORE-CONNECTING ROD RETURN NUMBER - use this part number to return for credit when using a remanufactured assembly

1шт.

J901383

CONNECTING ROD

ASSEMBLY

6шт.

84487529R

REMAN-CONNECTING ROD

7230, 7240, 7250 CONNECTING RODS, 6T-830 AND 6TA-830 ENGINE, PRIOR TO TRACTOR PIN JJA0064978 ALL(10/93 - 12/96), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

ROD - connecting, two piece

1шт.

2

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

connecting rod

1шт.

3

J928870

ROD

BOLT - special, rod, bearing cap, replaces J920799 and J924351 bolts

2шт.

4

J901381

SPECIAL NUT

hex, rod bolt, bolt retaining

2шт.

5

A77563

BEARING SET

KIT - upper and lower, standard

6шт.

5

A77564

BEARING SET

KIT - upper and lower, 0.25 mm undersize

6шт.

5

A77565

BEARING SET

KIT - upper and lower, 0.50 mm undersize

6шт.

5

A77566

BEARING SET

KIT - upper and lower, 0.75 mm undersize

6шт.

5

A77567

BEARING SET

KIT - upper and lower, 1.00 mm undersize

6шт.
