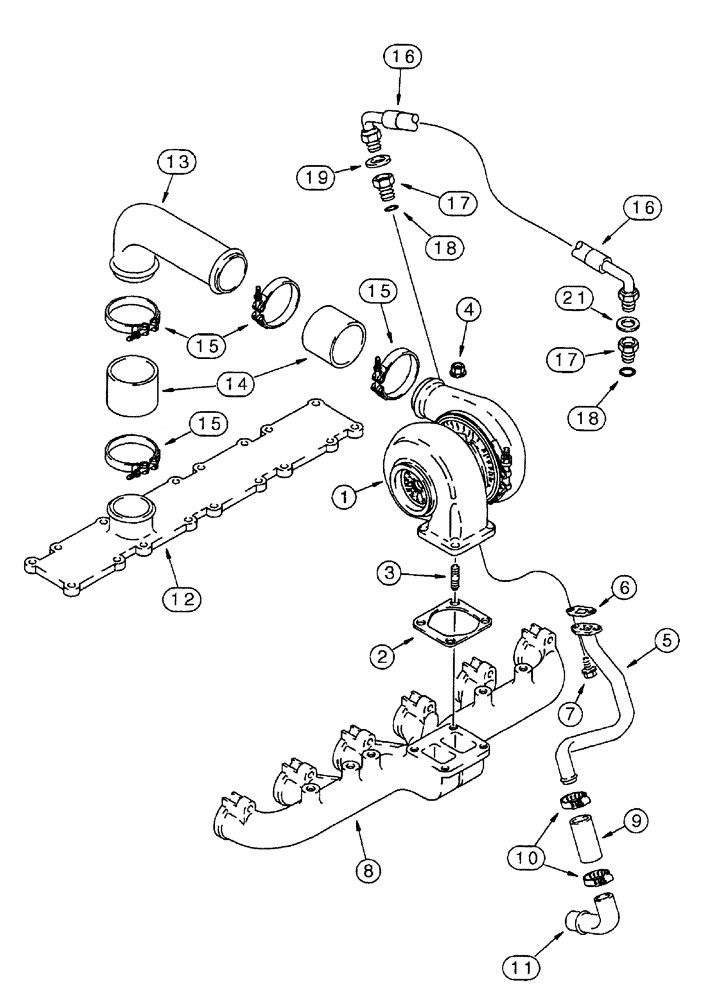

Запчасти Case IH 7230 (2-040) - TURBOCHARGER SYSTEM, 6T-830 ENGINE, PRIOR TO TRACTOR P.I.N. JJA0064978 (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, see page 2-49 for correct assembly and component parts

1шт.

2

J911941

GASKET

mounting, turbocharger

1шт.

3

J818823

STUD

turbocharger mounting

4шт.

4

J818824

FLANGE NUT

hex flange, special, 10 mm - 1.5

4шт.

5

J917417

TUBE,22.23 mm OD x 281, 141.1 mm L

drain, oil

1шт.

6

J931350

GASKET

turbo oil drain tube, replaces J914388 gasket

1шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

8

J932183

EXHAUST MANIFOLD

exhaust, replaces J906720 and J929779 manifolds, see Figure 2-32

1шт.

9

J931970

HOSE,22.22 mm ID x 76.20 mm

Drain, Replaces J903745

1шт.

10

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Adj.

2шт.

11

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

12

J906737

COVER ASSY

intake manifold, intake, see Figure 2-32

1шт.

13

J914944

TUBE,63.5 mm OD x 207.8, 91.9 mm L

air, crossover

1шт.

14

J916529

TRANSMISSION SLEEVE

HOSE - 76 mm (3 inch) long, air

2шт.

15

J924386

COLLAR CLAMP

adjustable, special, hose retaining

4шт.

16

J921530

HOSE,9.53mm ID x 385mm L

Turbocharger Oil Supply

1шт.

17

J919687

HYD CONNECTOR

ADAPTER - female hex, special

2шт.

18

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

19

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
