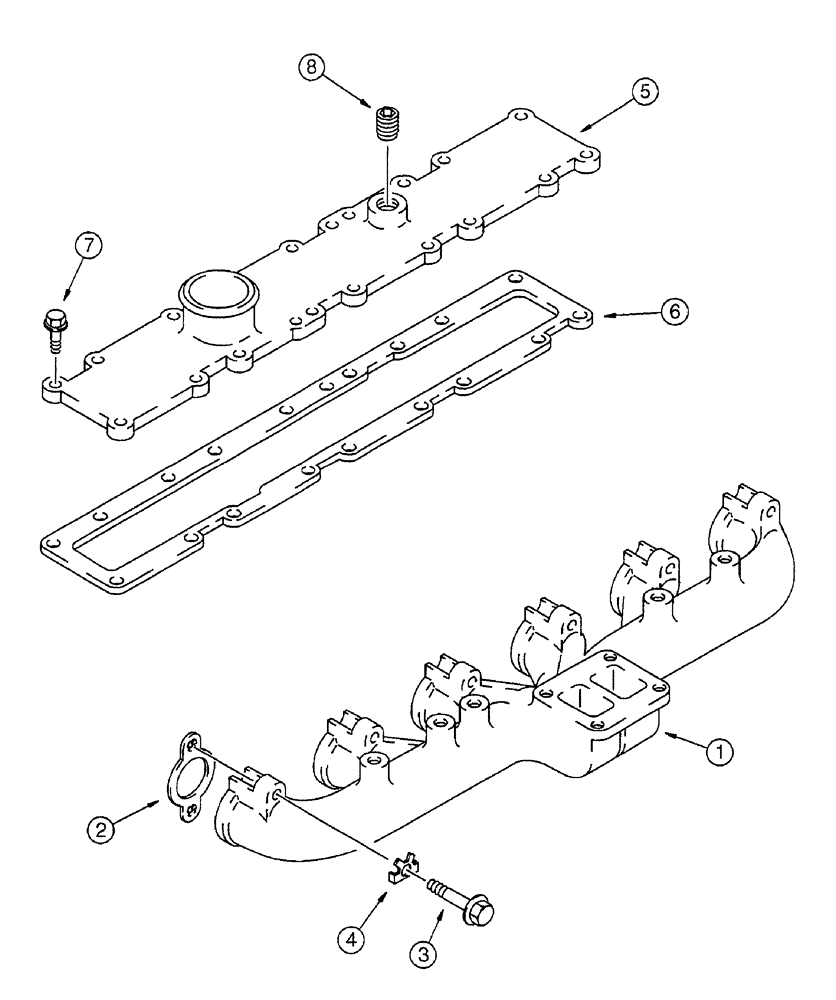

Запчасти Case IH 7230 (2-034) - MANIFOLDS, 6T-830 EMISSIONS CERTIFIED ENGINE, TRACTOR P.I.N. JJA0064978 AND AFTER (02) - ENGINE

1

J932183

EXHAUST MANIFOLD

exhaust, replaces J929779 manifold

1шт.

2

J929012

GASKET,0.5mm Thk

exhaust manifold, 0.54 mm thick

6шт.

3

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

Exhaust manifold to cylinder head replaces J929537 bolt

12шт.

4

J914708

LOCKING PLATE

manifold bolt, exhaust

12шт.

5

J922648

COVER ASSY

intake manifold

1шт.

6

J914311

MANIFOLD GASKET

intake manifold cover

1шт.

7

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

Intake manifold cover to cylinder head

18шт.

8

A77429

PLUG

hex socket, 1/2 inch PT, intake

1шт.
