(9-138) - AIR CONDITIONING, CONDENSER AND RECIEVER-DRIER, TRACTOR PIN JJA0064978 AND AFTER

Запчасти Case IH 7230 (9-138) - AIR CONDITIONING, CONDENSER AND RECIEVER-DRIER, TRACTOR PIN JJA0064978 AND AFTER (09) - CHASSIS/ATTACHMENTS

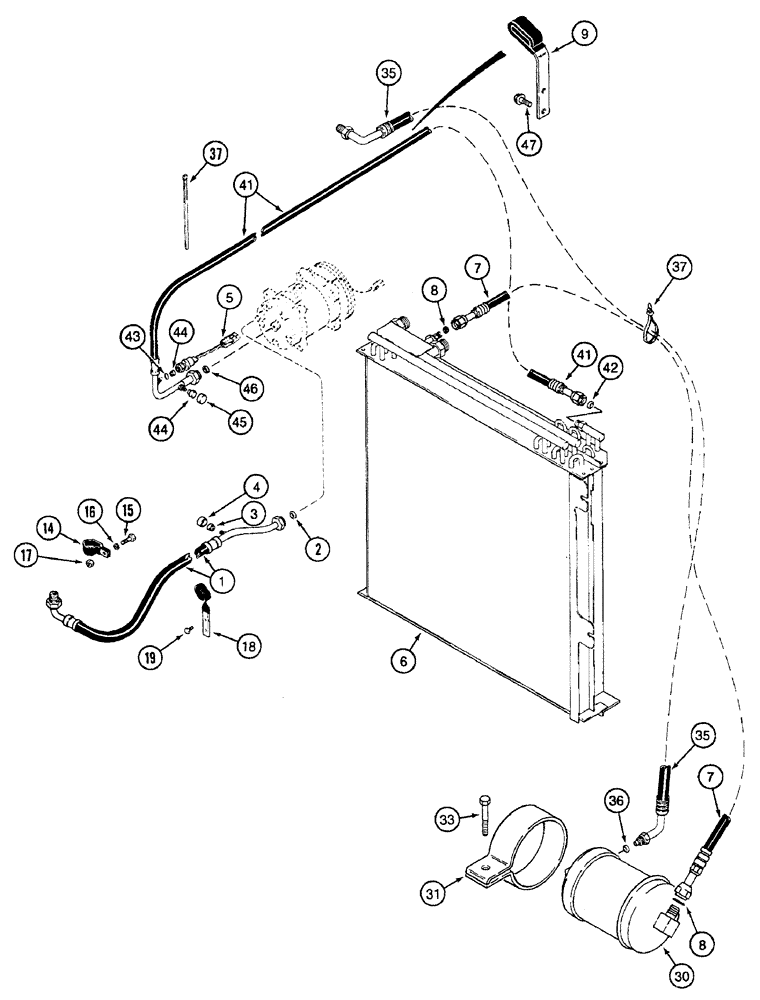

Схема запчастей Case IH 7230 - (9-138) - AIR CONDITIONING, CONDENSER AND RECIEVER-DRIER, TRACTOR PIN JJA0064978 AND AFTER (09) - CHASSIS/ATTACHMENTS
8
19
33
44
7
14
9
45
46
37
47
7
6
43
35
30
15
41
5
44
6
41
37
4
18
16
2
3
36
17
1
35
31
42
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1999922C1

HOSE

1650 mm (65 inch) long, suction, compressor to cab base

1шт.

2

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide, at compressor

1шт.

3

1250594C1

CORE

VALVE

1шт.

4

122553A1

CAP

sealing

1шт.

5

232948A1

SWITCH, A/C HIGH PRE

400 psi, Replaces 375 psi switch used on some models

1шт.

6

181583A1

CONDENSER

air conditioning, see Figure 5-16 for hardware attaching condenser to oil cooler, see Figure 3-60 for fuel cooler lines

1шт.

7

192929A2

HOSE

413 mm (16-17/64 inch) long, Serial Range: condenser-receiver-drier

1шт.

8

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

2шт.

9

223357A1

FIXING BRACKET

CLAMP - retaining

1шт.

14

1954490C2

CLAMP

retaining

1шт.

15

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

1шт.

18

1954766C2

CLAMP

retaining

1шт.

19

30931R1

SELF-TAP SCREW,Flat Hd, M6 x 13

special, 6 x 12 mm

2шт.

30

1990758C2

RECEIVER-DRYER

air conditioning

1шт.

31

T102980

CLAMP

BRACKET - receiver-drier mounting

1шт.

33

276-14832

SELF-TAP SCREW,Hex Hd, 5/16" x 2"

1шт.

35

131249A2

HOSE

2800 mm (110-1/4 inch) long, receiver-drier to cab, replaces 131249A1 hose

1шт.

36

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

41

186468A2

HOSE

1500 mm (59-1/16 inch) long, discharge, Serial Range: compressor-condenser

1шт.

42

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16 inch wide, at condenser

1шт.

43

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide, at pressure switch fitting

1шт.

44

1250594C1

CORE

VALVE

2шт.

45

122554A1

CAP

Sealing, charge port

1шт.

46

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide, at compressor

1шт.

47

234017A1

HEX SOC SCREW

BOLT - hex socket, 8 - 1.25 x 16 mm, mounts hoses to radiator, replaces 844-8016 bolt

2шт.
