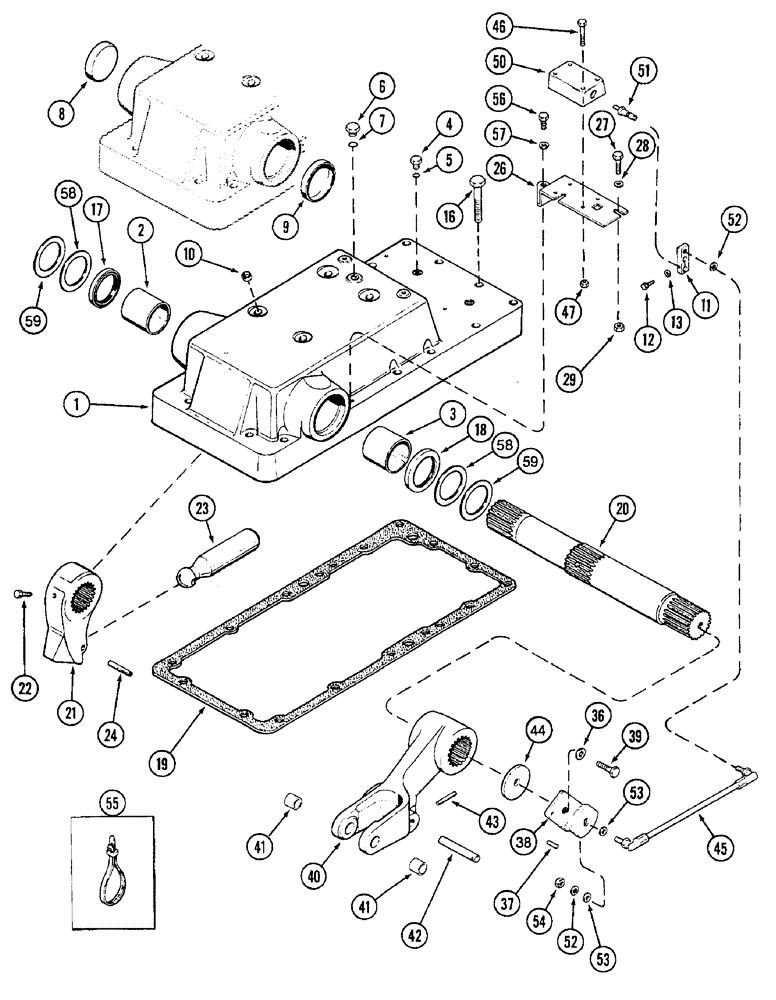

Запчасти Case IH 7230 (9-002) - HITCH ROCKSHAFT (09) - CHASSIS/ATTACHMENTS

1349439C4

COVER

ASSEMBLY - rockshaft

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - rockshaft

1шт.

2

1331849C1

BUSHING,70.71mm ID x 75.43mm OD x 76.2mm L

rockshaft, left

1шт.

3

1331848C1

BUSHING,76.81mm ID x 81.55mm OD x 76.2mm L

rockshaft, right

1шт.

4

76349

PLUG,9/16" - 18 ORB

(Without hitch)

2шт.

6

86512512

PLUG,7/8" - 14 ORB

Without hitch

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

380174R1

PLUG,Cup, 3.510"

(Without hitch)

1шт.

9

380173R1

PLUG,Cup, 3.762"

1шт.

10

380263R1

PLUG

cup (Without hitch)

4шт.

11

1342165C1

LEVER

link, potentiometer

1шт.

12

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

13

492-11025

LOCK WASHER,1/4"

1шт.

16

614-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8, Full Thd

16шт.

17

1347918C1

OIL SEAL,70.64mm ID x 89.1mm OD x 12.7mm Thk

oil, rockshaft, left

1шт.

18

1347919C1

OIL SEAL,76.73mm ID x 95.48mm OD x 12.7mm Thk

oil, rockshaft, right

1шт.

19

380264R3

GASKET,0.53mm Thk

rear frame cover

1шт.

20

1973956C1

ROCKSHAFT

hitch control

1шт.

21

84923C2

DIPPER

BELLCRANK - rockshaft

1шт.

22

382811R1

SET SCREW,Hex, 3/8" - 16, Lok-Thd x 1 1/2", Cone Pt

special, rockshaft bellcrank

1шт.

23

84922C1

ROD,50.8mm OD x 248.49mm L

piston connecting

1шт.

24

38-12840

LOCK PIN,7/16" x 2 1/2", Slotted

1шт.

26

1340665C1

SUPPORT

BRACKET - potentiometer

1шт.

27

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

29

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

36

492-21062

LOCK WASHER,5/8"

1шт.

37

38-11616

LOCK PIN,1/4" x 1", Slotted

1шт.

38

1340669C1

LEVER

sensor, rockshaft

1шт.

39

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

Rockshaft arm (Right)

1шт.

39

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

Rockshaft arm (Left)

1шт.

40

1286931C3

LOWER LINK

ARM ASSEMBLY - rockshaft, left (Includes Ref. 41) if used

1шт.

40

1286930C5

LOWER LINK

ARM ASSEMBLY - rockshaft, right (Shown)

1шт.

41

1252114C1

BUSHING,19.25mm ID x 25.46mm OD x 23.5mm L

pivot

2шт.

42

145474C1

PIN,19.05mm OD x 112mm L

cylinder mounting

2шт.

43

838-3655

PIN

roll, 6 x 55 mm, replaces 30570R1 pin

2шт.

44

388574R1

WASHER,16.51mm ID x 82.55mm OD x 4.78mm Thk

rockshaft arm retaining

2шт.

45

1342171C2

ROD ASSY.

link, potentiometer (Replaces 1342171C1)

1шт.

46

814-6055

BOLT,Hex, M6 x 1 x 55mm, Cl 8.8

4шт.

47

825-5146

SERRATED NUT,M6, Flg Ser

4шт.

50

1340666C1

HOUSING

potentiometer

1шт.

51

REF

INSTRUCTION

SHAFT - potentiometer (See Figure 4-18)

1шт.

52

493-81008

LOCK WASHER,Int Tooth, 5/16"

2шт.

53

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

54

425-115

NUT,5/16"-24, G5

1шт.

55

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

56

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

57

492-11038

LOCK WASHER,3/8"

1шт.

58

229937A1

SHIM

2.0 mm thick, rockshaft arm to cover, if used

1шт.

59

229936A1

SHIM

1.0 mm thick, rockshaft arm to cover, if used

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
