(2-010) - COOLANT RECOVERY SYSTEM, PRIOR TO TRACTOR P.I.N. JJA0064978

Запчасти Case IH 7230 (2-010) - COOLANT RECOVERY SYSTEM, PRIOR TO TRACTOR P.I.N. JJA0064978 (02) - ENGINE

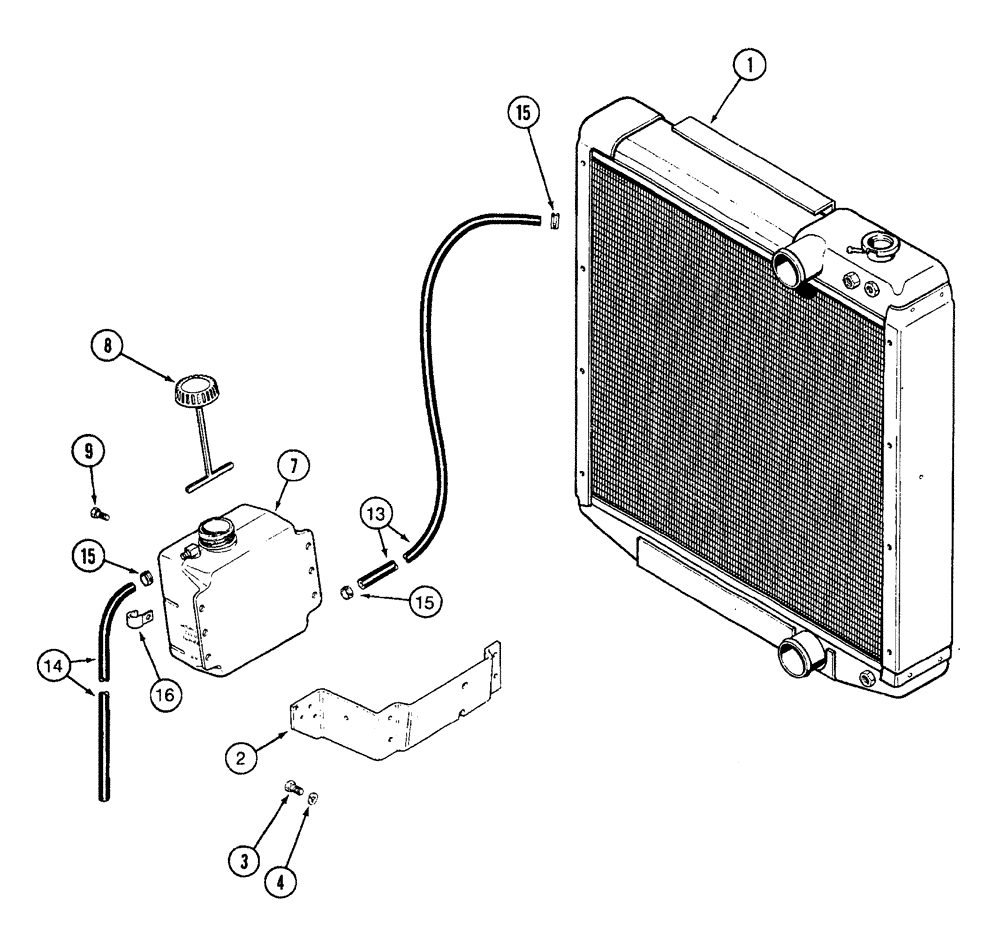

Схема запчастей Case IH 7230 - (2-010) - COOLANT RECOVERY SYSTEM, PRIOR TO TRACTOR P.I.N. JJA0064978 (02) - ENGINE
15
16
9
15
3
1
13
14
2
15
4
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

RADIATOR - coolant, engine, see Figure 2-2 for radiator options

1шт.

2

1289499C2

SUPPORT

BRACKET - container mounting

1шт.

3

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

4

892-11010

LOCK WASHER,M10

2шт.

7

A184395

RESERVOIR

BOTTLE - coolant recovery

1шт.

8

1547924C1

CAP

recovery bottle, non-vented

1шт.

9

281-34812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

4шт.

13

A172261

HOSE,7.92mm ID x 1820mm L, SAE 30R6

Cut from L126767 bulk hose

1шт.

14

1340641C1

HOSE

coolant recovery, 300 mm (11-13/16 inch) long

1шт.

15

A171099

HOSE CLAMP,13.2mm - 15.4mm

spring-type, hose retaining

3шт.

16

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

harness, replaces R54362 clamp

2шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.
