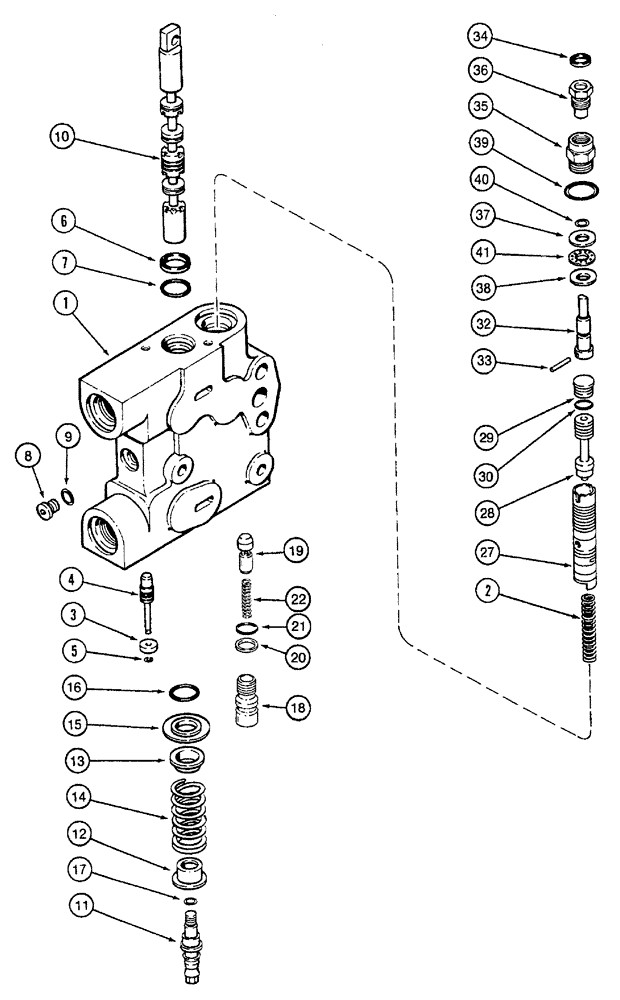

Запчасти Case IH 7230 (8-070) - HYDRAULIC REMOTE VALVE ASSEMBLY, SECOND, THIRD AND FOURTH REMOTE WITH LOAD CHECK (08) - HYDRAULICS

186761A3

VALVE

ASSEMBLY - remote hydraulic, if used, see note

1шт.

Before ordering parts, check your valve part number stamped on the valve body See Figures 8-64 - 8-68 for 1980450C7 remote valve.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

185448A2

SPRING

control, flow

1шт.

3

1957861C1

WASHER

retainer

1шт.

4

1957862C1

PISTON

load check

1шт.

5

1957859C1

SNAP RING

1шт.

6

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

WIPER - piston

1шт.

7

313247A1

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

piston

1шт.

8

86529630

PLUG,Hex Soc, 3/8"-24 ORB

1шт.

9

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

1543333C2

SPOOL

ASSEMBLY - main, no longer available, order 186761A3 valve assembly

1шт.

10

1542571C1

SPOOL

main

1шт.

11

246405A1

STUD

detent, replaces 1543364C1

1шт.

12

G108913

SPRING CUP

SEAT - outer

1шт.

13

G108914

SPRING CUP

SEAT - inner

1шт.

14

G108915

SPRING

centering

1шт.

15

G108630

HOLDER

RETAINER - O-ring

1шт.

16

G110391

O-RING,2.62mm Thk x 15.88mm ID, -114, 70 Duro

spool

1шт.

17

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

1542563C1

KIT

ASSEMBLY - load

1шт.

18

1994580C1

PLUG

check

1шт.

19

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

PLUG

1шт.

20

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

backup

1шт.

21

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

22

1994581C1

SPRING,6.1mm OD x 31.1mm L

load check

1шт.

140906A3

VALVE

ASSEMBLY - control, flow

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE - control

1шт.

28

NSS

NOT SOLD SEPARAT

SPOOL - control

1шт.

29

183491A1

PLUG

sleeve

1шт.

30

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 ID x 1/16 inch wide

1шт.

1343735C2

VALVE

CONTROL ASSEMBLY - flow adjustment

1шт.

Part of the Flow Control Adjustment Kit P/N 1343791C2

1шт.

32

1980302C2

ROD

ASSEMBLY - adjusting, flow

1шт.

33

138-56

LOCK PIN,1/8" x 11/16", Slotted

1шт.

34

G101066

SEAL,9.52mm ID x 14.45mm OD x 2.74mm Thk

oil

1шт.

35

1980226C1

PLUG

adjusting

1шт.

36

1980227C1

NUT

NUT - compression

1шт.

37

G108956

RACE,9.58mm ID x 20.37mm OD x 0.81mm Thk

bearing, thin

1шт.

38

G108957

RACE,9.58mm ID x 20.37mm OD x 1.59mm Thk

bearing, thick

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

40

1986628C1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

3/8 ID x 9/16 inch wide

5шт.

41

F13537

THRUST BEARING

thrust

1шт.

1343791C2

SET OF PARTS

KIT - flow control adjustment, includes 1343735C2 control assembly, plus instructions

1шт.
