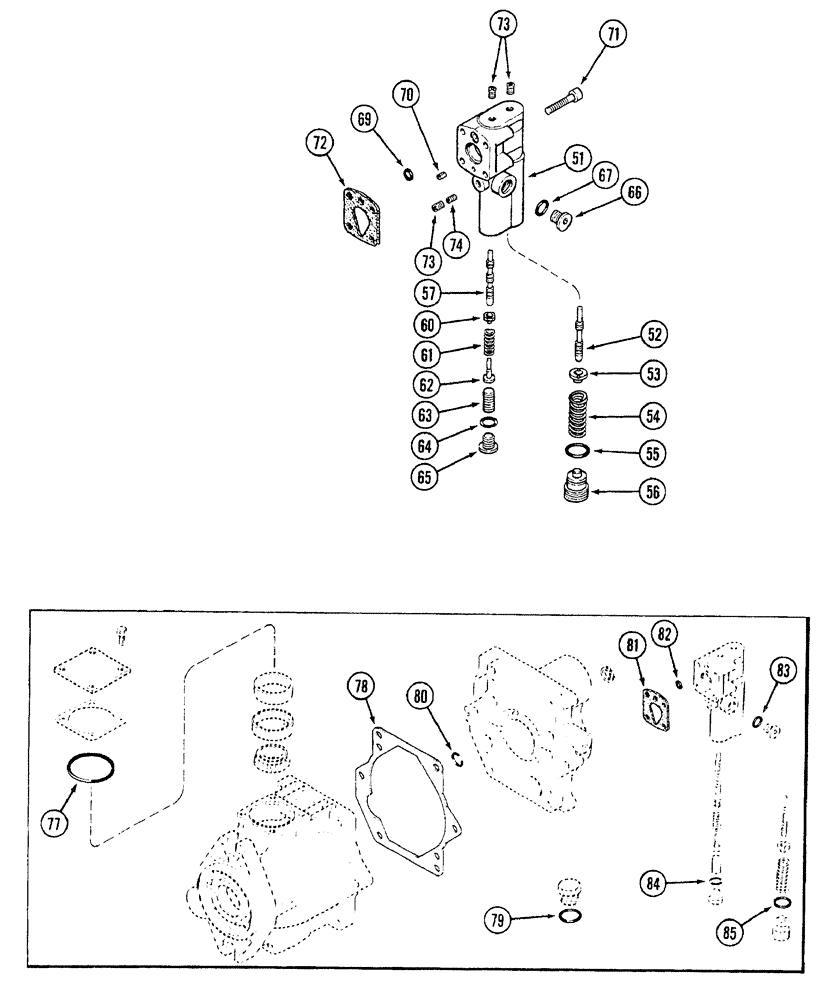

Запчасти Case IH 7230 (8-024) - HYDRAULIC PISTON PUMP ASSEMBLY (08) - HYDRAULICS

149619C3

PUMP,45.06 CC

ASSEMBLY - hydraulic piston (continued)

1шт.

1976861C1

PACKAGE

COMPENSATOR ASSEMBLY - pump

1шт.

51

A49832

VALVE

BODY - compensator

1шт.

52

A47316

SPOOL

pressure, limiter, no longer available, order 1976861C1 compensator assembly

1шт.

53

A47317

PLUG

SEAT - spool

1шт.

54

A47318

SPRING

spool

1шт.

55

238-8015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 8, 90 Duro

1шт.

56

A47320

PLUG

adjusting

1шт.

57

A47321

SPOOL

sensing, load, no longer available, order 1976861C1 compensator assembly

1шт.

60

NSS

NOT SOLD SEPARAT

SEAT - spool

1шт.

61

NSS

NOT SOLD SEPARAT

SPRING - spool

1шт.

62

NSS

NOT SOLD SEPARAT

SEAT - lower

1шт.

63

NSS

NOT SOLD SEPARAT

SCREW - set, spool

1шт.

64

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

65

A49437

PLUG

hex socket

1шт.

66

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

67

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

69

238-8011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

1шт.

70

NSS

NOT SOLD SEPARAT

SCREW - set

1шт.

71

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

4шт.

72

A49436

GASKET

mounting

1шт.

73

221-850

PLUG,Hex Soc, 1/16"-27

hex socket, 1/16 inch PT

3шт.

74

NSS

NOT SOLD SEPARAT

ORIFICE - valve

1шт.

1263244C2

PACKAGE

KIT - seal replacement

1шт.

77

238-6137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 6, 90 Duro

2шт.

78

A47280

GASKET,0.53mm Thk

housing

1шт.

79

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

80

238-8112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 8, 90 Duro

1шт.

81

A49436

GASKET

compensator

1шт.

82

238-8011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

1шт.

83

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

84

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

85

238-8015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 8, 90 Duro

1шт.
