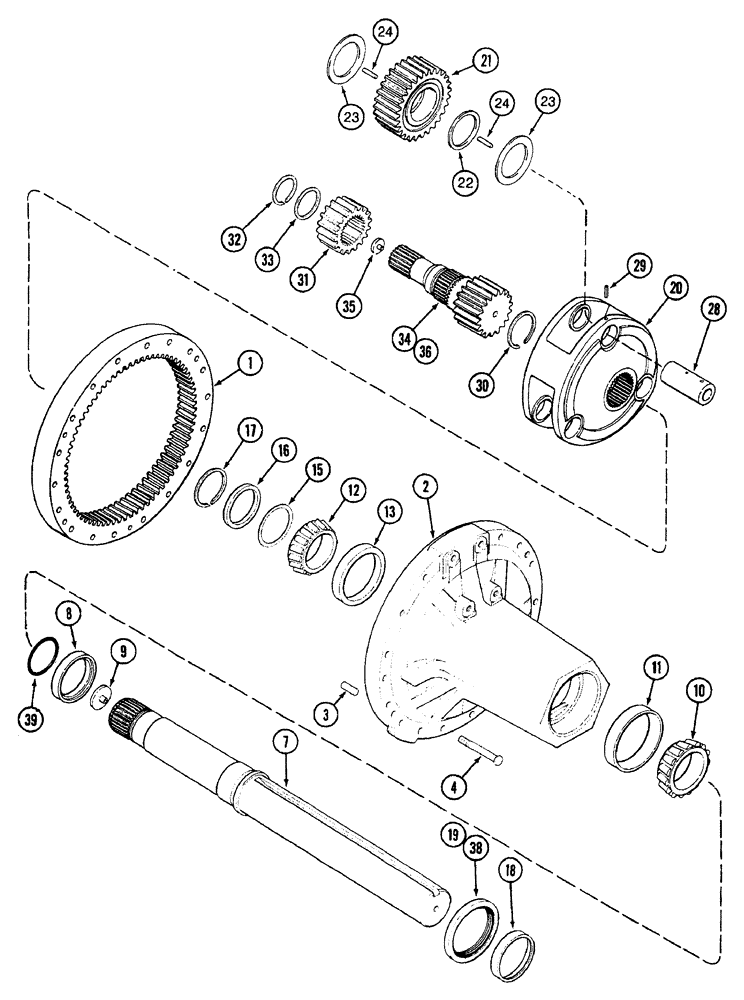

Запчасти Case IH 7230 (6-066) - REAR AXLE AND CARRIERS, 114 INCH AXLE (06) - POWER TRAIN

1

1259670C2

RING GEAR

axle

2шт.

2

1968489C1

CARRIER

ASSEMBLY - axle, includes (1 each) items 11 and 13

2шт.

3

837-16040

DOWEL,M16 x 40

Hardened

2шт.

4

813-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 8.8

BOLT - hex, 16 - 2.0 x 140 mm

32шт.

7

1968338C4

SHAFT

AXLE ASSEMBLY - rear (4 inch diameter x 114 inch)

2шт.

8

1968334C1

BUSHING,100.41mm ID x 119.85mm OD x 19.5mm L

spacer, bearing

1шт.

9

1981270C1

INSERT

rear axle

1шт.

10

630874C1

ROLLER BEARING,99.99mm ID x 41mm W

tapered roller

2шт.

11

630899C1

BEARING CUP

tapered roller

2шт.

12

123869R1

ROLLER BEARING,95.263 mm ID x 36.535 mm

tapered roller, inner

2шт.

13

619697C1

BEARING CUP,149.98mm OD x 26.90mm W

tapered roller

2шт.

1264591C1

SHIM KIT

shim, bearing, kit no longer available, order components

1шт.

15

143921C1

SHIM,95mm ID x 120mm OD x 0.76mm Thk

Bearing

1шт.

15

143922C1

SHIM,95mm ID x 120mm OD x 0.3mm Thk

Bearing

1шт.

15

143923C1

SHIM,95mm ID x 120mm OD x 0.13mm Thk

Bearing, 0.18 mm

1шт.

15

143924C1

SHIM,95mm ID x 120mm OD x 0.1mm Thk

Bearing (0.10 - 0.13 mm)

1шт.

15

143925C1

SHIM,95mm ID x 120mm OD x 0.08mm Thk

Bearing (0.06 to 0.09 mm)

1шт.

16

124744C1

WASHER,95.63mm ID x 120mm OD x 8mm Thk

thrust, axle

2шт.

17

1277020C2

RING

retaining

2шт.

94547C1

SEAL KIT

seal and sleeve, axle

2шт.

18

92687C1

SLEEVE

wear

1шт.

19

92689C1

SEAL

oil, oversize

1шт.

20

1349345C1

CARRIER

gear, planet

2шт.

21

1349350C2

PINION

GEAR - planet, 28 teeth

6шт.

22

1349348C1

THRUST RING

6шт.

23

1997886C1

THRUST WASHER

12шт.

24

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

348шт.

28

1349346C1

SHAFT

bearing, planet gear

6шт.

29

838-3826

PIN,M8 x 26, Coiled

Replaces 30355R1 pin

6шт.

30

101-11350

SNAP RING,#350, Ext

Replaces 598318R1

2шт.

31

1259732C1

HUB,47T Internal/18T External

adapter, brake

2шт.

32

101-11275

SNAP RING,#275, 2.594, Ext

Replaces 327059R1

2шт.

33

1259753C1

THRUST WASHER

adapter brake

2шт.

34

94652C3

SHAFT

sun gear, right (Shown)

1шт.

35

1981327C1

PLUG

PIN - shaft locator

1шт.

36

94651C2

SHAFT

sun gear, left (15 teeth)

1шт.

38

84842C1

OIL SEAL,120mm ID x 160.23mm OD x 12mm Thk

oil, regular

2шт.

39

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

2шт.
