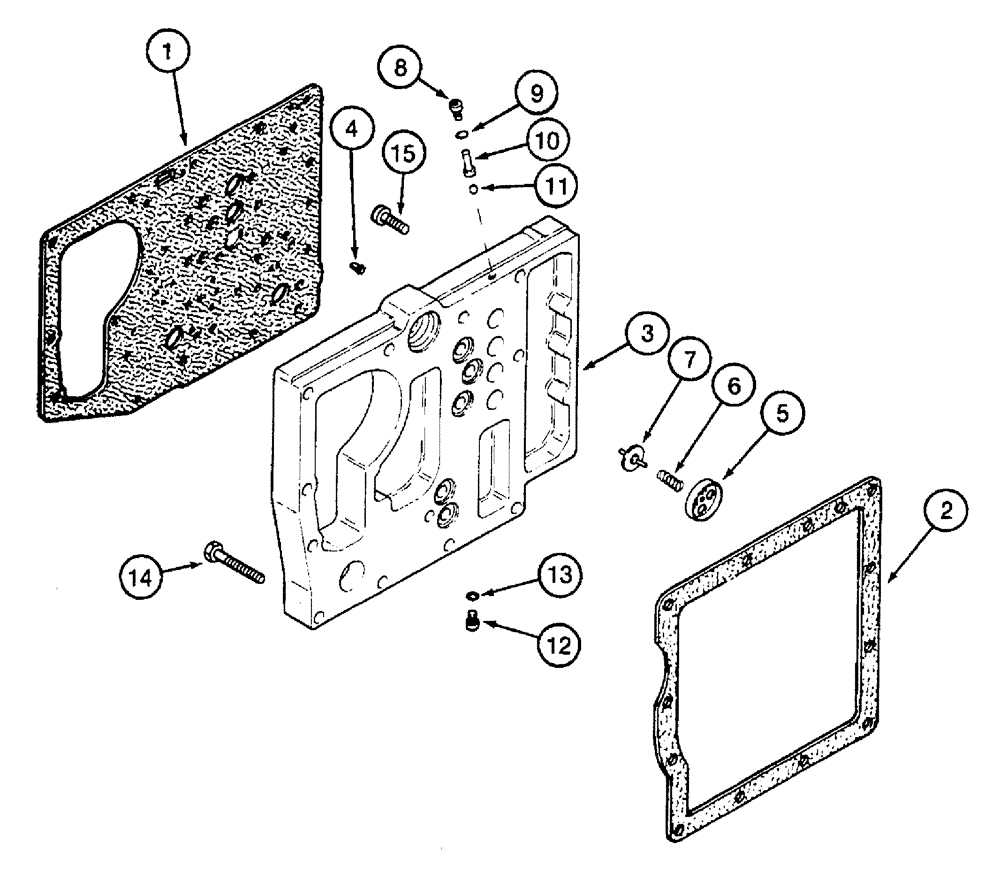

Запчасти Case IH 7230 (6-026) - TRANSMISSION CONTROL VALVE MOUNTING PLATE (06) - POWER TRAIN

1

1994583C2

GASKET,0.53mm Thk

body to mounting plate

1шт.

2

144143C2

GASKET,0.79mm Thk

mounting plate to clutch housing

1шт.

1994609C2

LARGE PLATE

PLATE, LARGE ASSEMBLY - mounting, transmission control valve

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - mounting, valve

1шт.

4

133519C1

SCREEN

filter

1шт.

5

1981235C2

PLUG

valve, poppet

1шт.

6

1975424C1

SPRING

check valve

1шт.

7

1975438C1

VALVE

check

1шт.

8

86529630

PLUG,Hex Soc, 3/8"-24 ORB

2шт.

10

47-212

RIVET,FH, 1/8" x 3/4"

flat head steel, 1/8 x 3/4 inch

1шт.

11

511-1060

BALL,6mm Dia

Grade 28, chrome alloy steel, Replaces 30935R1 ball

1шт.

12

76349

PLUG,9/16" - 18 ORB

3шт.

14

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

4шт.

15

863-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
