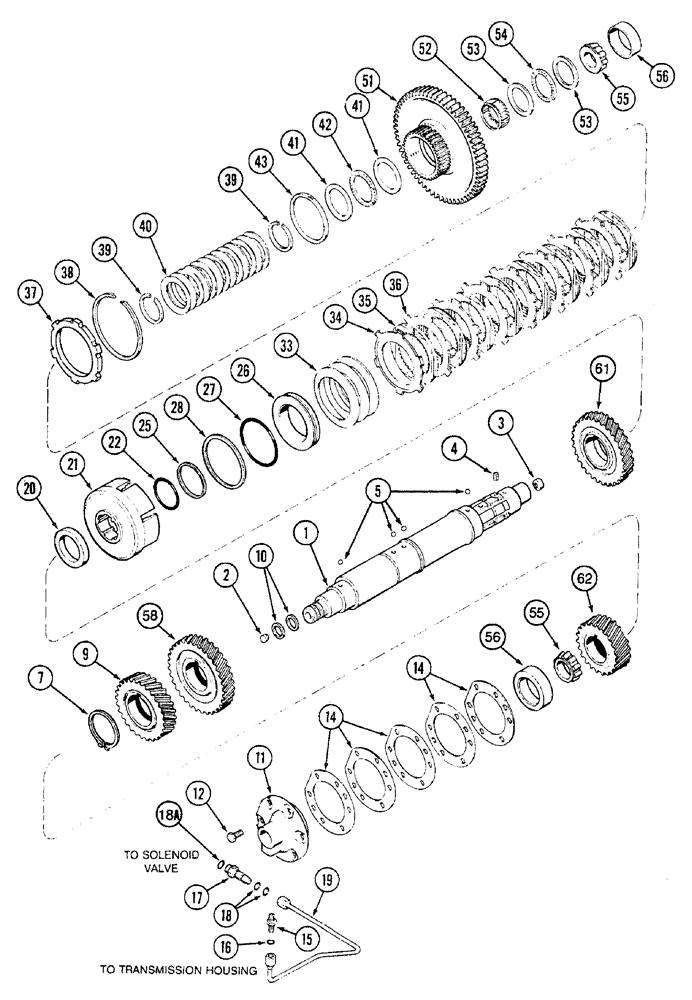

Запчасти Case IH 7230 (6-012) - TRANSMISSION SPEED, COUNTERSHAFT WITH CREEPER (06) - POWER TRAIN

1

1342318C2

SHAFT

COUNTER ASSEMBLY - transmission, replaces 1342318C1 shaft

1шт.

2

1286084C1

PIN,12.02mm OD x 11mm L

dowel, 12 x 11 mm, hardened

1шт.

3

92825C1

CAP WASHER

countershaft

1шт.

4

1963875C1

COTTER PIN

slotted spring

1шт.

5

211-1012

BALL,3/8" Dia

chrome alloy steel, 3/8 inch, grade 24, replaces 211-210 ball

4шт.

7

100-11293

SNAP RING,#293, Ext

Replaces 304697C1

1шт.

9

1285983C1

DRIVING GEAR

GEAR - driver, third and fourth, 34 teeth

1шт.

10

144242C3

RING,Locking, 28.43mm ID x 33.43mm OD x 3.8mm Thk

seal, 33 mm

2шт.

11

92828C1

BEARING ASSY,33 mm ID x 148 mm OD x 52.8 mm

bearing

1шт.

12

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

6шт.

1264551C2

STRIPPER PACKAGE

KIT - shim, bearing, kit no longer available, order components

1шт.

14

120647C2

SHIM,0.080mm Thk

Bearing

1шт.

14

120648C2

SHIM,0.100mm Thk

Bearing

1шт.

14

120649C2

SHIM,0.130mm Thk

Bearing

1шт.

14

120650C2

SHIM,0.300mm Thk

Bearing

1шт.

14

120651C2

SHIM,0.760mm Thk

Bearing

1шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

17

93104C2

UNION

UNION - bulkhead

1шт.

18a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

19

92848C1

TUBE,.375" OD

pressure

1шт.

20

92824C1

SPACER,63.65mm ID x 88.9mm OD x 14mm L

carrier

1шт.

21

92797C1

CLUTCH HOUSING

CARRIER

1шт.

22

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

piston, low clutch inner

1шт.

25

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

piston, clutch, shift

1шт.

26

1285998C1

PISTON

clutch

1шт.

27

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

piston, low clutch outer

1шт.

28

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

piston, shift

1шт.

33

93129C1

BELLEVILLE WASHER

Belleville spring, cushion

3шт.

34

93190C1

CLUTCH PLATE,107mm ID x 158mm OD x 2.01mm Thk

reaction

1шт.

35

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

friction

8шт.

36

92934C2

DISC

separator

7шт.

37

1342645C3

CLUTCH DISC

CLUTCH DISK backing, 9.7 mm thick

1шт.

38

1285996C1

SNAP RING,151mm OD, Internal

retaining

1шт.

39

93350C1

RING

retaining, external

2шт.

40

1286012C2

BELLEVILLE WASHER

Belleville spring, piston return

13шт.

41

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

bearing

2шт.

42

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

needle

1шт.

43

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

seal

1шт.

51

92795C1

PINION

GEAR - driven, creeper

1шт.

52

80906C1

BEARING ASSY,57.14mm ID x 66.7mm OD x 31.75mm W

needle, caged (1-1/4 inch)

1шт.

53

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

bearing

2шт.

54

K620185

THRUST BEARING

needle, thrust

1шт.

55

ST2051

TAPERED BEARING,1.75" ID x 3.6718" OD x 1.1875"

tapered roller

2шт.

56

ST863

BEARING CUP,93.22mm OD x 23.81mm W

tapered roller

2шт.

58

1285986C1

GEAR

GEAR - driven, first, third and fifth, 39 teeth

1шт.

61

1285989C1

GEAR

GEAR - driven, second, fourth and sixth, 37 teeth

1шт.

62

1285981C1

GEAR

GEAR - driver, first and second, 29 teeth

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
