Запчасти Case IH 7230 (5-014) - HYDRAULIC OIL COOLER, PRIOR TO TRACTOR PIN JJA0064978 (05) - STEERING

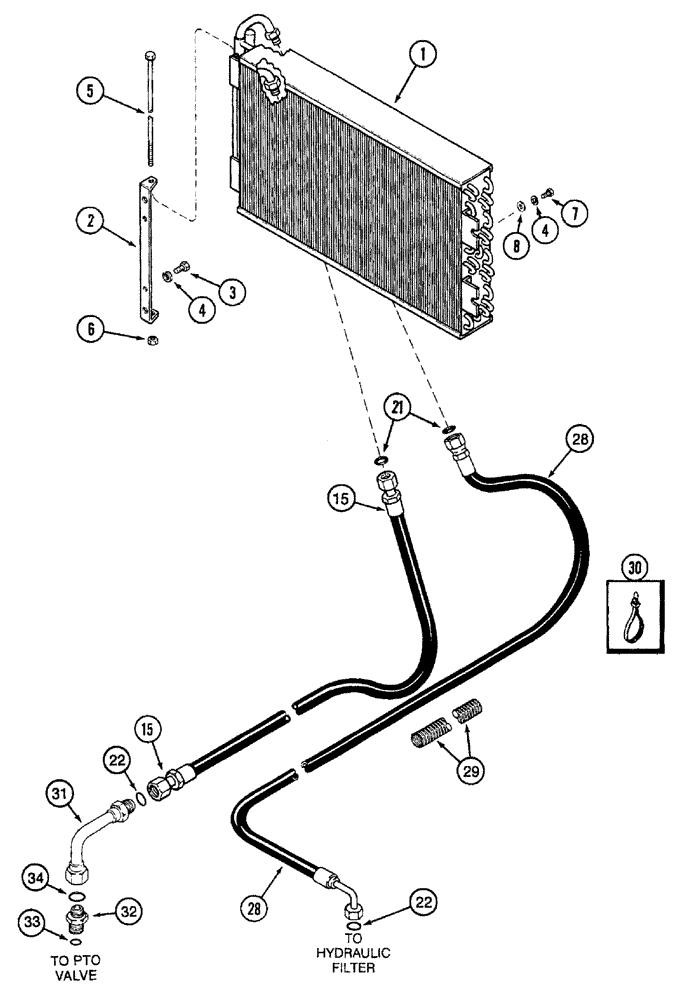

Схема запчастей Case IH 7230 - (5-014) - HYDRAULIC OIL COOLER, PRIOR TO TRACTOR PIN JJA0064978 (05) - STEERING
3
5
7
1
21
4
15
4
28
8
28
32
22
2
34
30
29
33
22
6
15
31

Артикул

Название

Примечание

Количество

1

1348392C2

COOLER, OIL

hydraulic oil, replaces 1348392C1 cooler

1шт.

2

A160194

SUPPORT

BRACKET - pivot, oil cooler

1шт.

3

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

4

492-11031

LOCK WASHER,5/16"

4шт.

5

103632A1

BOLT

BOLT - hex, 1/4 NC x 12-3/4 inch

1шт.

6

231-1444

NUT,1/4"-20, GB

1шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

8

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

15

1340524C1

HOSE ASSY.,19.05mm ID x 2781mm L, SAE 100R2

2781 mm (109-1/2 inch) long, cooler supply

1шт.

21

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

28

1348339C1

HOSE ASSY.,19.05mm ID x 3226mm L, SAE 100R1

cooler return, 3226 mm (127 inch) long

1шт.

29

1334592C4

PIPE

SLEEVE - corrugated, bulk, 41 (1-5/8) x 49 (1-15/16) x 585 mm (23-1/32 inch) long

1шт.

30

306132C1

CABLE TIE,14.5" L

CABLE STRAP Nylon

1шт.

31

1348391C1

HYD TUBE,0.75" OD, 106.1, 85 mm Length

cooler supply, mounts to PTO valve on Figure 8-6

1шт.

32

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Выбрано товаров: 18
