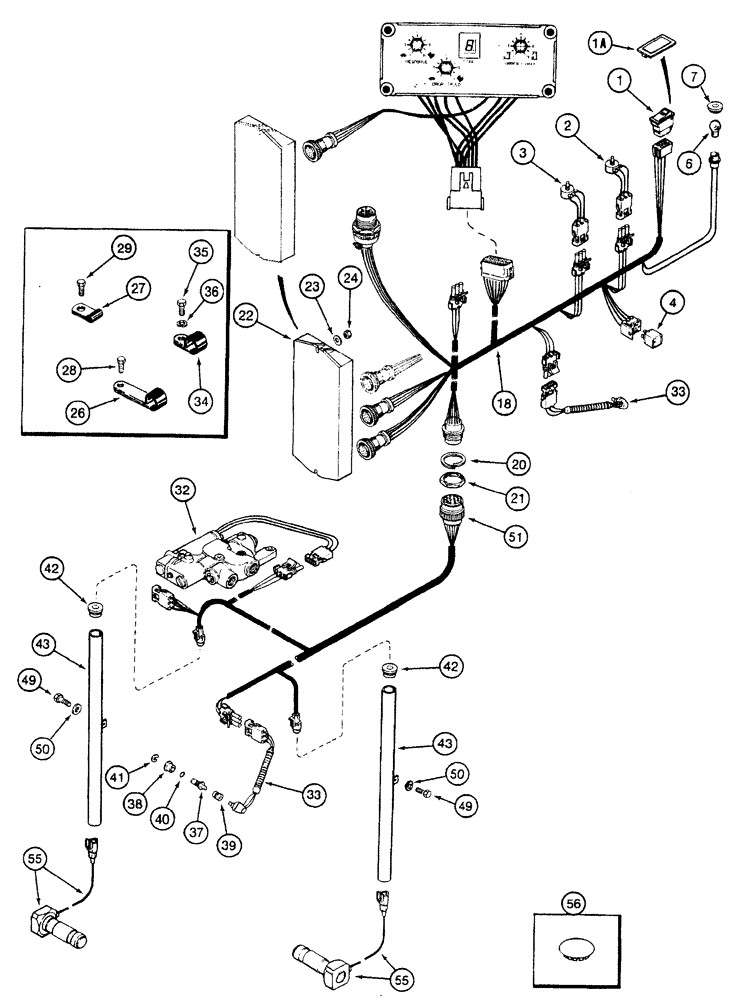

Запчасти Case IH 7220 (4-018) - HITCH CONTROL HARNESS (04) - ELECTRICAL SYSTEMS

1

113663A1

SWITCH

transport, field, momentary hitch raise/lower

1шт.

245911C1

TOGGLE SWITCH

rocker, three position

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

2 watt

1шт.

134608A1

LAMP SOCKET

SOCKET - bulb

1шт.

83883C1

SYMBOLS

SYMBOL LENS - black, decal, snap-in

1шт.

1a

245918C1

LENS

PLUG - rectangular blanking, without hitch

1шт.

2

A186061

POTENTIOMETER,10,000 Ohm, 8V

Electrical, Gauge, Hitch, Load

1шт.

See Fig. 8-26 for mounting

1шт.

3

A186061

POTENTIOMETER,10,000 Ohm, 8V

Electrical, Gauge, Sensitivity, Travel

1шт.

See Fig. 8-26 for mounting

1шт.

4

1983394C2

RELAY

mini, 12 volt, replaces 146461C1 relay

1шт.

6

781991C1

BULB,C2F, #182, 14.4V

lamp, hitch indicator

1шт.

7

96998C1

LENS

indicator lamp, amber

1шт.

14

235010A1

PANEL

secondary control, replaces 123473A1 panel

1шт.

See Fig. 8-26 for mounting

1шт.

18

122874A1

HARNESS

hitch control, console

1шт.

20

490691C1

LOCK WASHER,#18 Shell

lock

1шт.

21

490692C1

LOCK NUT,#18 Shell

hex, 1-1/2 inch

1шт.

22

305523A1

UNIT

MODULE - hitch, new, replaces 232835A2 and 112889A1 modules

1шт.

22

305523A2R

REMAN-MODULE

Magnum 7210, Magnum 7220 (10/93 - 12/96) Reman For New P/N 305523A1 & 305523A2

1шт.

22

305523A2C

CORE-MODULE

Return Number

1шт.

23

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

24

825-1406

NUT,M6, Cl 8

2шт.

26

133738A1

CLIP

CLAMP - P-type

2шт.

27

22-611

CLIP,ELECTRICAL

CLAMP - harness

1шт.

28

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

29

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

32

92949C5

VALVE

ASSEMBLY - hitch control, parts list fig 8-40

1шт.

33

114255A2

POTENTIOMETER,1000 Ohm, 8V

Gauge, Position

2шт.

34

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Replaces 49838 clamp

1шт.

35

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

36

892-11008

LOCK WASHER,8mm ID

1шт.

37

1348212C1

SHAFT

potentiometer sensor, see fig. 9-2 for housing

1шт.

38

A164914

BUSHING,12.72mm ID x 15.93mm OD x 15.75mm L

Sensor

2шт.

39

A162622

FLEXIBLE COUPLING

1шт.

40

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

41

100-3350

SNAP RING,#50, .392" Dia, E-Type

(Replaces 24075T1)

1шт.

42

1960765C2

GROMMET

harness

2шт.

43

1348057C1

TUBE,239 mm Length

harness

2шт.

49

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

50

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

If used

2шт.

51

1983255C2

HARNESS

hitch control, rear chassis

1шт.

55

1964916C3

PIN

lower link, hitch sensing

2шт.

56

205-61

HOLE PLUG BUTTON,1 1/2"

button, 1-1/2 inch, without hitch

1шт.
