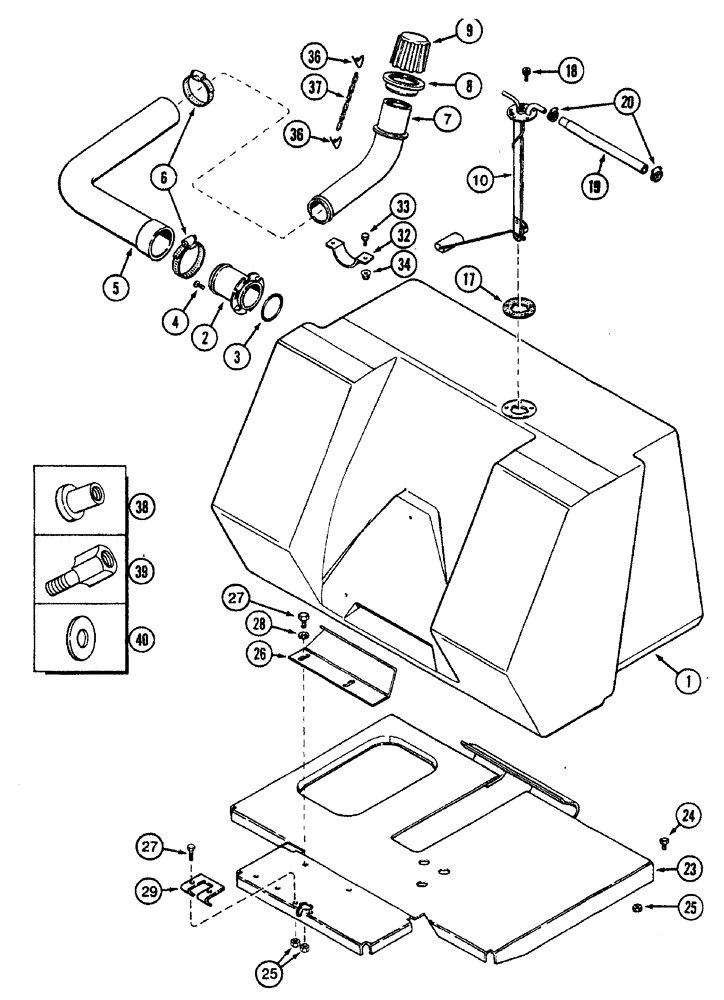

Запчасти Case IH 7220 (3-028) - MAIN FUEL TANK (03) - FUEL SYSTEM

1

255097A1

RESERVOIR

TANK ASSEMBLY - fuel, main, includes items 21-23 on fig.3-30 or 3-32, see note, replaces 96903C3 tank

1шт.

2

1283682C1

FUEL TUBE,66.05 mm OD

tank inlet

1шт.

3

97226C1

O-RING,4.04mm Thk x 64.82mm ID

fuel inlet

1шт.

4

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

6шт.

5

1283825C1

FUEL HOSE,63.50 mm ID, 66.70 mm ID x 382.00 mm, SAE 30R7

90 degree, Inlet

1шт.

6

214-1544

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm, W/ Liner

adj, 2-5/16 - 3-1/4 inch dia, hose retaining

2шт.

7

1283783C2

FUEL TUBE

filter

1шт.

8

1283807C1

COLLAR

filler neck

1шт.

9

1283826C2

CAP

fuel filler

1шт.

10

259110A1

FUEL GAUGE

SENDER - fuel level, models without auxiliary tank, see note, replaces 1987599C2 sender

1шт.

10

259111A1

FUEL GAUGE

SENDER - fuel level, models with auxiliary tank, see note, replaces 103003A2 sender, shown

1шт.

17

104812C3

GASKET,3.05mm Thk

fuel level sender

1шт.

18

193-563

SCREW,SEMS, Hex Hd, #10-24 x 3/4", G5

hex, with external tooth lock, No. 10 NC x 3/4 inch

5шт.

19

1283890C1

FUEL HOSE,15.90 mm ID x 272.00 mm, SAE J200

Tank vent

1шт.

20

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

23

120589A1

SUPPORT ASSY.

tank

1шт.

24

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

25

825-1410

NUT,M10, Cl 8

8шт.

26

137630C2

BRACKET

hold down, fuel tank

1шт.

27

1287737C1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT - hex, 10 x 25 mm, class 10.9, special

4шт.

28

1287738C2

WASHER

flat, 11 x 21 x 3 mm

2шт.

29

120587A1

SUPPORT

BRACKET - upper link

1шт.

32

1283792C1

MOUNTING CLIP

CLAMP - tube retaining

1шт.

33

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

34

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

36

1971391C1

CLIP

retainer, chain

2шт.

37

1971392C1

CHAIN (AG)

fuel cap, 10 inch

1шт.

38

A143035

NUT,31.75mm OD x 26.97mm L

FASTENER - stud

1шт.

39

120157C1

CONNECTOR, ELEC

CONNECTOR fuel tank

1шт.

40

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

flat

1шт.
