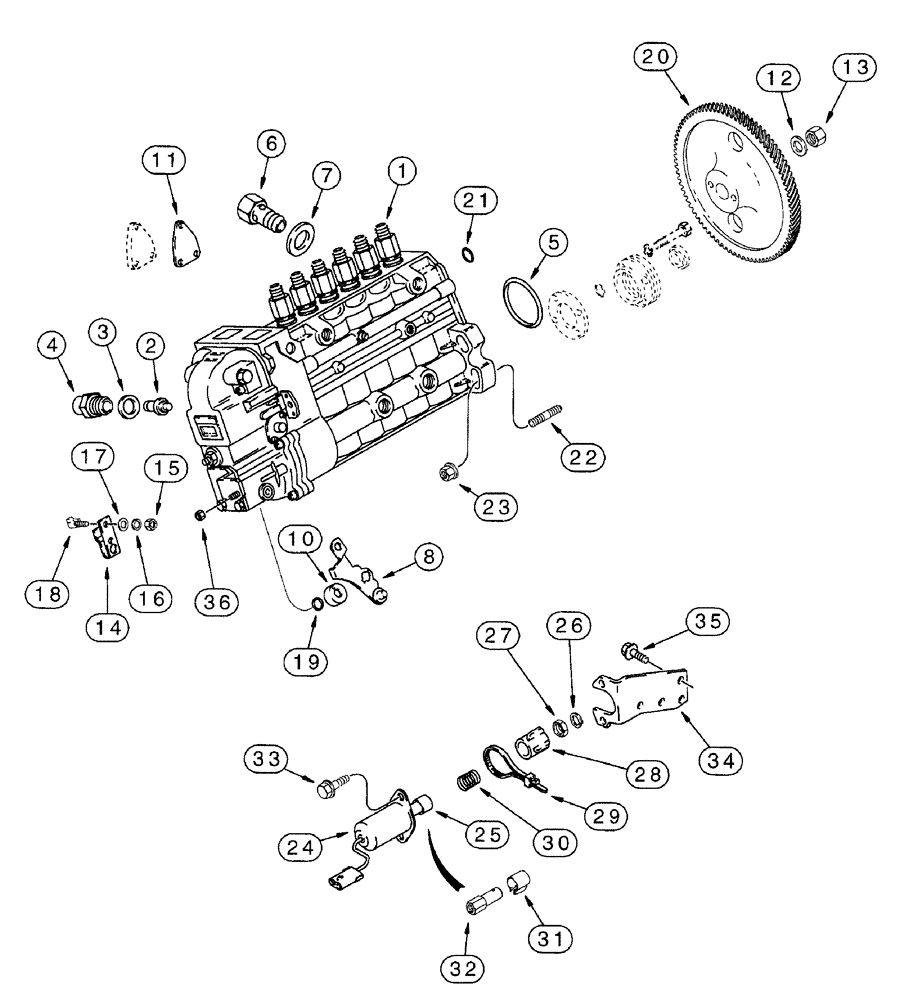

Запчасти Case IH 7220 (3-014) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE, 7220 TRACTOR ONLY, PRIOR TO P.I.N. JJA0064978 (03) - FUEL SYSTEM

1

J922145

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - fuel, new

1шт.

1

JR922145

REMAN-INJECTION PUMP

Assembly, Component Parts Shown On This Figure Do Not Apply To The Remanufactured Assembly

1шт.

1

JC922145

CORE-INJECTION PUMP

Return Part Number, Injection Pump

1шт.

JC913339

CORE

Return Part Number, Use This Part Number To Return Pump Core For Credit When Using a Remanufactured Assembly

1шт.

2

A77720

PIN

timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

4

J912888

PLUG

timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

sealing

1шт.

6

J913681

BANJO BOLT

VALVE - bolt, overflow

1шт.

7

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

Washer - Sealing, Special 14 x 20 x 1 mm

1шт.

8

J923230

LEVER

pump shutoff

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

A71110

GASKET

mounting

1шт.

12

A77775

LOCK WASHER

lock

1шт.

13

A41852

LOCK NUT

hex, self-locking

1шт.

14

1808728C1

LEVER

throttle control

1шт.

15

829-1306

NUT,M6, Cl 10

1шт.

16

892-11006

LOCK WASHER,M6

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

19

680187C1

O-RING,2.5mm Thk x 9mm ID

sealing, special

1шт.

20

J912614

GEAR

fuel pump

1шт.

21

J916284

O-RING

O-RING - sealing, fuel pump to gear housing

1шт.

22

J915036

STUD

pump mounting

4шт.

23

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

24

J928160

SOLENOID VALVE

fuel shutoff, 12 volt, replaces J923257 solenoid

1шт.

25

A77807

SET

KIT - plunger, ball socket and clip, no longer available, order one each of items 31 and 32

1шт.

26

492-11025

LOCK WASHER,1/4"

1шт.

27

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

28

J925171

BOOT

protective, plunger

1шт.

29

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

30

J923887

SPRING

return, plunger

1шт.

31

J923885

SPRING

CLIP - spring

1шт.

32

J928173

BALL JOINT

SOCKET

1шт.

33

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

hex flange, special, 6 - 1 x 20 mm

2шт.

34

J923254

SUPPORT

BRACKET - solenoid mounting

1шт.

35

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

36

832-10405

NUT,M5 x .8, Cl 8

1шт.
