Артикул
Название
Примечание
Количество

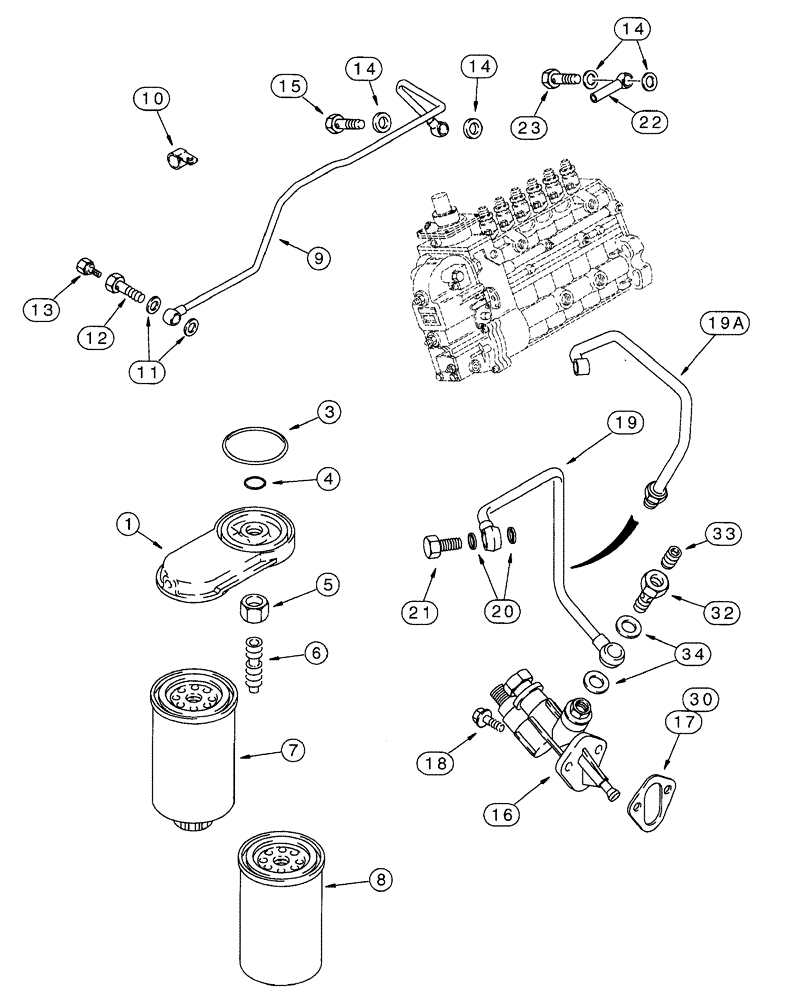

1
J897331
SUPPORT
HEAD - fuel filter
1шт.
3
SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39
SEALRING sealing, 70 mm ID, filter head
1шт.
5
J903293
JAM NUT
hex, special, 16 mm - 2.0
1шт.
6
J925955
ADAPTER,M16 x 1.5 x M16 x 1.5
fuel filter
1шт.
8
J903640
FILTER, FUEL
secondary
1шт.
9
J918873
FUEL TUBE,8 mm OD x 531.9, 92.9 mm L
supply, fuel
1шт.
10
J914711
CLIP
CLAMP - P-type
1шт.
11
J935171
SEALING WASHER
special, 12 x 19 x 1.5 mm, replaces J918191 washer
2шт.
12
J911446
BANJO BOLT,M12 x 1.5 x 24mm
1шт.
13
J905860
BANJO BOLT
BOLT ASSEMBLY - banjo hex, special
1шт.
15
J924725
BANJO BOLT,M14 x 1.5 x 26mm
connector
1шт.
16
J933252
FEED PUMP
lift, fuel, see J926764 repair kit below, replaces J925709 pump
1шт.
17
J931059
GASKET
mounting, fuel transfer pump, replaces J923054 gasket
1шт.
18
844-8020
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
2шт.
19
J918537
FUEL TUBE,8 mm OD x 278.9 mm L
supply, used with items 32, 33 and 34, if used
1шт.
19a
J918539
FUEL TUBE,8 mm OD x 320.7 mm L
supply, if used
1шт.
20
J935171
SEALING WASHER
special, 12 x 19 x 1.5 mm, replaces J918191 washer
2шт.
21
J916361
BANJO BOLT
banjo connector, 12 - 1.5 x 24 mm
1шт.
22
J911447
CONNECTOR, ELEC
CONNECTOR banjo, fuel return
1шт.
23
J912886
VALVE
overflow, see item 6, fig. 3-16
1шт.
24
J926764
GASKET KIT
transfer pump repair, no longer available, identify and order complete pump assembly, not shown
1шт.
25
NSS
NOT SOLD SEPARAT
VALVE - check, not shown
2шт.
26
NSS
NOT SOLD SEPARAT
GASKET - check valve, not shown
2шт.
27
NSS
NOT SOLD SEPARAT
O-RING - seal, not shown
1шт.
28
NSS
NOT SOLD SEPARAT
O-RING - seal, not shown
2шт.
29
NSS
NOT SOLD SEPARAT
O-RING - seal, not shown
1шт.
30
J923054
GASKET
mounting, fuel transfer pump
2шт.
31
NSS
NOT SOLD SEPARAT
VALVE - check, not shown
2шт.
32
J914037
BANJO BOLT
banjo connector, if used
1шт.
33
217-432
PLUG,Hex Soc, 1/4" - 18 NPTF
If used
1шт.
34
PACKING RING,14mm ID x 20mm OD x 1mm Thk
WASHER - sealing, special, 14 x 20 x 1 mm, if used
2шт.
Выбрано товаров: 35
