Запчасти Case IH 7220 (3-004) - FUEL INJECTION SYSTEM, 6T-830 EMISSIONS CERT. ENGINE, 7220 TRACTOR ONLY, P.I.N. JJA0064978 AND AFTER (03) - FUEL SYSTEM

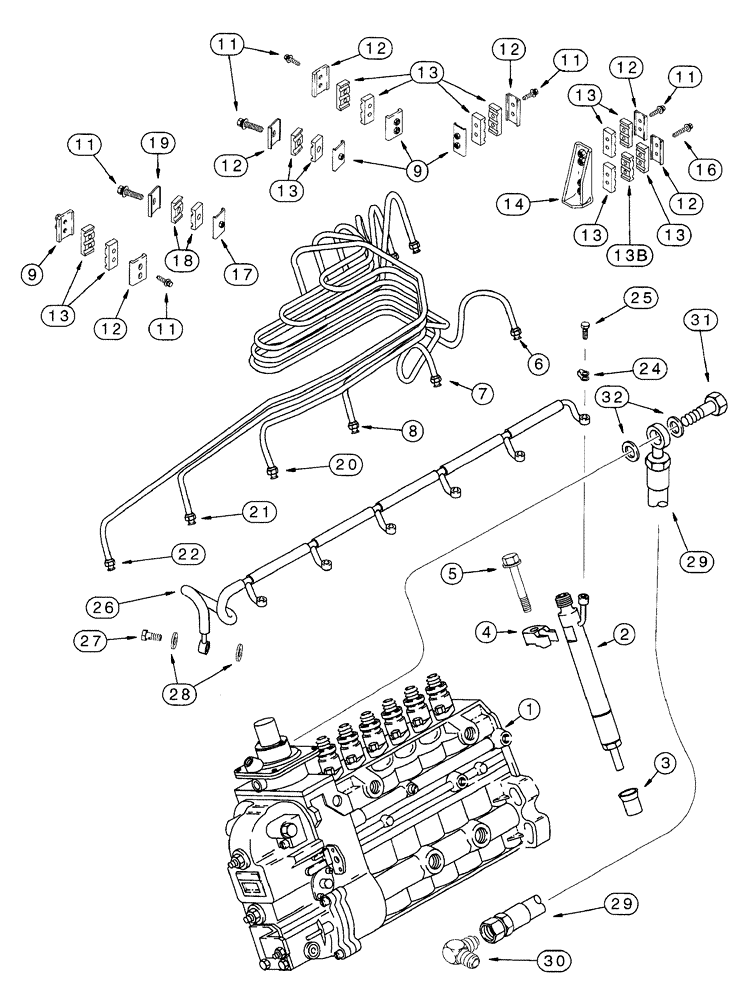

Схема запчастей Case IH 7220 - (3-004) - FUEL INJECTION SYSTEM, 6T-830 EMISSIONS CERT. ENGINE, 7220 TRACTOR ONLY, P.I.N. JJA0064978 AND AFTER (03) - FUEL SYSTEM
17
16
11
12
3
7
22
13
12
25
28
32
11
11
14
9
26
1
13
13
29
29
13b
9
4
20
19
31
12
24
12
11
11
18
27
8
13
12
2
6
30
5
21
13
12
13

Артикул

Название

Примечание

Количество

1

J926878

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY - fuel, new, parts list fig. 3-16

1шт.

1

JR926878

REMAN-INJECTION PUMP

1шт.

1

JC926878

CORE-INJECTION PUMP

Return Number

1шт.

2

J930525

INJECTOR ASSY.

fuel, parts list fig.3-20

6шт.

2

JR930525

REMAN-FUEL INJECTOR

6шт.

2

JC930525

CORE-FUEL INJECTOR

Return Number

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector, sealing

6шт.

4

J910279

CLAMP

fuel injector

6шт.

5

J922018

FLANGE BOLT

BOLT - heavy hex flange, 8 - 1.25 x 80 mm, class 12.9

6шт.

6

J930442

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

TUBE - fuel, No. 1 cylinder

1шт.

7

J930443

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

TUBE - fuel, No. 2 cylinder

1шт.

8

J930444

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

TUBE - fuel, No. 3 cylinder

1шт.

9

J917716

BRACE

BRACKET - fuel tube, supply

1шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

5шт.

12

J904519

SUPPORT

tube retaining

3шт.

13

J917747

CLAMP

fuel tube

6шт.

13b

J917748

CLAMP

fuel tube

1шт.

14

J917776

BRACE

fuel tube

2шт.

16

J920855

CAPTIVE WASHER SCREW

hex, captive washer, special, 5 - 0.8 x 35 mm

2шт.

17

J917717

BRACE

BRACKET - fuel tube

1шт.

18

J917746

CLAMP

fuel tube

2шт.

19

J904711

SUPPORT

BRACKET - fuel tube

1шт.

20

J931356

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

TUBE - fuel, No. 4 cylinder

1шт.

This Injection Line is for a Non After Cooled Engine.

1шт.

20

J930358

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - fuel, No. 4 cylinder

1шт.

This injection line is for a 6TA-830 After Cooled Engine.

1шт.

21

J930446

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

TUBE - fuel, No. 5 cylinder

1шт.

22

J930447

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

TUBE - fuel, No. 6 cylinder

1шт.

24

J903380

SEAL

connector

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

6шт.

26

J920595

TUBE ASSY.

fuel drain

1шт.

27

J924726

BANJO BOLT

check

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing, banjo fitting

2шт.

29

J916779

FUEL HOSE,508.00 mm

Cylinder Block To Injection Pump

1шт.

30

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

1шт.

31

J918002

BANJO BOLT

banjo, hose to injection pump

1шт.

32

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

WASHER - sealing, special, 10 x 15.5 x 1 mm

2шт.

Выбрано товаров: 37
