Запчасти Case IH 7220 (2-108) - ENGINE OVERHAUL KITS, 6T-830 AND 6TA-830 EMISSIONS CERTIFIED ENGINES, 7220 TRACTOR (02) - ENGINE

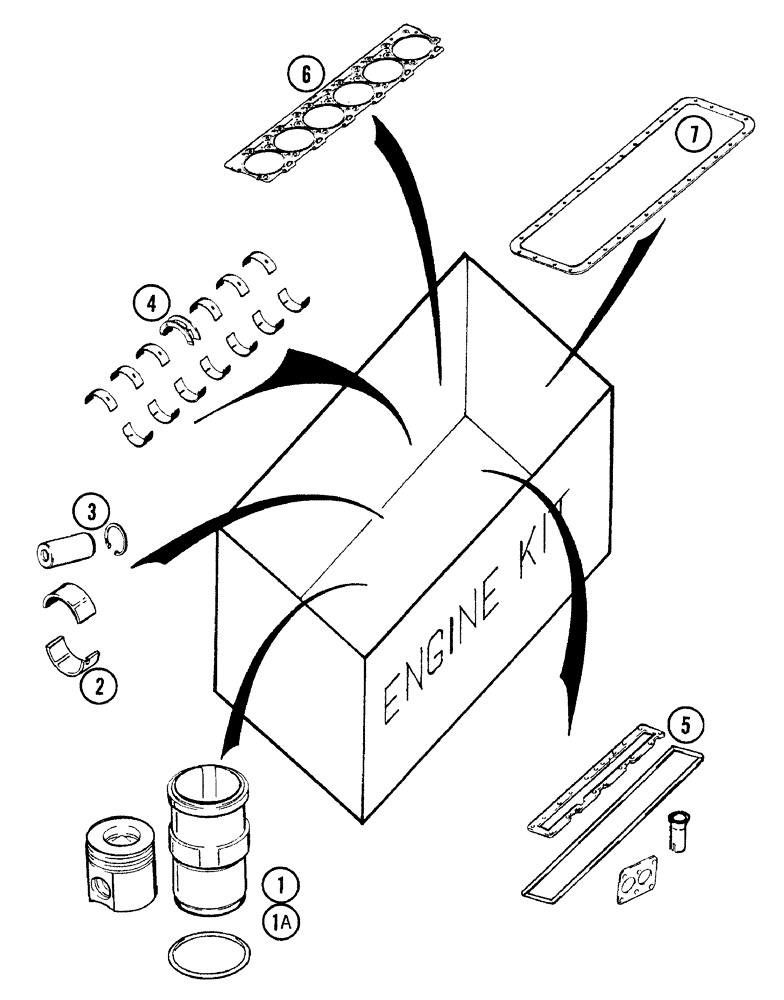

Схема запчастей Case IH 7220 - (2-108) - ENGINE OVERHAUL KITS, 6T-830 AND 6TA-830 EMISSIONS CERTIFIED ENGINES, 7220 TRACTOR (02) - ENGINE
6
1a
5
1
3
7
4
2

Артикул

Название

Примечание

Количество

A77885

PACKAGE, REPAIR

KIT - engine overhaul, Prior to Engine Serial Number 45636466

1шт.

1

A77854

PACKAGE, REPAIR

KIT - piston and sleeve, engine, see fig. 2-106, Prior to Engine Serial Number 45636466

6шт.

2

A77563

BEARING SET

KIT - upper and lower, standard, see fig. 2-106, Prior to Engine Serial Number 45636466

6шт.

3

J901597

PIN

piston, see fig. 2-106, Prior to Engine Serial Number 45636466

6шт.

4

A77711

BEARING LINER

main, upper and lower set, standard, see fig. 2-94, Prior to Engine Serial Number 45636466

6шт.

5

A77872

GASKET KIT

valve grind, includes high temperature exhaust manifold gasket, see fig. 2-110, Prior to Engine Serial Number 45636466

1шт.

6

J935585

GASKET

cylinder head, standard, see fig.. 2-56, Prior to Engine Serial Number 45636466

1шт.

7

A77679

GASKET KIT

oil pan, see fig. 2-52, Prior to Engine Serial Number 45636466

1шт.

A77913

PACKAGE, REPAIR

KIT - engine overhaul, Engine Serial Number 45636467 and After

1шт.

1a

A77912

PACKAGE, REPAIR

KIT - piston and sleeve, see fig. 2-106, Engine Serial Number 45636467 and After

6шт.

2

A77563

BEARING SET

KIT - upper and lower, standard, see fig. 2-106, Engine Serial Number 45636467 and After

6шт.

3

J901597

PIN

piston, see fig. 2-106, Engine Serial Number 45636467 and After

6шт.

4

A77711

BEARING LINER

main, upper and lower set, standard, see fig. 2-94, Engine Serial Number 45636467 and After

6шт.

5

A77872

GASKET KIT

valve grind, includes high temperature exhaust manifold gasket, see fig. 2-110, Engine Serial Number 45636467 and After

1шт.

6

J935585

GASKET

cylinder head, standard, see fig. 2-56, Engine Serial Number 45636467 and After

1шт.

7

A77679

GASKET KIT

oil pan, see fig. 2-52, Engine Serial Number 45636467 and After

1шт.

Выбрано товаров: 16
