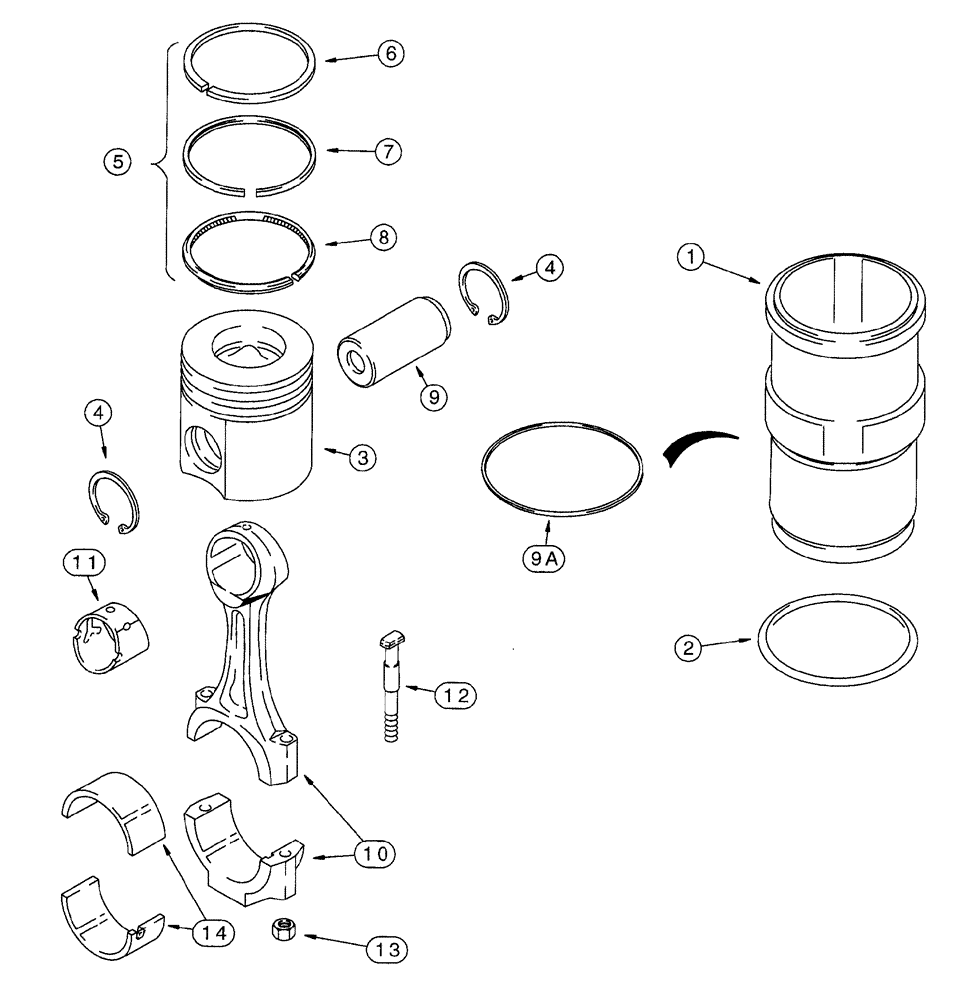

Запчасти Case IH 7220 (2-106) - PISTON AND CONNECTING ROD, 6T-830 EMISSIONS CERT. ENGINE, 7220 TRACTOR, P.I.N. JJA0064978 AND AFTER (02) - ENGINE

A77854

PACKAGE, REPAIR

KIT - piston and sleeve, engine, prior to engine serial number 45636467

6шт.

1

J919937

SLEEVE CYLINDER,114.02mm ID x 130.66mm OD x 237.12mm L

piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

sealing, cylinder sleeve, piston

1шт.

A77853

PISTON & RINGS KIT

engine, standard

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - engine

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

Piston

2шт.

5

A77802

PISTON RING SET

KIT

1шт.

6

NSS

NOT SOLD SEPARAT

RING - compression, top, piston

1шт.

7

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle, piston

1шт.

8

NSS

NOT SOLD SEPARAT

RING - oil, bottom, piston

1шт.

A77912

PACKAGE, REPAIR

KIT - piston and sleeve, engine serial number 45636467 and after

1шт.

1a

J944344

SLEEVE CYLINDER

piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

sealing, cylinder sleeve, piston

1шт.

A77853

PISTON & RINGS KIT

engine, standard

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - engine

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

Piston

2шт.

5

J802429

PISTON RINGS KIT

1шт.

6

NSS

NOT SOLD SEPARAT

RING - compression, top, piston

1шт.

7

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle, piston

1шт.

8

NSS

NOT SOLD SEPARAT

RING - oil, bottom, piston

1шт.

9

J901597

PIN

piston

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

Cylinder sleeve (.010"), Piston

1шт.

Use item 10 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

Cylinder sleeve (.015"), Piston

1шт.

Use item 10 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

Cylinder sleeve (.020"), Piston

1шт.

Use item 10 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924448

SHIM,0.762mm Thk

Cylinder sleeve (.030"), Piston

1шт.

Use item 10 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9a

J924449

SHIM,1.000mm Thk

Cylinder sleeve (.040"), Piston

1шт.

Use item 10 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

JR901383

REMAN-CONNECTING ROD

ASSEMBLY - North America only, component parts shown on this Figure do not apply to the remanufactured assembly

6шт.

JC901383

CORE-ROD CONNECTING

CORE-CONNECTING ROD RETURN NUMBER - use this part number to return for credit when using a remanufactured assembly

1шт.

J901383

CONNECTING ROD

ASSEMBLY

6шт.

84487529R

REMAN-CONNECTING ROD

7220 PISTON AND CONNECTING ROD, P.I.N. JJA0064978 AND AFTER (10/93 - 12/96), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

10

NSS

NOT SOLD SEPARAT

ROD - connecting, two-piece

1шт.

11

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

connecting rod

1шт.

12

J928870

ROD

BOLT - special, rod, bearing cap, connecting

2шт.

13

J934864

NUT

hex, rod bolt, replaces J901381 nut, connecting

2шт.

14

A77563

BEARING SET

KIT - upper and lower, standard, connecting rod

6шт.

14

A77564

BEARING SET

KIT - upper and lower, 0.25 mm undersize, connecting rod

6шт.

14

A77565

BEARING SET

KIT - upper and lower, 0.50 mm undersize, connecting rod

6шт.

14

A77566

BEARING SET

KIT - upper and lower, 0.75 mm undersize, connecting rod

6шт.

14

A77567

BEARING SET

KIT - upper and lower, 1.00 mm undersize, connecting rod

6шт.
