(2-072) - CAMSHAFT, 6T-830 EMISSIONS CERTIFIED ENGINE, 7220 TRACTOR, P.I.N. JJA0064978 AND AFTER

Запчасти Case IH 7220 (2-072) - CAMSHAFT, 6T-830 EMISSIONS CERTIFIED ENGINE, 7220 TRACTOR, P.I.N. JJA0064978 AND AFTER (02) - ENGINE

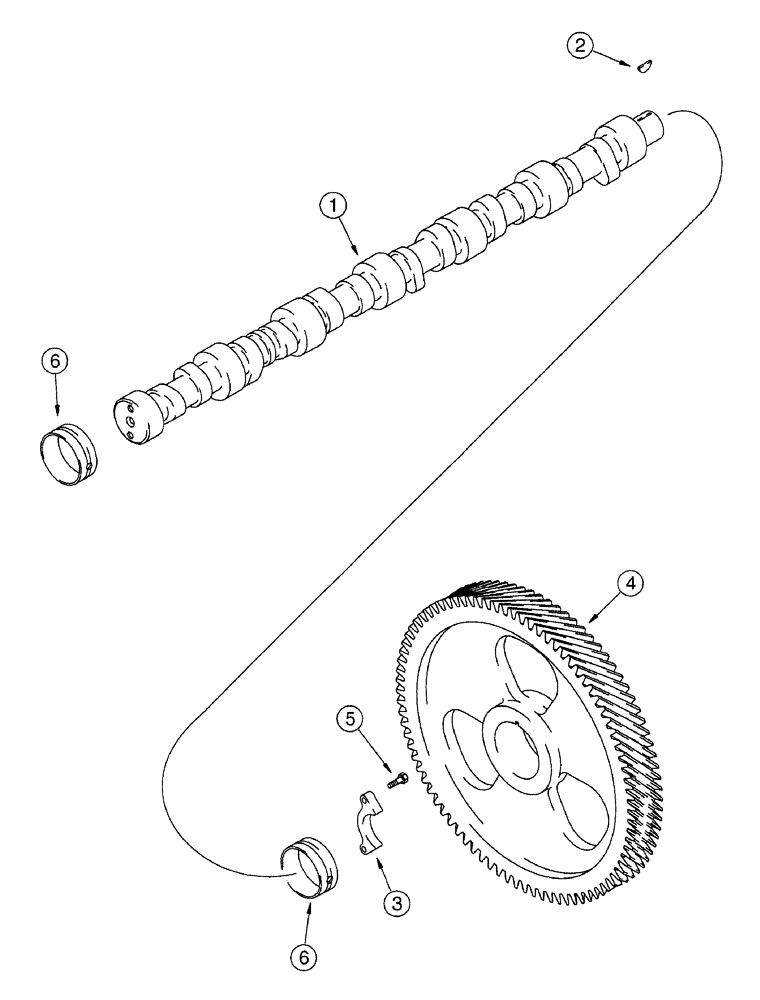

Схема запчастей Case IH 7220 - (2-072) - CAMSHAFT, 6T-830 EMISSIONS CERTIFIED ENGINE, 7220 TRACTOR, P.I.N. JJA0064978 AND AFTER (02) - ENGINE
3
2
6
1
6
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J923478

CAMSHAFT

engine, replaces J924471 camshaft

1шт.

1

J923478R

REMAN-CAMSHAFT

7220, P.I.N. JJA0064978 & Aft.

1шт.

1

J923478C

CORE-CAMSHAFT

Return Number

1шт.

2

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

Replaces 126-112 key

1шт.

3

J927155

SUPPORT

thrust, camshaft

1шт.

4

J918777

GEAR

GEAR - camshaft, steel, replaces J917328 gear

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

J901685

BUSHING

camshaft

7шт.
