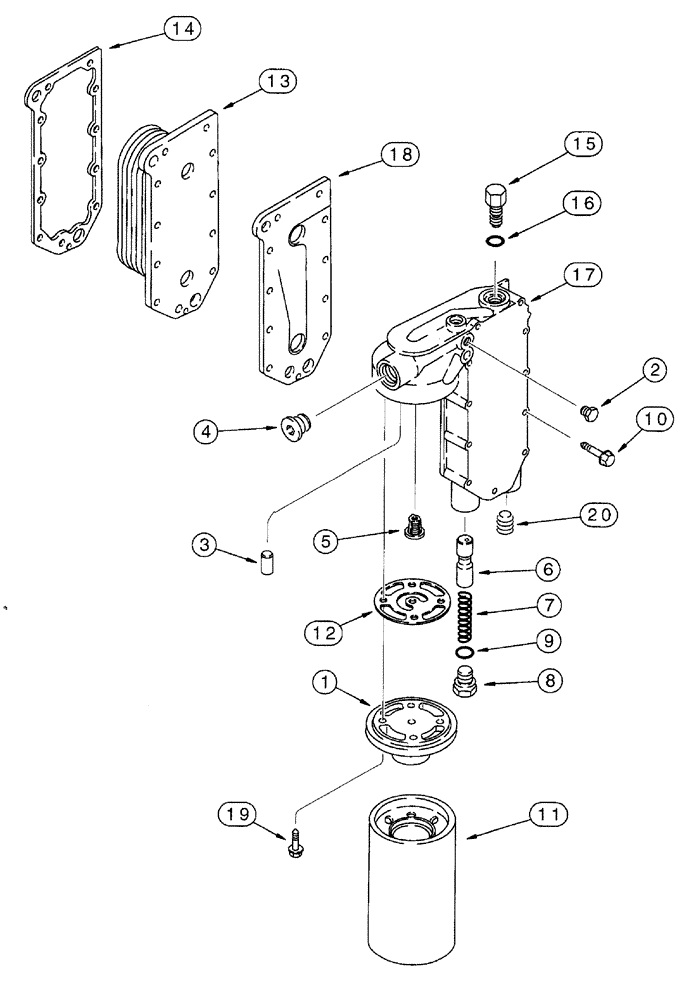

Запчасти Case IH 7220 (2-048) - OIL FILTER AND COOLER, 6T-830 EMISSIONS CERTIFIED ENGINE, 7220 TRACTOR, P.I.N. JJA0064978 & AFTER (02) - ENGINE

1

J918334

FILTER HEAD

Oil

1шт.

2

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

2шт.

3

A77722

PIN,7.95mm OD x 12.83mm L

dowel, locating

1шт.

4

A77505

PLUG

hex socket, 3/4 inch PT, filter head

1шт.

5

J933615

VALVE

relief, pressure, replaces J927622 valve

1шт.

6

J918532

PLUNGER

regulator

1шт.

7

A77541

SPRING

compression

1шт.

8

J919016

PLUG

hex, special, 24 mm - 1.50, regulator, if used, with J922882 cover, includes item 9, O-ring

1шт.

8a

J931084

PLUG

hex, special, 24 mm - 1.50, regulator, if used, with J931077 cover, includes item 9A, seal, not shown

1шт.

9

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

Used with J919016 plug

1шт.

9a

J930911

O-RING,0.07" Thk x 0.8" ID

SEAL - O-ring, used with J931084 plug, not shown

1шт.

10

845-8065

BOLT,Hvy Hex, M8 x 65mm, Cl 8.8

Heavy, Oil filter head to cylinder block

11шт.

11

J919562

ENGINE OIL FILTER

oil, cartridge, engine

1шт.

12

J921605

GASKET

filter head

1шт.

13

J918175

CORE, RADIATOR

1шт.

14

J918174

GASKET,0.71mm Thk

cooler core

1шт.

J934410

BY-PASS VALVE

THERMOSTAT ASSEMBLY - temperature, replaces J923477 thermostat

1шт.

15

NSS

NOT SOLD SEPARAT

VALVE - bypass, temperature

1шт.

16

A77724

O-RING,3.05mm Thk x 23.62mm ID

sealing

1шт.

17

J922882

COVER

oil cooler, no longer available, order J931077 cover and item 8A, J931084 plug

1шт.

17

J931077

COVER

oil cooler, replaces J922882 cover

1шт.

18

J929011

GASKET,1.19mm Thk

cooler cover, oil

1шт.

19

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

4шт.

20

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

Headless, Water drain

1шт.
