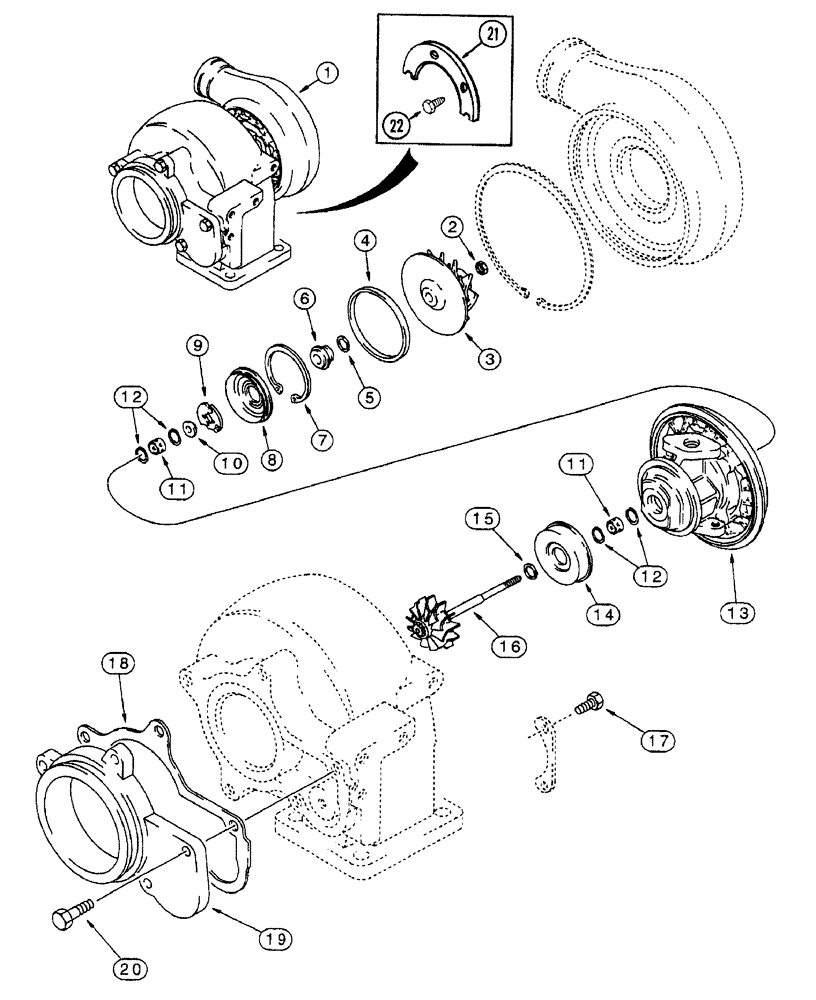

Запчасти Case IH 7220 (2-042) - TURBOCHARGER ASSENBLY, 6T-830 EMISSIONS CERT. ENGINE, 7220 TRACTOR, P.I.N. JJA0064978 AND AFTER (02) - ENGINE

1

J535789

TURBOCHARGER

ASSEMBLY - engine, new, replaces J919199 assembly

1шт.

JR535789

REMAN-TURBOCHARGER

Remanufactured TURBOCHARGER, ASSEMBLY - engine, component parts shown on this Figure do not apply to the remanufactured assembly, 7220 Tractor

1шт.

JC535789

CORE-TURBOCHARGER

RETURN NUMBER - use this part number to return for credit when using a remanufactured assembly, 7220 Tractor

1шт.

2

NSS

NOT SOLD SEPARAT

NUT - lock

1шт.

Part of the Overhaul Kit P/N J575169

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER - turbocharger

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - O-ring

1шт.

Part of the Overhaul Kit P/N J575169

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - split ring

1шт.

Part of the Overhaul Kit P/N J575169

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

7

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of the Overhaul Kit P/N J575169

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

Part of the Overhaul Kit P/N J575169

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - turbocharger thrust

1шт.

Part of the Overhaul Kit P/N J575169

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - turbocharger

2шт.

Part of the Overhaul Kit P/N J575169

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

Part of the Overhaul Kit P/N J575169

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - bearing turbine

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD - turbine heat

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - split ring

1шт.

Part of the Overhaul Kit P/N J575169

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR AND SHAFT - turbocharger

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW - set, hex head

6шт.

Part of the Overhaul Kit P/N J575169

1шт.

18

J535243

GASKET,0.25mm Thk

adapter

1шт.

19

J528010

ADAPTER

connection, replaces J533030 adapter

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

21

J534309

PLATE

clamping

2шт.

22

J759917

SET SCREW

set, hex head

6шт.

J535324

CARTRIDGE

CENTER ASSEMBLY - turbocharger, includes items 2-16

1шт.

J575169

REPAIR KIT

KIT - overhaul, turbocharger, Includes: REF #s 2, 4, 5, 7, 8, 9, 11, 12, 15, 17, and part # J575169

1шт.
