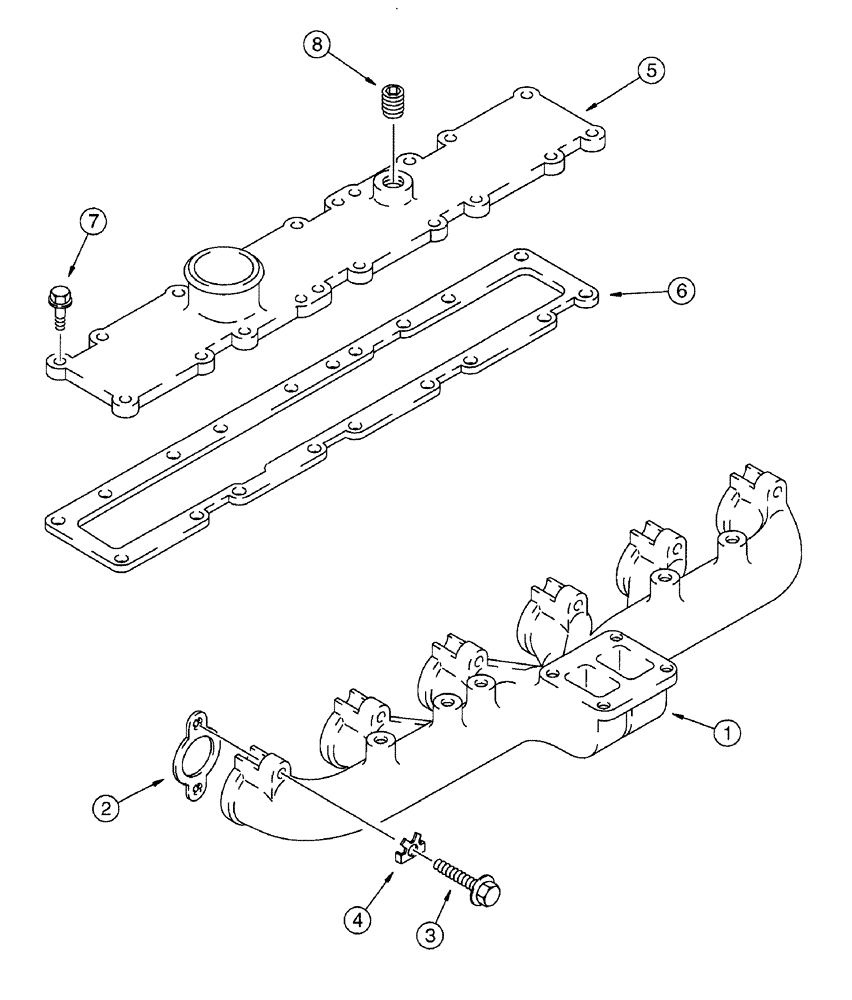

Запчасти Case IH 7220 (2-034) - MANIFOLDS, 6T-830 EMISSIONS CERTIFIED ENGINE, 7220 TRACTOR ONLY, P.I.N. JJA0064978 AND AFTER (02) - ENGINE

1

J932183

EXHAUST MANIFOLD

exhaust, replaces J929779 manifold

1шт.

2

J929012

GASKET,0.5mm Thk

exhaust manifold, 0.54 mm thick, if used

6шт.

3

J929537

BOLT

Exhaust manifold to cylinder head

12шт.

4

J914708

LOCKING PLATE

manifold bolt, exhaust

12шт.

5

J922648

COVER ASSY

intake manifold

1шт.

6

J914311

MANIFOLD GASKET

intake manifold cover

1шт.

7

845-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 8.8

Intake manifold cover to cylinder head

18шт.

8

A77429

PLUG

hex socket, 1/2 inch PT, intake

1шт.
