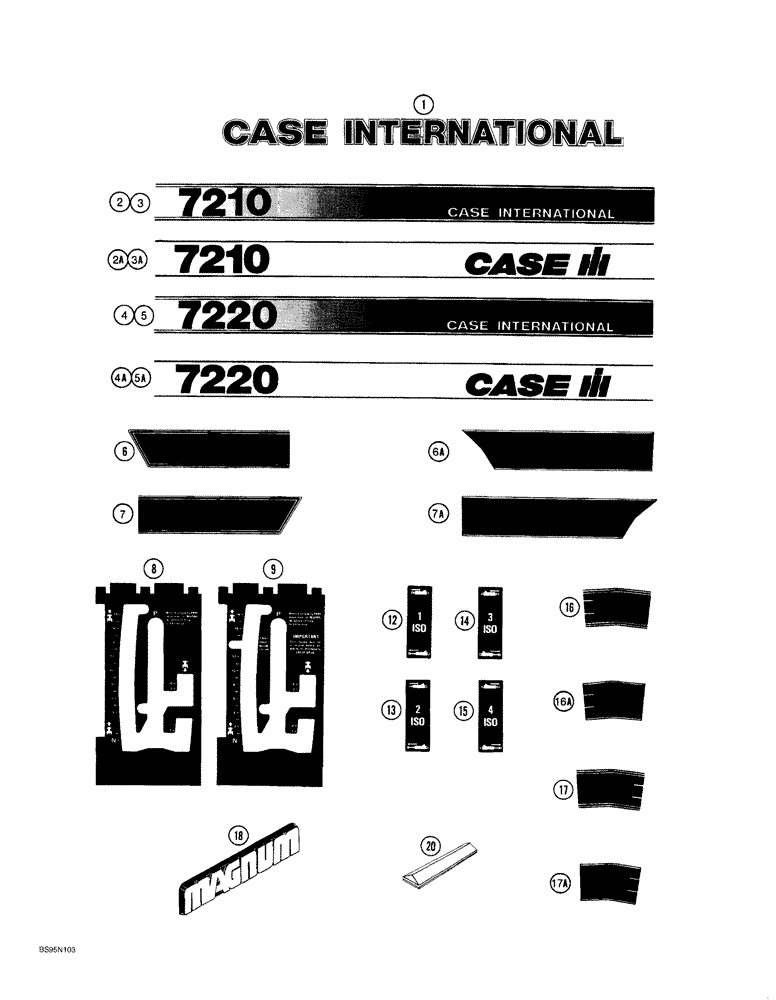

Запчасти Case IH 7220 (9-146) - DECALS, TRACTOR (09) - CHASSIS/ATTACHMENTS

1

1342052C1

DECAL

Case International, if used

1шт.

2

129163A1

DECAL

7210, Case International, hood, left-hand side (shown), if used

1шт.

2a

196883A1

DECAL

7210, Case IH, hood, left-hand side (shown), if used

1шт.

3

129164A1

DECAL

7210, Case International, hood, right-hand side, if used

1шт.

3a

196881A1

DECAL

7210, Case IH, hood, right-hand side, if used

1шт.

4

129165A1

DECAL

7220, Case International, hood, left-hand side (shown), if used

1шт.

4a

196885A1

DECAL

7220, Case IH, hood, left-hand side (shown), if used

1шт.

5

129166A1

DECAL

7220, Case International, hood, right-hand side, if used

1шт.

5a

196884A1

DECAL

7220, Case IH, hood, right-hand side, if used

1шт.

6

1334444C1

DECAL

door, stripe, right-hand side (silver and gray outer stripes), if used

1шт.

6a

197290A1

DECAL

door, stripe, right-hand side (silver outer stripe), if used

1шт.

7

1334445C3

DECAL

door, stripe, left-hand side (silver and gray outer stripes), if used

1шт.

7a

197291A1

DECAL

door, stripe, left-hand side (silver outer stripe), if used

1шт.

8

1340033C3

DECAL

shift selector, 4-speed reverse without creeper, if used

1шт.

8a

1941361C3

DECAL

shift selector, 2-speed reverse without creeper, (not shown), if used

1шт.

9

1340034C3

DECAL

shift selector, 4-speed reverse with creeper, if used

1шт.

9a

1941360C3

DECAL

shift selector, 2-speed reverse with creeper, (not shown), if used

1шт.

12

1334581C2

DECAL

1 ISO, first coupler

1шт.

13

1334582C2

DECAL

2 ISO, second coupler

1шт.

14

1334583C3

DECAL

3 ISO, third coupler

1шт.

15

1334584C3

DECAL

4 ISO, fourth coupler

1шт.

16

1334457C2

DECAL

stripe, cab pillar, left-hand side (silver and gray outer stripes), if used

1шт.

16a

197289A1

DECAL

stripe, cab pillar, left-hand side (silver outer stripe), if used

1шт.

17

1334456C2

DECAL

stripe, cab pillar, right-hand side (silver and gray outer stripes), if used

1шт.

17a

197288A1

DECAL

stripe, cab pillar, right-hand side (silver outer stripe), if used

1шт.

18

1342040C1

SYMBOLS

SYMBOL EMBLEM - Magnum, if used, for Magnum emblem on instrument panel cover, see fig. 9-46 or fig. 9-34 for the grille screen with Magnum

1шт.

20

1968108C2

TRIM

TRIM - hood sight

1шт.
