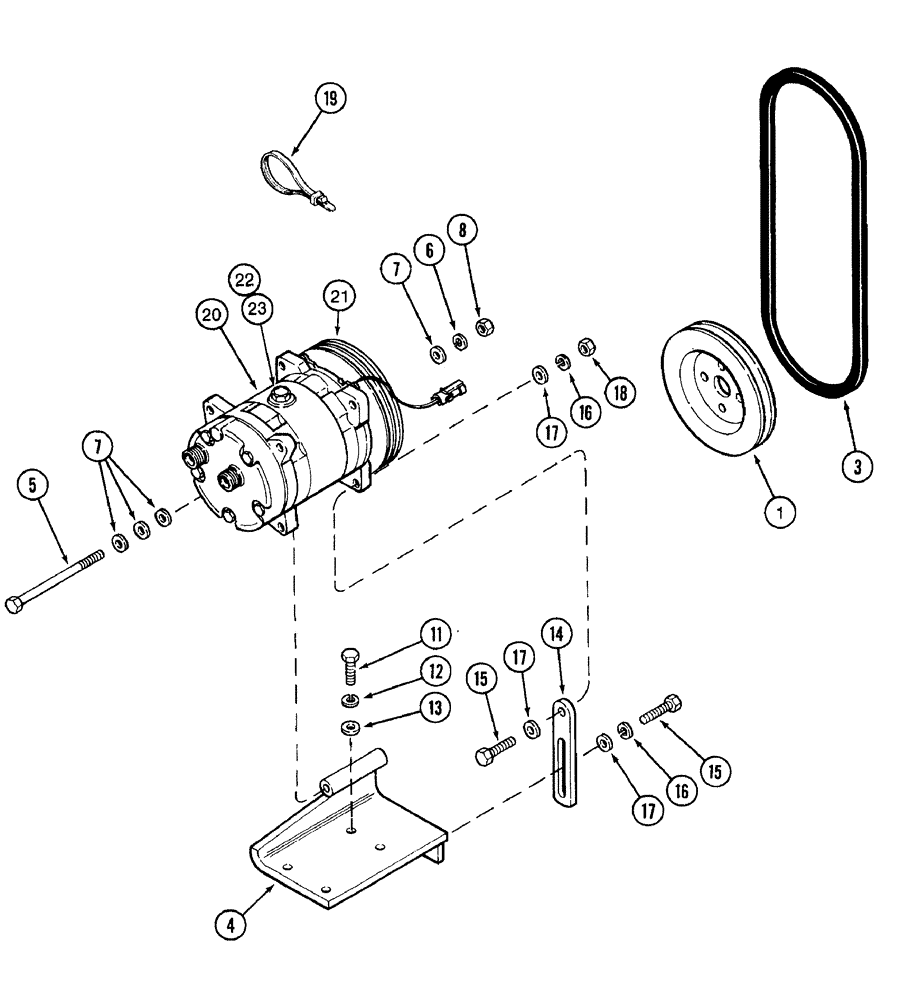

Запчасти Case IH 7220 (9-140) - AIR CONDITIONING, COMPRESSOR MOUNTING AND DRIVE, PRIOR TO TRACTOR P.I.N. JJA0064978 (09) - CHASSIS/ATTACHMENTS

1

A189155

PULLEY

compressor drive

1шт.

3

131403C1

V-BELT,0.50" W x 38.50" L

Drive, Compressor

1шт.

4

84715C1

BRACKET

SUPPORT - compressor mounting

1шт.

5

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

1шт.

6

892-11010

LOCK WASHER,M10

1шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

8

825-1410

NUT,M10, Cl 8

1шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

12

892-11010

LOCK WASHER,M10

4шт.

13

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

14

84716C1

SUPPORT

STRAP - adjusting

1шт.

15

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

16

892-11010

LOCK WASHER,M10

2шт.

17

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

18

825-1410

NUT,M10, Cl 8

2шт.

19

306132C1

CABLE TIE,14.5" L

CABLE STRAP

2шт.

1999755C2

COMPRESSOR

ASSEMBLY - air conditioning

1шт.

86993462R

REMAN-COMPRESSOR

7210, 7220 both PRIOR TO TRACTOR P.I.N. JJA0064978 (10/93-12/96); Reman For New P/N 1999755C2

1шт.

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

20

NSS

NOT SOLD SEPARAT

COMPRESSOR - air conditioning

1шт.

21

135324A1

CLUTCH

ASSEMBLY - compressor

1шт.

22

A49667

PLUG

hex, oil filler

1шт.

23

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

1шт.
