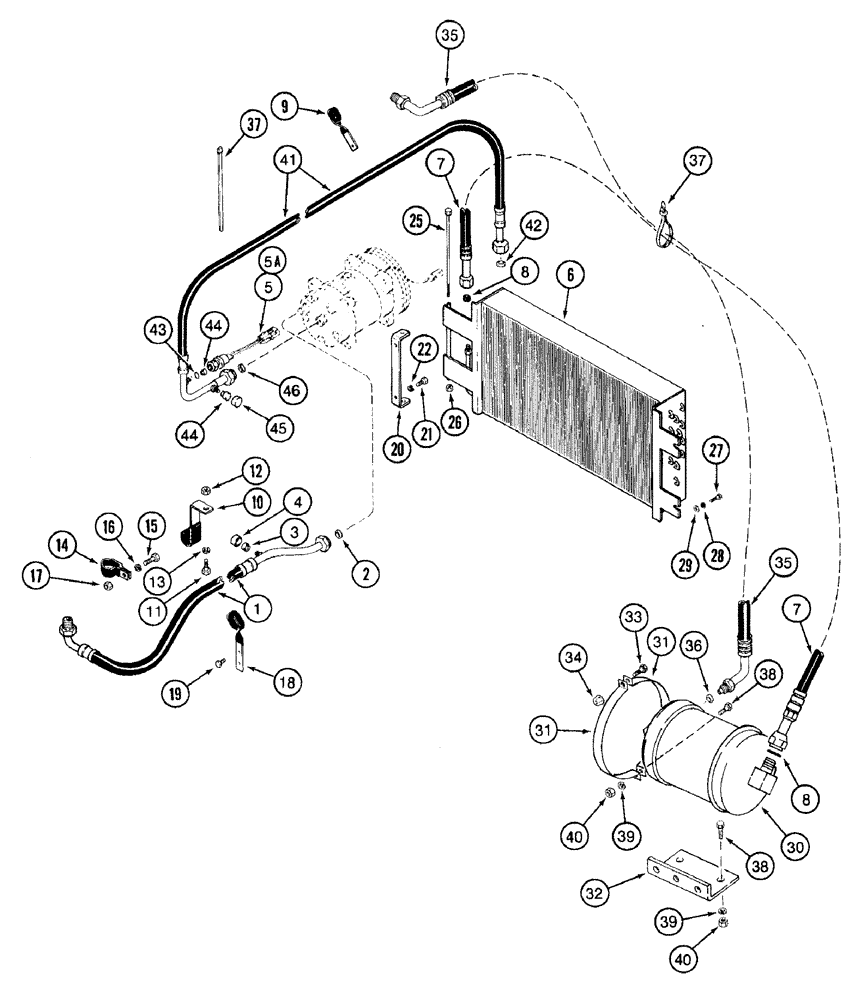

Запчасти Case IH 7220 (9-136) - AIR CONDITIONING, CONDENSER AND RECEIVER-DRIER, PRIOR TO TRACTOR P.I.N. JJA0064978 (09) - CHASSIS/ATTACHMENTS

1

1999922C1

HOSE

1650 mm (65 inch) long, suction, compressor to cab base

1шт.

2

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide, at compressor

1шт.

3

1250594C1

CORE

VALVE

1шт.

4

122553A1

CAP

sealing

1шт.

5

1999925C1

INDICATOR

SWITCH - high pressure, 375 PSI, used in production, for service order 232948A1 400 PSI switch

1шт.

5a

232948A1

SWITCH, A/C HIGH PRE

400 psi

1шт.

6

A184700

CONDENSER

air conditioning

1шт.

7

131250A2

HOSE

750 mm (29-17/32 inch) long, Serial Range: condenser-receiver-drier

1шт.

8

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

2шт.

9

1954474C4

SHIN

CLAMP - retaining

1шт.

10

1954473C3

CLAMP

retaining

1шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

12

825-1410

NUT,M10, Cl 8

1шт.

13

892-11010

LOCK WASHER,M10

1шт.

14

1954490C2

CLAMP

retaining

1шт.

15

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

1шт.

18

1954766C2

CLAMP

retaining

1шт.

19

30931R1

SELF-TAP SCREW,Flat Hd, M6 x 13

special, 6 x 12 mm

2шт.

20

A141489

SUPPORT

BRACKET - pivot, condenser

1шт.

21

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

22

492-11031

LOCK WASHER,5/16"

2шт.

25

117-2

SQUARE BOLT,1/4" - 20 x 8 1/2", Gr 2

BOLT - square head, 1/4 NC x 8-1/2 inch, grade 2

1шт.

26

231-1444

NUT,1/4"-20, GB

1шт.

27

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

28

492-11031

LOCK WASHER,5/16"

2шт.

29

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

30

1990758C2

RECEIVER-DRYER

air conditioning

1шт.

31

98178C1

SUPPORT

BRACKET - receiver-drier

4шт.

32

1960785C2

SUPPORT

BRACKET - receiver-drier mounting

2шт.

33

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

If used

2шт.

34

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

35

131249A2

HOSE

2800 mm (110-1/4 inch) long, Serial Range: receiver-drier-cab

1шт.

36

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

38

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

39

892-11008

LOCK WASHER,8mm ID

4шт.

40

825-1408

NUT,M8, Cl 8

4шт.

41

1999923C2

HOSE

1100 mm (43-5/16 inch) long, discharge, Serial Range: compressor-condenser

1шт.

42

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16 inch wide, at condenser

1шт.

43

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide, at pressure switch fitting

1шт.

44

1250594C1

CORE

VALVE

2шт.

45

122554A1

CAP

Sealing, charge port

1шт.

46

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide, at compressor

1шт.
