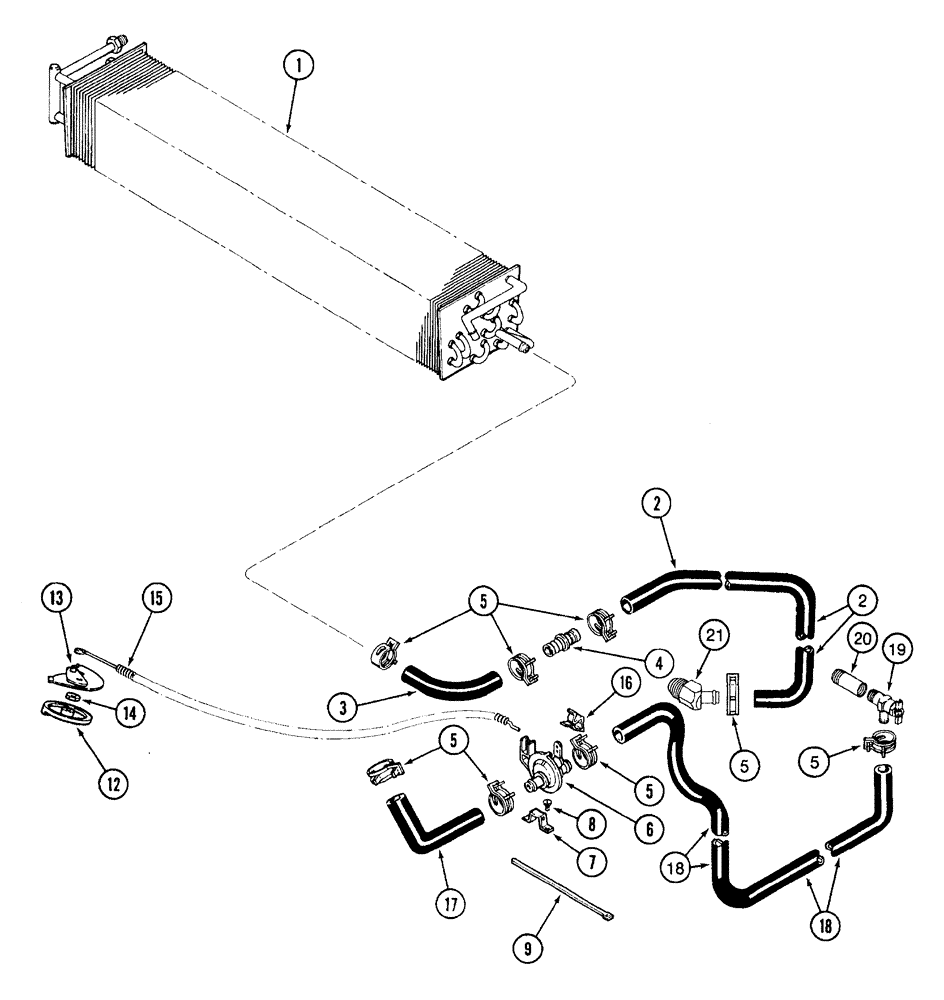

Запчасти Case IH 7220 (9-132) - CAB, HEATER (09) - CHASSIS/ATTACHMENTS

1

1990757C1

EVAPORATOR

ASSEMBLY - air conditioning and heater, see fig. 9-134 for valve and seals

1шт.

2

1954493C1

HEATER HOSE,15.50 mm ID x 3500.00 mm

Cut from 97252CX bulk hose, Heater supply

1шт.

3

96880C2

HEATER HOSE,15.50 mm ID x 131.00 mm

Core inlet, Replaces 96881C2 hose

1шт.

4

1301342C1

FITTING

ADAPTER - straight, special

1шт.

5

1954736C1

HOSE CLAMP,#24

Adjustable

8шт.

6

1331087C1

HEATER VALVE

control, heater

1шт.

7

97116C1

BRACKET

SUPPORT - heater valve

1шт.

8

260-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

Phillips

2шт.

9

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

2шт.

12

96893C1

KNOB

control

1шт.

13

96879C1

LEVER

heater control

1шт.

14

109311H

JAM NUT

hex, jam, 7/16-28 NF

1шт.

15

96877C2

CABLE PULLING GRIP

CABLE - heater control

1шт.

16

1954626C1

SPRING CLIP

CLIP - retaining

1шт.

17

96880C2

HEATER HOSE,15.50 mm ID x 131.00 mm

Core to valve

1шт.

18

1954494C1

HEATER HOSE,15.50 mm ID x 4267.00 mm

Cut from 97252CX bulk hose, Return

1шт.

19

107107A1

SHUT-OFF VALVE

water shutoff, right-hand side

1шт.

20

105581A1

COUPLING

CONNECTOR BUSHING - pipe reducer, 1/2 x 3/8 inch

1шт.

21

1348531C1

ADAPTER

ELBOW - 45 degree, 1/2 NPT x 5/8 inch hose, left-hand side

1шт.

97252CX

HOSE

bulk, 16 (5/8) x 25 (1) x 15240 mm (600 inch) long

1шт.
