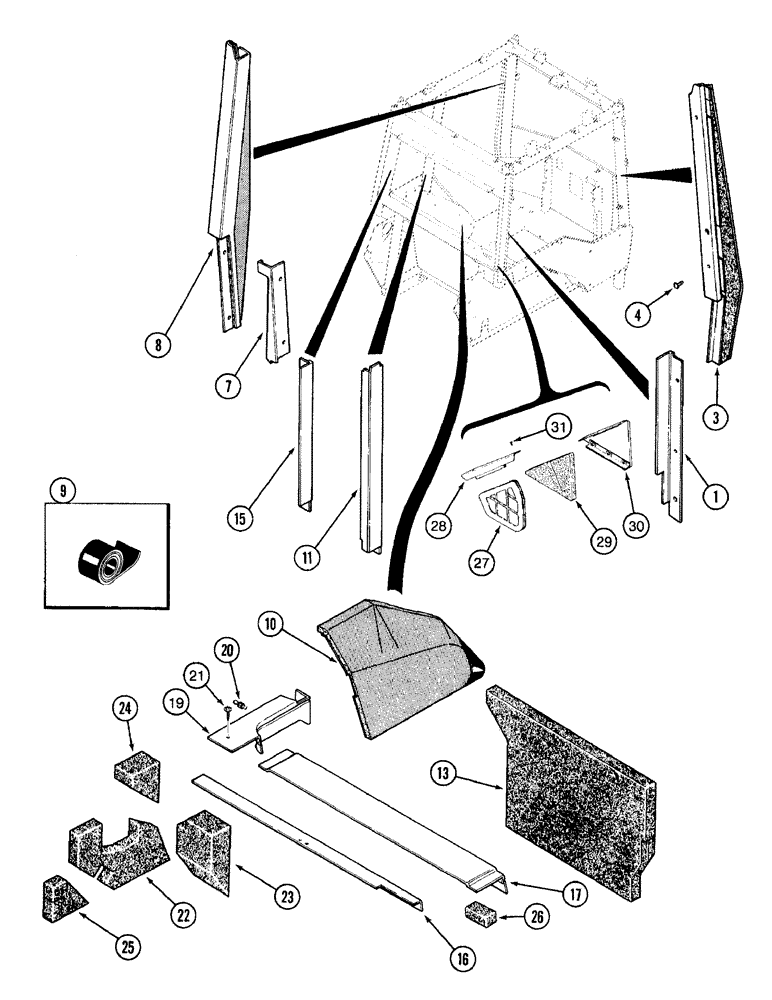

Запчасти Case IH 7220 (9-126) - CAB, PANELS AND ACOUSTICAL COVERS (09) - CHASSIS/ATTACHMENTS

1

1999971C3

PADDING

COVER - rear cab post, right side

1шт.

3

1999972C1

PADDING

COVER - front cab post, right side

1шт.

4

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

self-tapping, truss head, No. 10-16 x 3/4 inch, black

1шт.

4

1990951C1

CAPTIVE WASHER SCREW,Phillips Drive, Pan HD, #10 - 16 x 9/16"

Phillips washer, No. 10-16 x 5/8 inch (Gray)

1шт.

7

96720C2

COVER ASSY

front cab post, left side lower

1шт.

8

96719C3

COVER ASSY

front cab post, left side upper

1шт.

9

NSS

NOT SOLD SEPARAT

TAPE - acylic foam, order 1987208C2 and cut to required length

1шт.

10

96717C4

COVER ASSY

fender crown

1шт.

11

96716C1

COVER ASSY

center cab post

1шт.

13

1990584C1

COVER ASSY

rear cab panel, if equipped

1шт.

15

96735C2

COVER ASSY

rear cab post left side

1шт.

16

1999998C1

COVER ASSY

rear sill lower

1шт.

17

97227C2

PANEL ASSY.

trim, cab middle

1шт.

1968056C2

DECAL

Warning, avoid injury or death, before starting engine, see fig.9-150 for decal

1шт.

19

96715C2

PANEL ASSY.

rear corner left side trim

1шт.

20

1958720C1

STUD

ball, external thread

1шт.

21

1990952C1

CAPTIVE WASHER SCREW,Phillips Drive, Pan HD, M16 x 1 x 25.4mm

Phillips washer, No. 10-16 x 1 inch (Gray)

2шт.

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

22

1977665C1

PAD

console fender, right

1шт.

23

1977664C1

PAD

fender, front top, right

1шт.

24

1977916C1

PAD

fender, center, right

1шт.

25

1977918C2

PAD

INSULATOR - fender, lower rear, right

1шт.

26

1344390C1

PANEL

PAD - rear trim panel, right

1шт.

27

123346A2

SEAL

grommet, rear access panel

1шт.

28

123081A1

ANGLE

mounting

1шт.

29

112332A1

INSULATION

access panel

1шт.

30

1999999C2

PANEL

COVER - Velcro hinged, cab access panel

1шт.

31

261-1456

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

2шт.

1987208C2

ROLL

TAPE - foam, 25.4 (1) x 15240 mm (600 inch) long

1шт.
