(9-114) - CAB, DOOR RETAINING PARTS

Запчасти Case IH 7220 (9-114) - CAB, DOOR RETAINING PARTS (09) - CHASSIS/ATTACHMENTS

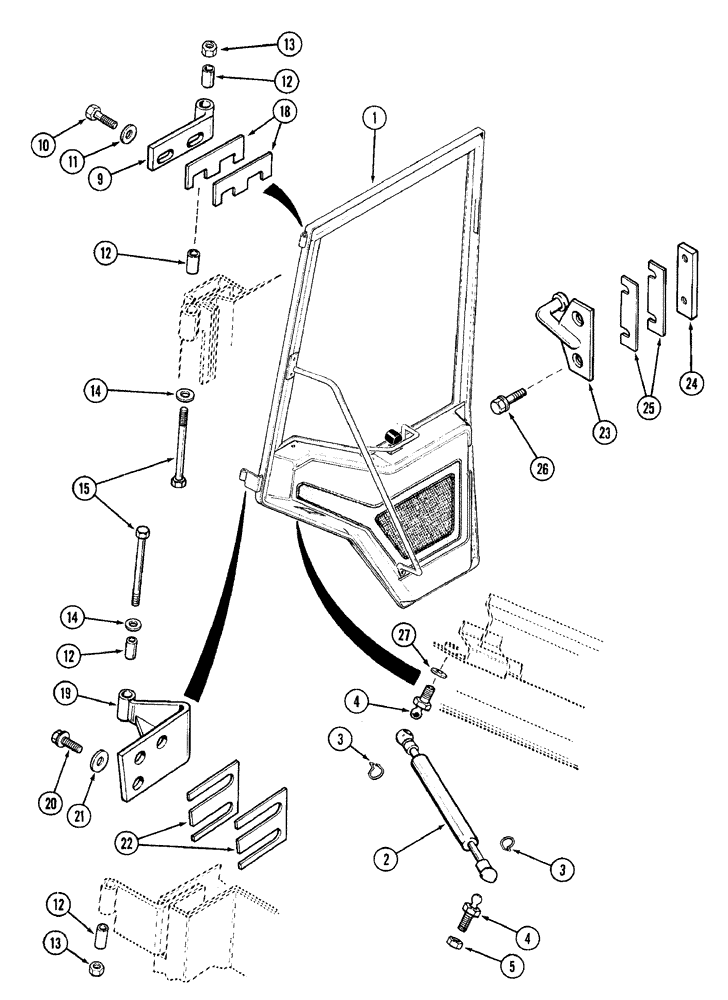

Схема запчастей Case IH 7220 - (9-114) - CAB, DOOR RETAINING PARTS (09) - CHASSIS/ATTACHMENTS
5
2
10
4
22
25
3
12
11
18
20
1
3
12
9
12
23
12
14
26
21
24
15
13
27
4
19
13
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1343890C2

DOOR

FRAME - cab door, see fig. 9-112, item 40 for panel

1шт.

Includes: REF 1, 9, 12 thru 15, 19 & 27, plus one each of items 3 and 4 are included in A67967 door assembly on Figure 9-112.

1шт.

2

1280263C1

CYLINDER ASSY.

door

1шт.

3

3233348R1

CLIP

retaining

2шт.

4

3234063R1

BALL STUD,M10 x 1.5

STUD - ball, 1-9/32 inch long, if used

2шт.

4

142597A1

STUD

ball, 1-17/32 inch long, if used

2шт.

5

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

9

96627C2

HINGE

door, upper

1шт.

Includes: REF 1, 9, 12 thru 15, 19 & 27, plus one each of items 3 and 4 are included in A67967 door assembly on Figure 9-112.

1шт.

10

121-116

SERRATED BOLT,Hex, 5/16" - 18 x 1"

2шт.

11

195-81005

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

12

231800A1

BUSHING,7.96mm ID x 9.51mm OD x 16.63mm L

hinge, replaces 96676C2 bushing

4шт.

Includes: REF 1, 9, 12 thru 15, 19 & 27, plus one each of items 3 and 4 are included in A67967 door assembly on Figure 9-112.

1шт.

13

231-4115

NUT,5/16"-18, GB

2шт.

Includes: REF 1, 9, 12 thru 15, 19 & 27, plus one each of items 3 and 4 are included in A67967 door assembly on Figure 9-112.

1шт.

14

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

Includes: REF 1, 9, 12 thru 15, 19 & 27, plus one each of items 3 and 4 are included in A67967 door assembly on Figure 9-112.

1шт.

15

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

Includes: REF 1, 9, 12 thru 15, 19 & 27, plus one each of items 3 and 4 are included in A67967 door assembly on Figure 9-112.

1шт.

18

97060C1

SHIM

hinge, upper

1шт.

19

96623C2

HINGE

door, lower

1шт.

Includes: REF 1, 9, 12 thru 15, 19 & 27, plus one each of items 3 and 4 are included in A67967 door assembly on Figure 9-112.

1шт.

20

121-116

SERRATED BOLT,Hex, 5/16" - 18 x 1"

3шт.

21

195-81005

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

3шт.

22

97061C1

SHIM

hinge, lower

1шт.

23

1283245C3

PLATE ASSY.

striker

1шт.

24

1283244C1

PLATE ASSY.

tapping

1шт.

25

1283255C1

SHIM

striker, if used

1шт.

26

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

27

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

1шт.

Includes: REF 1, 9, 12 thru 15, 19 & 27, plus one each of items 3 and 4 are included in A67967 door assembly on Figure 9-112.

1шт.
