Запчасти Case IH 7220 (9-112) - CAB, DOOR AND LATCH (09) - CHASSIS/ATTACHMENTS

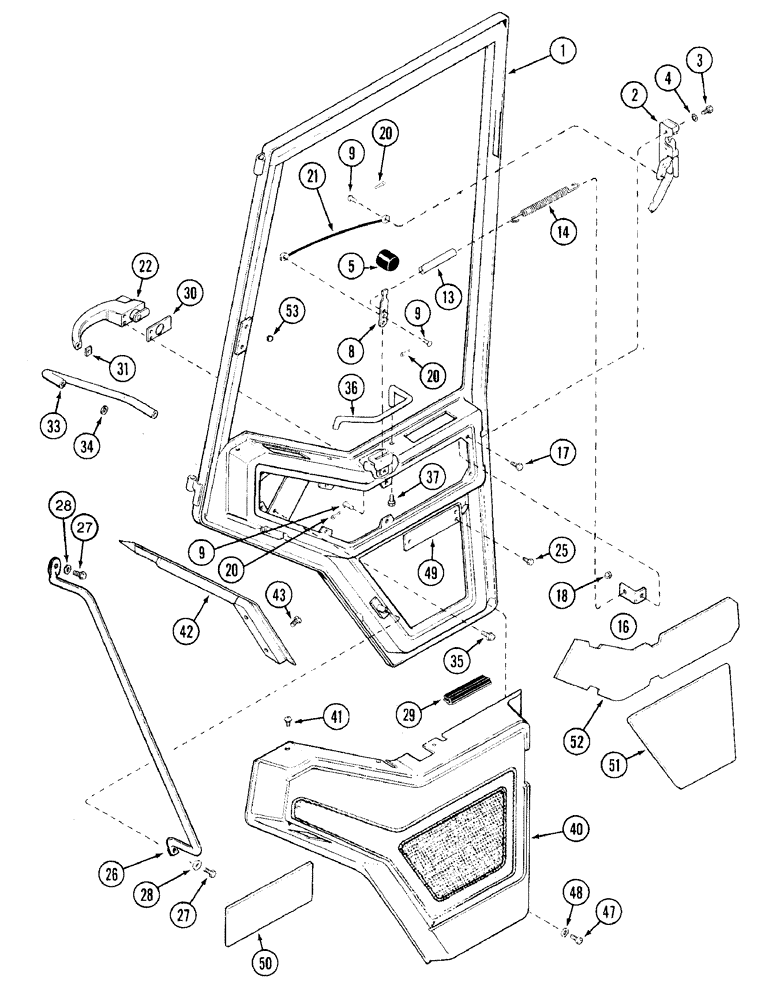

Схема запчастей Case IH 7220 - (9-112) - CAB, DOOR AND LATCH (09) - CHASSIS/ATTACHMENTS
48
13
30
8
5
18
33
53
31
35
21
28
36
4
29
49
17
20
37
3
42
28
26
27
16
9
25
9
51
40
43
9
34
20
22
2
27
47
14
1
52
20
50
41

Артикул

Название

Примечание

Количество

A67967

DOOR ASSY.

trimmed, includes items 1-53 below, plus items 1, 9, 12-15, 19 and 27, plus one of each of items 3 and 4 on fig. 9-114, and door glass on 9-122

1шт.

1

1343890C2

DOOR

FRAME - cab door

1шт.

2

1977941C2

LATCH ASSY.

door, rotary

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

4

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

3шт.

5

A177435

BALL KNOB

lever

1шт.

8

97112C3

ARM

latch, door

1шт.

9

439-148

HEADED PIN,6.35mm OD x 12.7mm L

Grade 2, mounting, arm

3шт.

13

1974835C1

TUBE

HOSE - spring damper

1шт.

14

97057C2

TENSION SPRING

handle

1шт.

16

97218C1

BRACKET

mounting, spring

1шт.

17

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

18

425-104

NUT,1/4"-20, Cl 5

1шт.

20

432-88

COTTER PIN,1/8" x 1/2"

3шт.

21

1340019C3

CABLE,293.6mm L

door, replaces 1340019C2 cable

1шт.

22

1340149C2

HANDLE

door, outer

1шт.

A77313

SET OF 2 KEYS

door lock, not included with door assembly, purchase separately

1шт.

25

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

3шт.

26

1987149C1

HANDLE

grab, door

1шт.

27

1330156C1

LOCK BOLT,Hex Flg, 5/16" - 18 x 3/4"

self-locking, hex flange, special, 5/16 NC x 3/4 inch

2шт.

28

195-81005

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

29

1990761C2

DOOR SEAL

4483 mm (176 - 1/2 inch) long, door, replaces 1990761C1 seal

1шт.

30

1974873C1

WASHER

GASKET - handle, door, large

1шт.

31

1974872C1

WASHER

GASKET - handle, door, small

1шт.

33

96840C1

HANDLE

grab

1шт.

34

1283589C2

RUBBER WASHER

PAD - mounting, handle

2шт.

35

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Replaces 1330156C1 bolt

2шт.

36

1283690C1

ROD

guard, handle

1шт.

37

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

2шт.

40

97082C6

PANEL ASSY.

door

1шт.

41

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

self-tapping, truss head, No. 10-16 x 3/4 inch, polyseal, black

2шт.

41

1990951C1

CAPTIVE WASHER SCREW,Phillips Drive, Pan HD, #10 - 16 x 9/16"

Phillips washer, No. 10-16 x 5/8 inch (Gray)

2шт.

42

96736C2

PANEL ASSY.

trim, door

1шт.

43

97207C1

SELF-TAP SCREW,#10 - 24 x 3/4"

self-tapping, No. 10-24 x 3/4 inch (Black)

3шт.

43

1990953C1

SELF-TAP SCREW

Phillips washer, No. 10-24 x 1 inch (Gray)

3шт.

47

118071C2

SCREW,Phillips Drive, Truss HD, #8 - 18 x 1/2"

pan Phillips, self-tapping, No. 8 NC x 1/2 inch

1шт.

48

495-21019

WASHER,#8

1шт.

49

1283695C1

STIFFENER

REINFORCEMENT - door handle

1шт.

50

1977459C1

INSULATOR

SHEET - vibration dampening, 100 x 254 mm

3шт.

51

1977657C1

LINING

PAD - door, lower

1шт.

52

1977658C1

LINING

PAD - door, upper

1шт.

53

179093

HOLE PLUG BUTTON,9/32"

1шт.

54

1975713C1

FASTENER

velcro, 1-1/2 x 1 inch, if used, not shown

4шт.

Выбрано товаров: 43
