Запчасти Case IH 7220 (9-110) - CAB, ROOF CAP (09) - CHASSIS/ATTACHMENTS

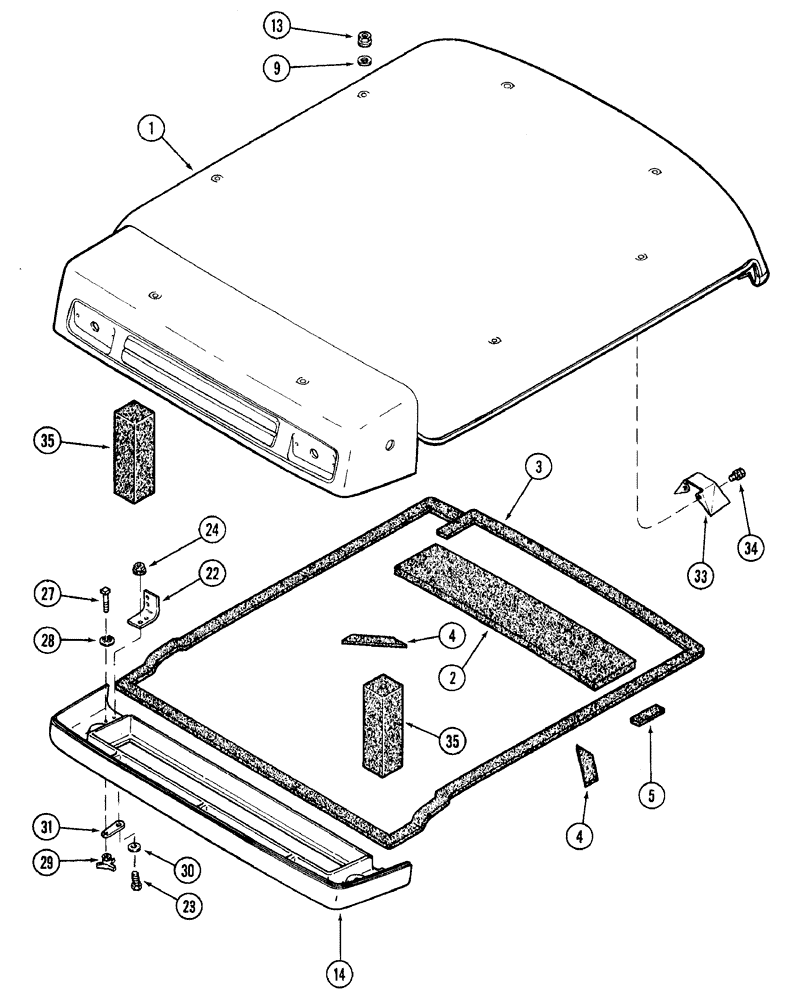

Схема запчастей Case IH 7220 - (9-110) - CAB, ROOF CAP (09) - CHASSIS/ATTACHMENTS
22
14
27
35
33
9
1
2
3
5
28
31
34
13
29
23
24
4
30
4
35

Артикул

Название

Примечание

Количество

1

96755C6

ROOF

cab

1шт.

2

98355C1

FOAM INSULATION

SEAL - roof, 810 mm (31-7/8 inch) long

1шт.

3

98356C1

SEALING STRIP

5100 mm (200-7/8 inch), cut from 1974883CX bulk seal

1шт.

4

98358C1

SEALING STRIP

SEAL - 210 mm (8-17/64 inch) long, cut from 1974883CX bulk seal

2шт.

5

98359C1

SEALING STRIP

SEAL - 100 mm (3-16/16 inch) long, cut from 1974883CX bulk seal

1шт.

9

96814C3

WASHER,10mm ID x 22.25mm OD x 2.25mm Thk

flat, special, sector arm

8шт.

13

1330157C1

FLANGE NUT

self-locking, hex flange, special, 1/4 inch NC

8шт.

14

97029C3

COVER ASSY

support

1шт.

22

1981897C1

HINGE

cover, support

2шт.

23

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

24

231-1444

NUT,1/4"-20, GB

8шт.

27

417-440

BOLT,Sq Hd, 1/4" - 20 x 2-1/2", Gr 2

2шт.

28

1971364C1

RETAINER

bolt

2шт.

29

1340216C1

BUTTON

KNOB - retaining, cover

2шт.

30

195-81032

WASHER,.266" x 13/16" x .083"

12шт.

31

1340093C2

LARGE PLATE

PLATE, LARGE STRAP - knob retaining

2шт.

33

1975760C2

COVER

wiper arm

1шт.

34

414-410

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

Polyseal

2шт.

35

1977988C1

FOAM

PAD - foam, filler (Anti-bird)

6шт.

1974883CX

SEAL

bulk, adhesive-backed, 13 (1/2) x 38 (1-1/2) x 15240 mm (600 inch) long

1шт.

Выбрано товаров: 20
